Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Yula
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 30 m² (323 ft²)
Orientation: Vertical
Tube Pitch: 3/16" (2)316SS dished heads
Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 121.1 °C (250 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 316. Length: 1,350 mm (54 in). Tube Number: 440. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 54 mm (2.1 in). Tube Thickness: 1.6 mm (0.06 in). Nozzle Schedule: Openings include: Shell - (2) 1.5"; Tube Side -Bottom head, 3" side bottom & 3" center bottom, Top has an 8" center nozzle with 90 degrees elbow..

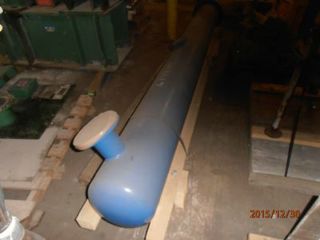

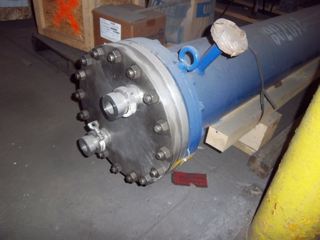

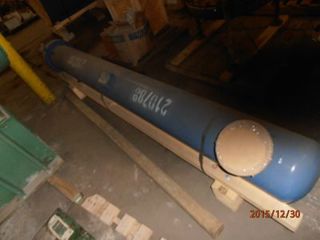

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Yula

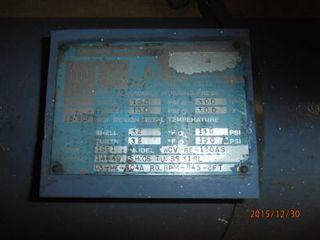

Model: CV-20-120AS
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 6.4 m² (69 ft²)
Orientation: Horizontal
MDMT is 40 psi @ 190 Degrees F for the shell and 40 @ 150 Degrees F.
Shell Pressure: 13.1 bar (190 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Length: 2,600 mm (102 in). Tube Type: U-Tube. Nozzle Schedule: Shell Openings: One 4" and three 1" - Tube Openings: Two 2" sanitary pipe connections..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Yula
Model: WC-4C-96BS
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 5.2 m² (56 ft²)
Orientation: Horizontal
heat exchanger with expansion joint. Shell and tubes MDMT are rated for 32 degrees F at 150 psi. Heads are on hinges for ease of cleaning.
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 2,850 mm (113 in). Tube Type: Straight Tube. Tube Number: 36. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,400 mm (95 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Nozzles on heads and shell are 2" with four 1" vent & drains.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Titan Metal Fabricators
Model: HACS-200-24-4-204 BKUH
Condition: Used
Material: Hastelloy - C22
Heat Transfer Surface Area: 17.9 m² (193 ft²)
Orientation: Horizontal
kettle type reboiler U tube bundle is 12" diameter x 16' 11" straight side. 403 " long total length around the bend (1) CS bolted dished head for tube bundle Carbon Steel Kettle type re-boiler shell 280" over all length.
Shell Pressure: 9.7 bar (140 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 8.3 bar (120 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 610 mm (24 in). Head Material: Carbon Steel. Length: 6,250 mm (247 in). Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,150 mm (203 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Tube side - (1) 3" inlet, (1) 1" outlet; Shell side - (1) 6" inlet, (1) 8" vapor outlet, (1) 2" liquid outlet.
