17.9 m² (193 ft²) Hastelloy - C22 Shell and Tube Heat Exchanger For Sale IPP# 225577

IPP# 225577, 17.9 m² (193 ft²) Hastelloy - C22 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Hastelloy - C22

Manufacturer:

Titan Metal Fabricators

Heat Transfer Surface Area:

17.9 m² (193 ft²)

Orientation:

Horizontal

Shell Pressure:

9.7 bar (140 psi)

Shell Temperature:

232.2 °C (450 °F)

Shell Material:

Carbon Steel

Tube Pressure:

8.3 bar (120 psi)

Tube Temperature:

232.2 °C (450 °F)

Tube Material:

Hastelloy - C276

Tubesheet Material:

Hastelloy - C276

Shell Diameter:

609.6 mm (24 in)

Head Material:

Carbon Steel

Length:

6,274 mm (247 in)

Tube Type:

U-Tube

Tube Number:

Tube Diameter:

25.4 mm (1 in)

Tube Length:

5,156 mm (203 in)

Tube Thickness:

2 mm (0.08 in)

Nozzle Schedule:

Openings: Tube side - (1) 3" inlet, (1) 1" outlet; Shell side - (1) 6" inlet, (1) 8" vapor outlet, (1) 2" liquid outlet

Additional Info:

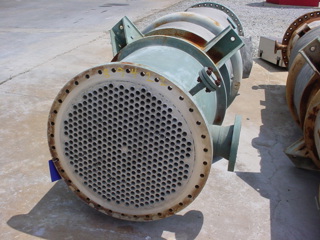

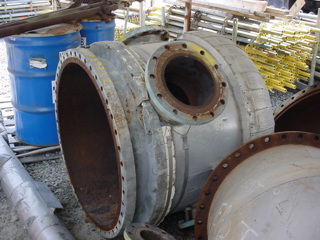

kettle type reboiler U tube bundle is 12" diameter x 16' 11" straight side. 403 " long total length around the bend (1) CS bolted dished head for tube bundle Carbon Steel Kettle type re-boiler shell 280" over all length.
