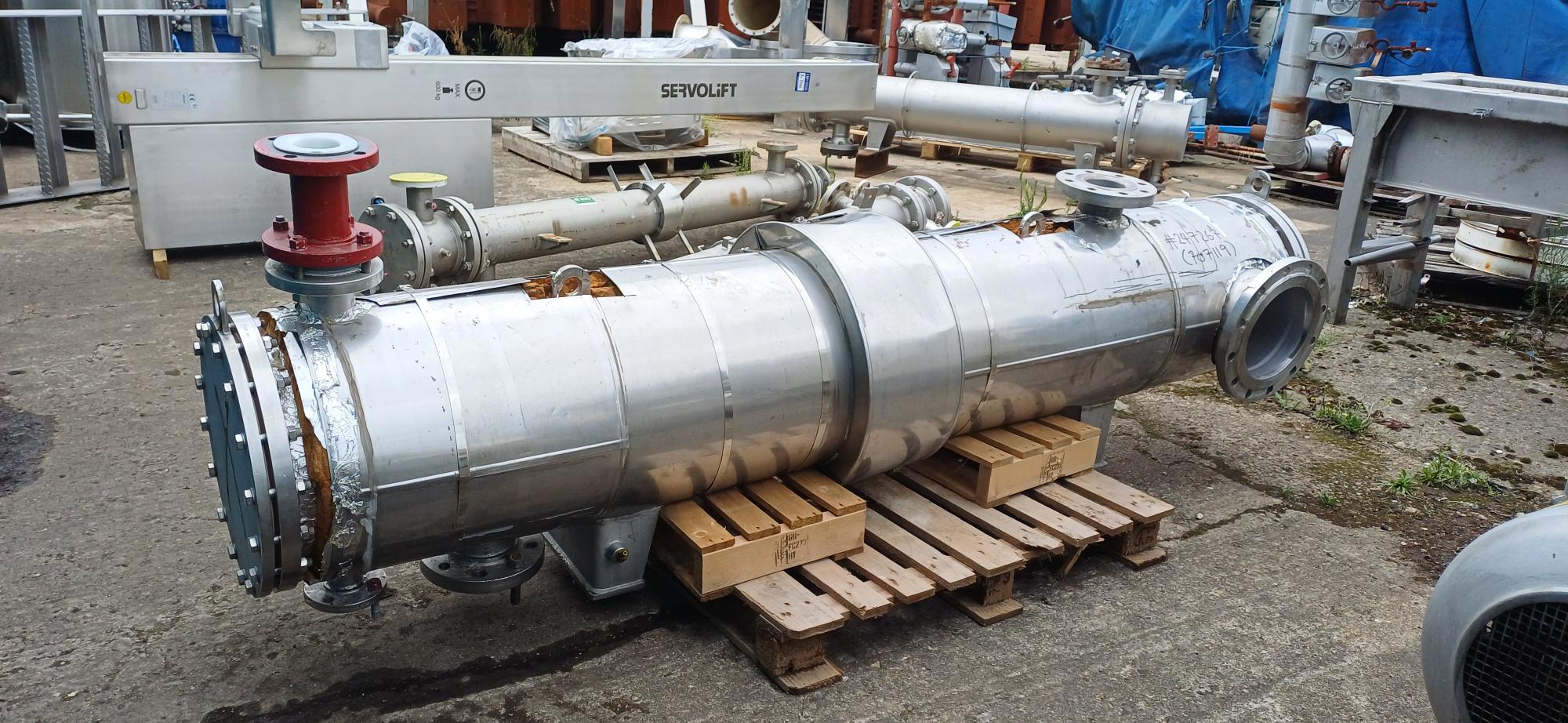

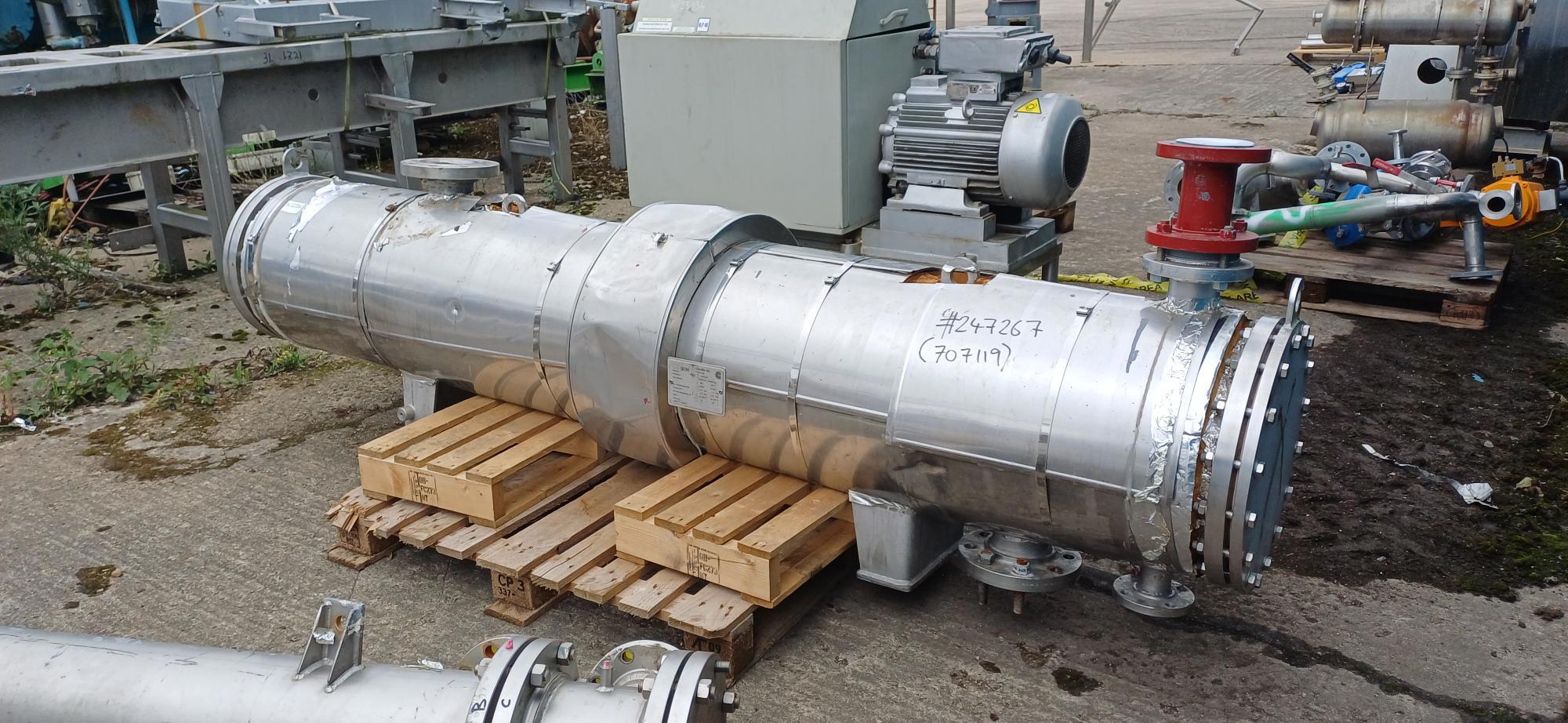

Hastelloy C22 Calorifier Shell and Tube Heat Exchanger - IPP# 247267

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CALORIFER AG

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 21.6 m² (232.5 ft²)

Shell Pressure: 0.15 bar (2.2 psi)

Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Nozzle Schedule: - Openings (tube side): (1) DN15, (3) DN 25 - Openings (shell side): (2) DN 900. Capacity: 126 L (33.3 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CALORIFER AG

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 76 m² (818.1 ft²)

Shell Material: Stainless Steel 321

shell heater bank (calorifier) design pressure jacket 0,15 bar @ 250 degrees C design pressure tubeside 25 bar @ 250 degrees C, volume 260 liter, with welded on top and bottom cone section

Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Tube Number: 910. Tube Diameter: 14.5 mm (0.57 in). Tube Length: 1,972 mm (77.6 in). Nozzle Schedule: - Tube openings tubeside: (3) 25mm, (1) 15mm. Capacity: 260 L (68.7 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Model: WC-1AA-72BS

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 0.74 m² (8 ft²)

Orientation: Horizontal

• Features: Expansion joint, single pass

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Hastelloy - C22. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C22. Head Material: Carbon Steel. Length: 2,286 mm (90 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 7. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,829 mm (72 in). Tube Thickness: 19.1 mm (0.75 in). Nozzle Schedule: - Nozzle Sizes: Four 1" shell nozzles, two 2" tube nozzles, two 1" vent and drains.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Titan Metal Fabricators

Model: HACS-200-24-4-204 BKUH

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 17.9 m² (193 ft²)

Orientation: Horizontal

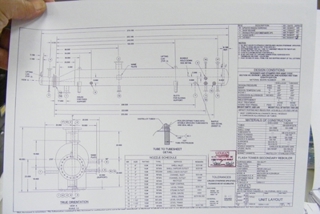

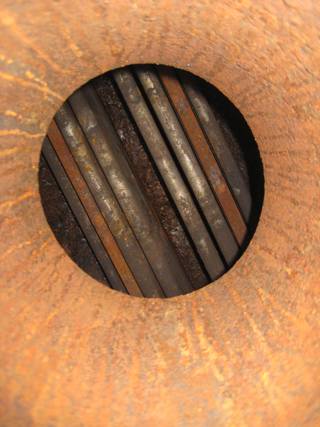

kettle type reboiler U tube bundle is 12" diameter x 16' 11" straight side. 403 " long total length around the bend (1) CS bolted dished head for tube bundle Carbon Steel Kettle type re-boiler shell 280" over all length.

Shell Pressure: 9.7 bar (140 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 8.3 bar (120 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 6,274 mm (247 in). Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,156 mm (203 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Tube side - (1) 3" inlet, (1) 1" outlet; Shell side - (1) 6" inlet, (1) 8" vapor outlet, (1) 2" liquid outlet.
