21.6 m² (232.5 ft²) Stainless Steel 321 Shell and Tube Heat Exchanger For Sale - IPP# 217579

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CALORIFER AG

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 76 m² (818.1 ft²)

Shell Material: Stainless Steel 321

shell heater bank (calorifier) design pressure jacket 0,15 bar @ 250 degrees C design pressure tubeside 25 bar @ 250 degrees C, volume 260 liter, with welded on top and bottom cone section

Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Tube Number: 910. Tube Diameter: 14.5 mm (0.57 in). Tube Length: 1,972 mm (77.6 in). Nozzle Schedule: - Tube openings tubeside: (3) 25mm, (1) 15mm. Capacity: 260 L (68.7 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 5.6 m² (60 ft²)

Orientation: Horizontal

Repair company: Carbide Shell and Tube (Ponce, PR)3 Shell side has a 4" inlet and a 2" outlet. Tube side has 2" inlets and outlets.

Shell Material: Carbon Steel. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,778 mm (70 in).

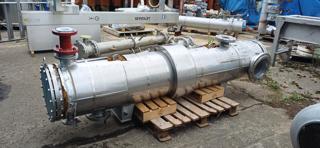

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 58 m² (624.3 ft²)

Orientation: Vertical

(1) 321 (1.4541) stainless steel head

Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,090 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: SMS Butzbach/Germany

Condition: Used

Material: Stainless Steel 321

Heat Transfer Surface Area: 137 m² (1,475 ft²)

Orientation: Vertical

carbon steel heads pressure tubeside 6 bar @ 120 deg C (755 liter), shell vacuum/0.5 @ 120 deg C (1890 liter) (1) 321 (1.4541) stainless steel dished head

Shell Pressure: 0.5 bar (7.3 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 6 bar (87 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,400 mm (252 in). Tube Type: U-Tube. Tube Number: 184. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tube side: dished head with 2-100mm, shell: 1-400mm, 1-150mm, 1-32mm.
