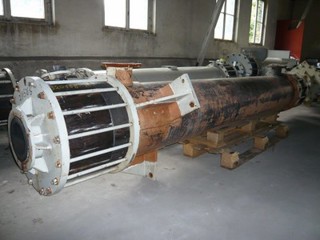

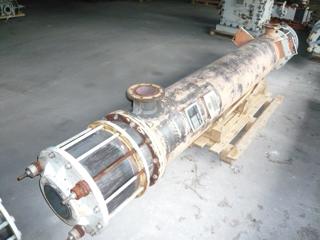

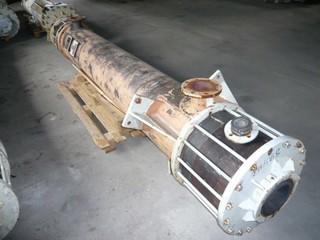

IPP# 211569, 10 m² (107.6 ft²) Graphite Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Graphite

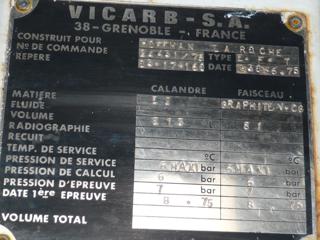

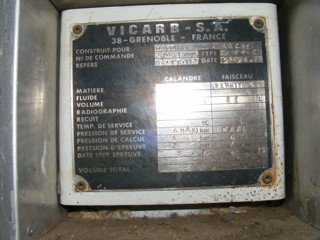

Manufacturer:
VICARB
Heat Transfer Surface Area:
10 m² (107.6 ft²)
Orientation:
Vertical
Shell Pressure:
6 bar (87 psi)
Shell Temperature:
165 °C (329 °F)
Shell Material:
Carbon Steel
Tube Pressure:
6 bar (87 psi)
Tube Temperature:
165 °C (329 °F)
Tube Material:
Graphite
Shell Diameter:
420 mm (16.5 in)
Length:
3,741 mm (147.3 in)
Tube Number:
50
Tube Diameter:
32 mm (1.26 in)
Tube Length:
2,985 mm (117.5 in)
Tube Thickness:
12 mm (0.47 in)
Nozzle Schedule:
- Opening sizes: Tube side - (2) 150mm; Shell - (2) 100mm, (1) 40mm
Additional Info:
Shell volume: 213 liters
Tube volume: 8 liters
Tube dimensions: 20/32mm diameter x 2985mm length
Total weight: 855kg
