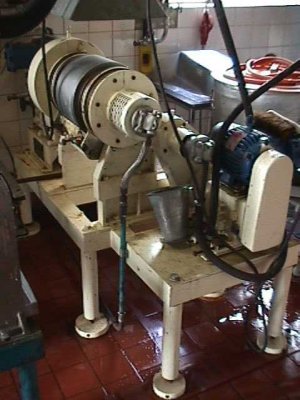

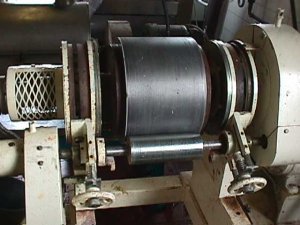

Dryer-Flaker Drum and Belt R.Simon Dryers Stearine acid Stainless Steel 316 - IPP# 215236

Type: Dryer-Flaker Drum and Belt

Manufacturer: R.Simon Dryers

Condition: Used

Flaker Width: 300 mm (11.8 in)

Area of Flaker: 1 m² (10.8 ft²)

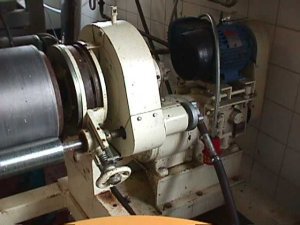

face chrome plated single drum flaker/dryer
Drum working pressure 5.5 bar, speed 3 to 21 rpm,
cored for steam/hot oil heating

Orientation: Horizontal.

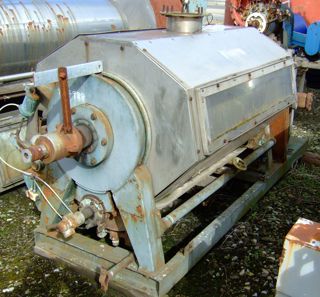

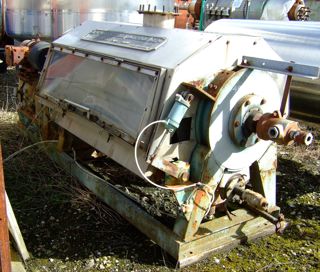

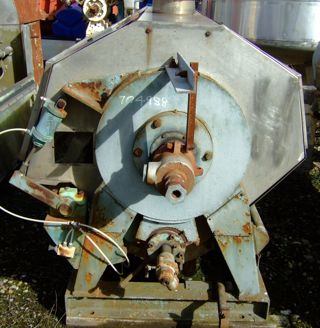

Type: Dryer-Flaker Drum and Belt

Manufacturer: APV Mitchell

Condition: Used

Material: Stainless Steel 316

Flaker Width: 600 mm (23.6 in)

Area of Flaker: 2.82 m² (30.4 ft²)

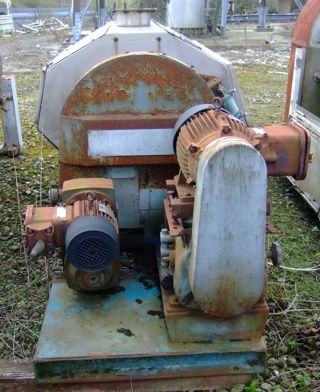

drum flaker/dryer
Single drum design
Drum and applicator roll cored for steam heating
Drum driven by Carter gearbox, Size MF14/100340
2.71 KW @ 960 rpm
belt driven by 3 KW, 3/50/415 volt, 700 rpm flameproof motor
Applicator roll driven by Croft varispeed drive
316 stainless steel knife discharge with pneumatic adjustment
316 stainless steel drip tray
with 316 stainless steel fume hood
Openings: hood (2) 52" x 14" plastic inspection doors, 1-8"; tray 3-1".

Orientation: Horizontal. Scraper: Yes. Scraper Details: 316 stainless steel knife discharge with pneumatic adjustment.

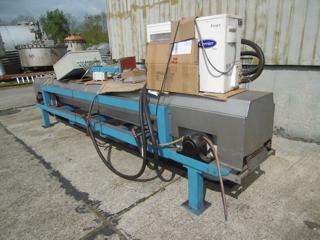

Type: Dryer-Flaker Drum and Belt

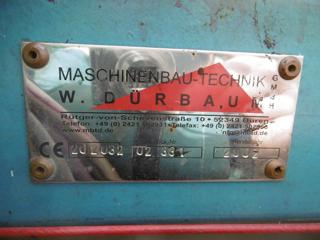

Manufacturer: Maschinenbau Technik

Model: SBA-300 x 4000

Condition: Used

Material: Stainless Steel 316

Flaker Width: 300 mm (11.8 in)

For Belt: Length of Flaker: 4,000 mm (157 in)

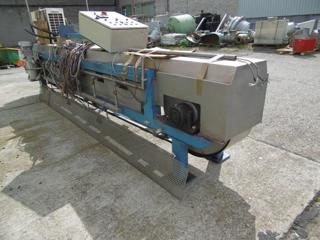

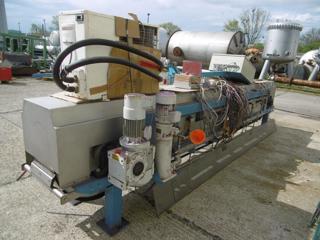

301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator
size 300 x 4000mm
fabrik #02.331
CE #2.02032, 321

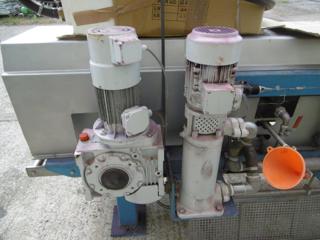

stainless steel belt is driven by a 2.2kw motor via a 1.35kw
316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles
mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning
15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray
(1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump

1. 60 liter electric heated reservoir/tank, (1) 2.4 m3/hour cooling water centrifugal pump, driven by 1.1kw, 3/50/230/400 volt, 2845 rpm motor
   brief overview:
   used for the solidification and cooling of melts, product is fed onto the water cooled belt by the Pastillator (drop former), the cooled and solidified product adheres easily to the cooled stainless steel belt and is scraped off by a manually adjustable scraper and then collected in suitable containers

Area of Flaker: 4 m² (43.1 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 1. Nozzles per Cooling Zone: 6. Scraper: Yes. Scraper Details: manually adjustable.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Gouda

Model: K5-5

Condition: Used

Material: Stainless Steel 316

Flaker Width: 508 mm (20 in)

Scraper: Yes

508mm diameter x 508mm face pilot size 316 stainless steel drum flaker
316 stainless steel jacketed feed pan with manual raise/lower mechanism
carbon steel knife with a copper replaceable blade and manual adjustment
304 stainless steel discharge chute, drum
openings: 2-40mm, feed pan openings: 2-25mm

Scraper Details: Carbon steel with copper replaceable blade and manual adjustment.
