IPP# 704988 - Dryer-Flaker Drum and Belt 600 mm (23.6 in) Stainless Steel 316 For Sale

Type: Dryer-Flaker Drum and Belt

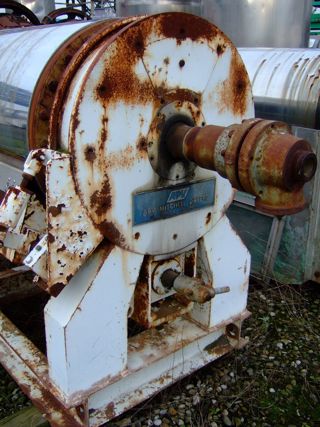

Manufacturer: APV Mitchell

Condition: Used

Flaker Width: 28 mm (1.1 in)

Area of Flaker: 26 m² (280 ft²)

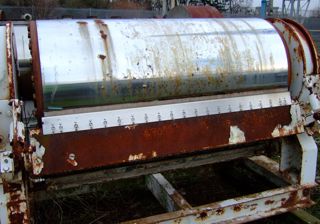

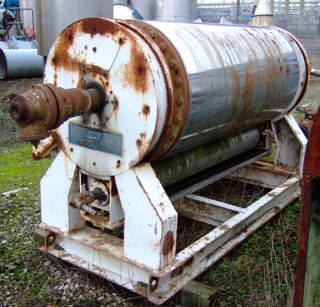

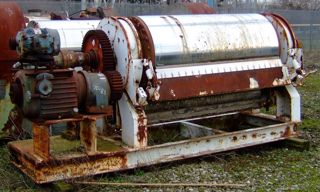

chrome plated single drum flaker
Drum pressure 0.42 bar

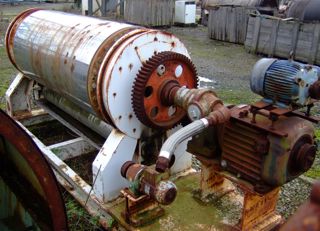

DC thyristor controlled varispeed drive. Roll speed 10-100 rpm. Heating low pressure steam system of 0.1 bar. Doctor manual adjustable knife made of carbon steel. Drum gear driven by 4 KW, 3/50/380 volt
1440 rpm flameproof motor
Drum speed 2-18 rpm. Drum and applicator roll cored for steam/cooling

Orientation: Horizontal. Scraper: Yes. Scraper Details: manual adjustable, made of carbon steel.

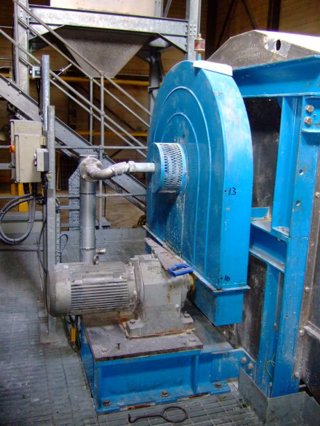

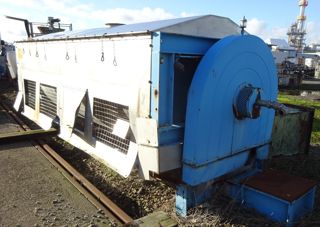

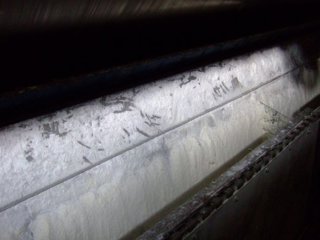

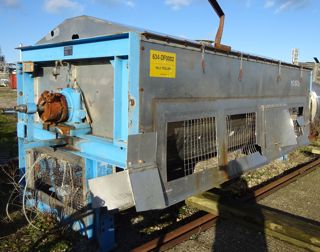

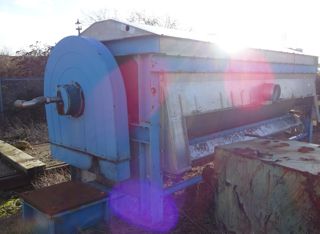

Type: Dryer-Flaker Drum and Belt

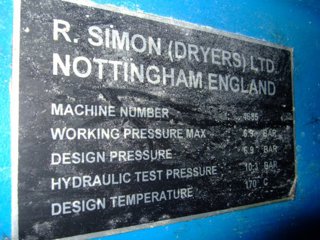

Manufacturer: R.Simon Dryers

Model: Stearine acid

Condition: Used

Material: Stainless Steel 316

Flaker Width: 1,538 mm (60.6 in)

Area of Flaker: 228 m² (2,454 ft²)

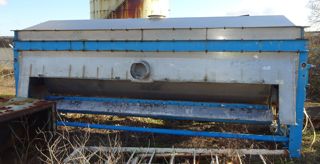

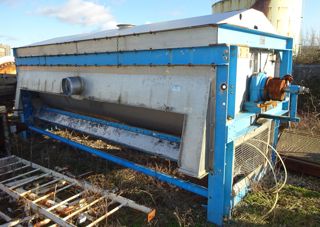

single drum flaker, with dip tray
working pressure 6.9 bar max, design pressure 6.9 bar @ 170 degrees C

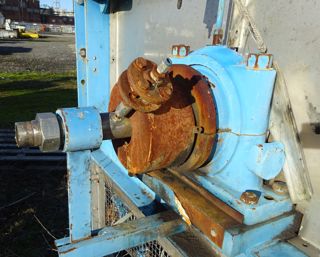

steam heated drum with rotary unions

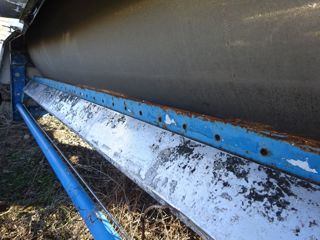

drum speed variable from 0.7 to 7 rpm, adjustable knife discharge with removeable plastic blades (missing)

Orientation: Horizontal.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Maschinenbau Technik

Model: SBA-300 x 4000

Condition: Used

Material: Stainless Steel 316

Flaker Width: 300 mm (11.8 in)

For Belt: Length of Flaker: 4,000 mm (157 in)

301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator
size 300 x 4000mm
fabrik #02.331
CE #2.02032, 321
stainless steel belt is driven by a 2.2kw motor via a 1.35kw
316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles
mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning
15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray
(1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump

1. 60 liter electric heated reservoir/tank, (1) 2.4 m3/hour cooling water centrifugal pump, driven by 1.1kw, 3/50/230/400 volt, 2845 rpm motor
   brief overview:
   used for the solidification and cooling of melts, product is fed onto the water cooled belt by the Pastillator (drop former), the cooled and solidified product adheres easily to the cooled stainless steel belt and is scraped off by a manually adjustable scraper and then collected in suitable containers

Area of Flaker: 4 m² (43.1 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 1. Nozzles per Cooling Zone: 6. Scraper: Yes. Scraper Details: manually adjustable.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Gouda

Model: K5-5

Condition: Used

Material: Stainless Steel 316

Flaker Width: 508 mm (20 in)

Scraper: Yes

508mm diameter x 508mm face pilot size 316 stainless steel drum flaker
316 stainless steel jacketed feed pan with manual raise/lower mechanism
carbon steel knife with a copper replaceable blade and manual adjustment
304 stainless steel discharge chute, drum
openings: 2-40mm, feed pan openings: 2-25mm

Scraper Details: Carbon steel with copper replaceable blade and manual adjustment.
