Stainless Steel 316 Dryer-Flaker Drum and Belt 508 mm (20 in) For Sale - IPP# 232579

Type: Dryer-Flaker Drum and Belt

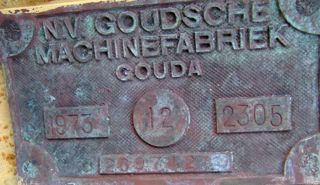

Manufacturer: Gouda

Condition: Unused

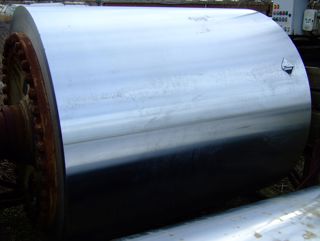

chrome plate drum only For use with Gouda drum flaker

Type: Dryer-Flaker Drum and Belt

Manufacturer: R.Simon Dryers

Model: Stearine acid

Condition: Used

Material: Stainless Steel 316

Flaker Width: 1,538 mm (60.6 in)

Area of Flaker: 228 m² (2,454 ft²)

single drum flaker, with dip tray working pressure 6.9 bar max, design pressure 6.9 bar @ 170 degrees C steam heated drum with rotary unions drum speed variable from 0.7 to 7 rpm, adjustable knife discharge with removeable plastic blades (missing)

Orientation: Horizontal.

Type: Dryer-Flaker Drum and Belt

Manufacturer: APV Mitchell

Condition: Used

Material: Stainless Steel 316

Flaker Width: 600 mm (23.6 in)

Area of Flaker: 2.8 m² (30.4 ft²)

drum flaker/dryer Single drum design Drum and applicator roll cored for steam heating Drum driven by Carter gearbox, Size MF14/100340 2.71 KW @ 960 rpm belt driven by 3 KW, 3/50/415 volt, 700 rpm flameproof motor Applicator roll driven by Croft varispeed drive 316 stainless steel knife discharge with pneumatic adjustment 316 stainless steel drip tray with 316 stainless steel fume hood Openings: hood (2) 52" x 14" plastic inspection doors, 1-8"; tray 3-1".

Orientation: Horizontal. Scraper: Yes. Scraper Details: 316 stainless steel knife discharge with pneumatic adjustment.

Type: Dryer-Flaker Drum and Belt

Manufacturer: Maschinenbau Technik

Model: SBA-300 x 4000

Condition: Used

Material: Stainless Steel 316

Flaker Width: 300 mm (11.8 in)

For Belt: Length of Flaker: 4,000 mm (157.5 in)

301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator size 300 x 4000mm fabrik #02.331 CE #2.02032, 321 stainless steel belt is driven by a 2.2kw motor via a 1.35kw 316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning 15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray (1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump

1. 60 liter electric heated reservoir/tank, (1) 2.4 m3/hour cooling water centrifugal pump, driven by 1.1kw, 3/50/230/400 volt, 2845 rpm motor brief overview: used for the solidification and cooling of melts, product is fed onto the water cooled belt by the Pastillator (drop former), the cooled and solidified product adheres easily to the cooled stainless steel belt and is scraped off by a manually adjustable scraper and then collected in suitable containers

Area of Flaker: 4 m² (43.1 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single. Flaker Feed Type: Standard Drop Pastillator. Number of Cooling Zones for Belt: 1. Nozzles per Cooling Zone: 6. Scraper: Yes. Scraper Details: manually adjustable.
