301/321/316 stainless steel pilot scale horizontal belt flaker system with a pastillator size 300 x 4000mm fabrik #02.331 CE #2.02032, 321 stainless steel belt is driven by a 2.2kw motor via a 1.35kw 316 stainless steel top housing, belt tension mechanism, manually adjustable discharge scraper, belt with a 1.8 m3/hour 321 stainless steel cooling water system with 6-spray nozzles mounted on a carbon steel frame and is a stand alone unit, system also includes: (1) top mounted 321 stainless steel pastillator (drop former) with extension device for lateral retraction mechanism for cleaning 15-nozzles (1-row of 8, 1-row of 7), (1) electrically heated distribution tray (1) 0.06 m3/hour @ 80 to 100 degrees C product feed pump
Type: Dryer-Flaker Drum and Belt
Manufacturer: R.Simon Dryers
Model: Stearine acid
Condition: Used
Material: Stainless Steel 316
Flaker Width: 1,538 mm (60.6 in)
Area of Flaker: 228 m² (2,454 ft²)

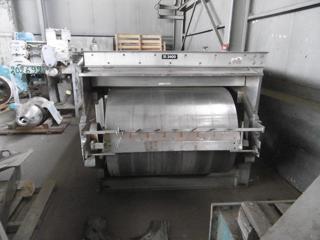

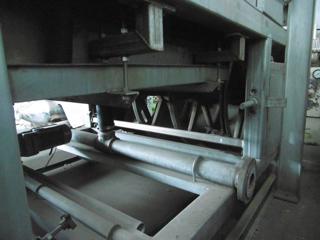

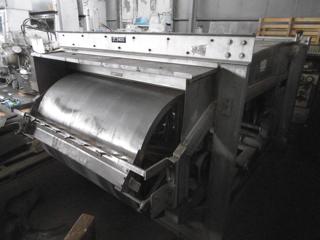

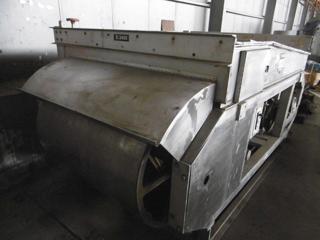

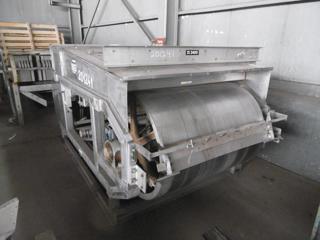

single drum flaker, with dip tray working pressure 6.9 bar max, design pressure 6.9 bar @ 170 degrees C steam heated drum with rotary unions drum speed variable from 0.7 to 7 rpm, adjustable knife discharge with removeable plastic blades (missing)
Orientation: Horizontal.
Type: Dryer-Flaker Drum and Belt
Manufacturer: APV Mitchell
Condition: Used
Material: Stainless Steel 316
Flaker Width: 600 mm (23.6 in)
Area of Flaker: 2.8 m² (30.4 ft²)
drum flaker/dryer Single drum design Drum and applicator roll cored for steam heating Drum driven by Carter gearbox, Size MF14/100340 2.71 KW @ 960 rpm belt driven by 3 KW, 3/50/415 volt, 700 rpm flameproof motor Applicator roll driven by Croft varispeed drive 316 stainless steel knife discharge with pneumatic adjustment 316 stainless steel drip tray with 316 stainless steel fume hood Openings: hood (2) 52" x 14" plastic inspection doors, 1-8"; tray 3-1".
Orientation: Horizontal. Scraper: Yes. Scraper Details: 316 stainless steel knife discharge with pneumatic adjustment.
Type: Dryer-Flaker Drum and Belt
Manufacturer: Gouda
Model: K5-5
Condition: Used
Material: Stainless Steel 316
Flaker Width: 508 mm (20 in)
Scraper: Yes
508mm diameter x 508mm face pilot size 316 stainless steel drum flaker 316 stainless steel jacketed feed pan with manual raise/lower mechanism carbon steel knife with a copper replaceable blade and manual adjustment 304 stainless steel discharge chute, drum openings: 2-40mm, feed pan openings: 2-25mm
Scraper Details: Carbon steel with copper replaceable blade and manual adjustment.
Type: Dryer-Flaker Drum and Belt
Manufacturer: North American Process Systems
Model: N-86-639
Condition: Used
Material: Stainless Steel 316
Flaker Width: 1,200 mm (47.2 in)
For Belt: Length of Flaker: 2,000 mm (78.7 in)
Pharmaceutical grade Top of belt is steam heated bottom is chilled water cooled variable speed, 0.75 kW 3/50/220/380V System equipped with SIHI cooling water vacuum pump driven by 2.5 kW 3/50/380V, 1430 RPM motor.
Area of Flaker: 2.4 m² (25.8 ft²). Orientation: Horizontal. Single Belt or Double Belt ?: Single.
