Unused Graphite Shell and Tube Heat Exchanger - IPP# 230176

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mersen

Model: BEM 20-1-30

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 15.1 m² (163 ft²)

Orientation: Vertical

304L SS with Hastelloy C clad tube sheet Hastelloy lined CS shell

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 182.2 °C (360 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 182.2 °C (360 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Hastelloy - C276. Length: 1,524 mm (60 in). Tube Type: Straight Tube. Tube Number: 333. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 660.4 mm (26 in). Tube Thickness: 0.76 mm (0.03 in). Nozzle Schedule: One 8" nozzle, One 4" nozzle, three 3" nozzles. .

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Graphite

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Carbone of America Corp

Model: K 110/35

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 #

Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Type: Heat Exchanger

Subtype: Shell and Tube

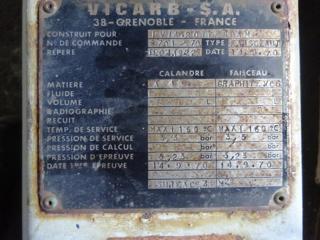

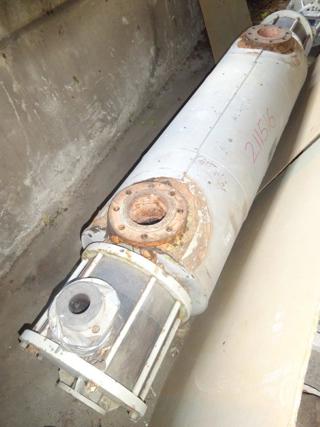

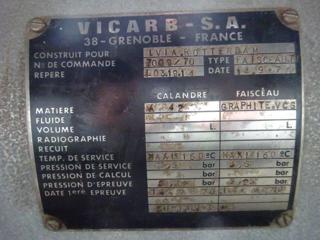

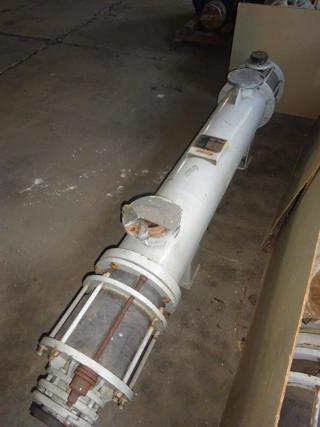

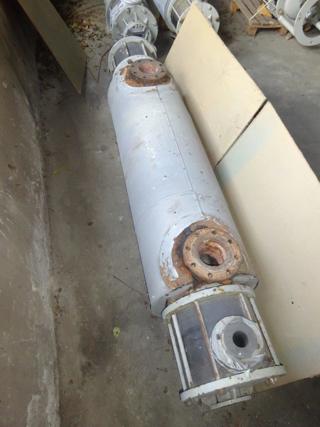

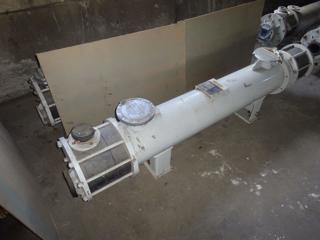

Manufacturer: VICARB

Condition: Used

Material: Graphite

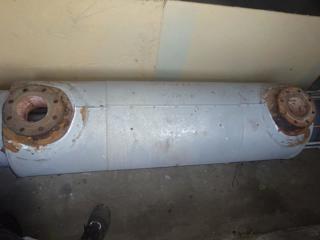

Heat Transfer Surface Area: 3 m² (32.3 ft²)

Orientation: Horizontal

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 3.5 bar (50.8 psi). Tube Temperature: 71.1 °C (160 °F). Tube Material: Graphite. Shell Diameter: 285 mm (11.2 in). Length: 2,310 mm (90.9 in). Tube Number: 24. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,790 mm (70.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Tube Side Openings: (1) 50 mm, (1) 100 mm - Shell Side Openings: (2) 100 mm, (1) 25 mm.
