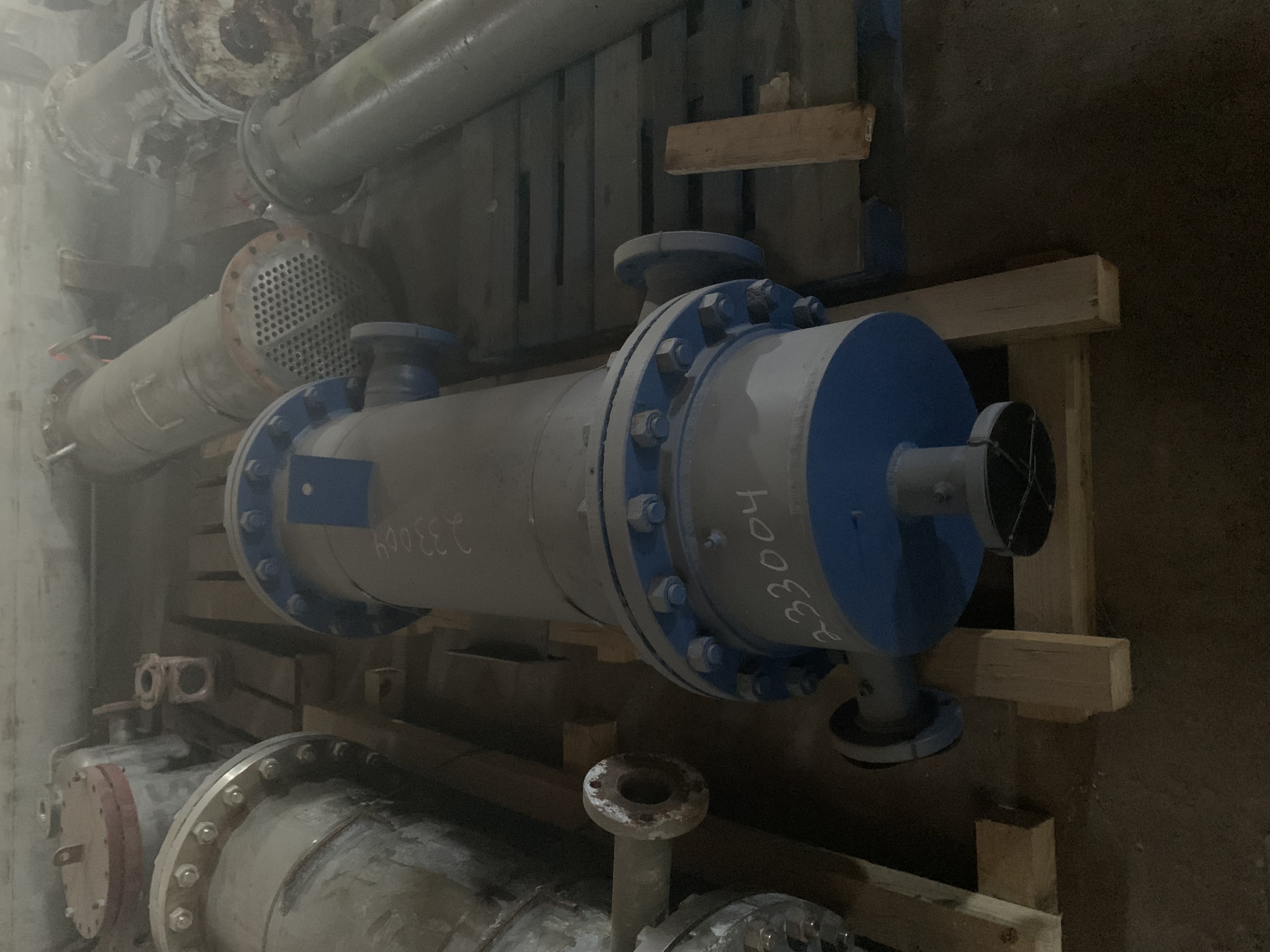

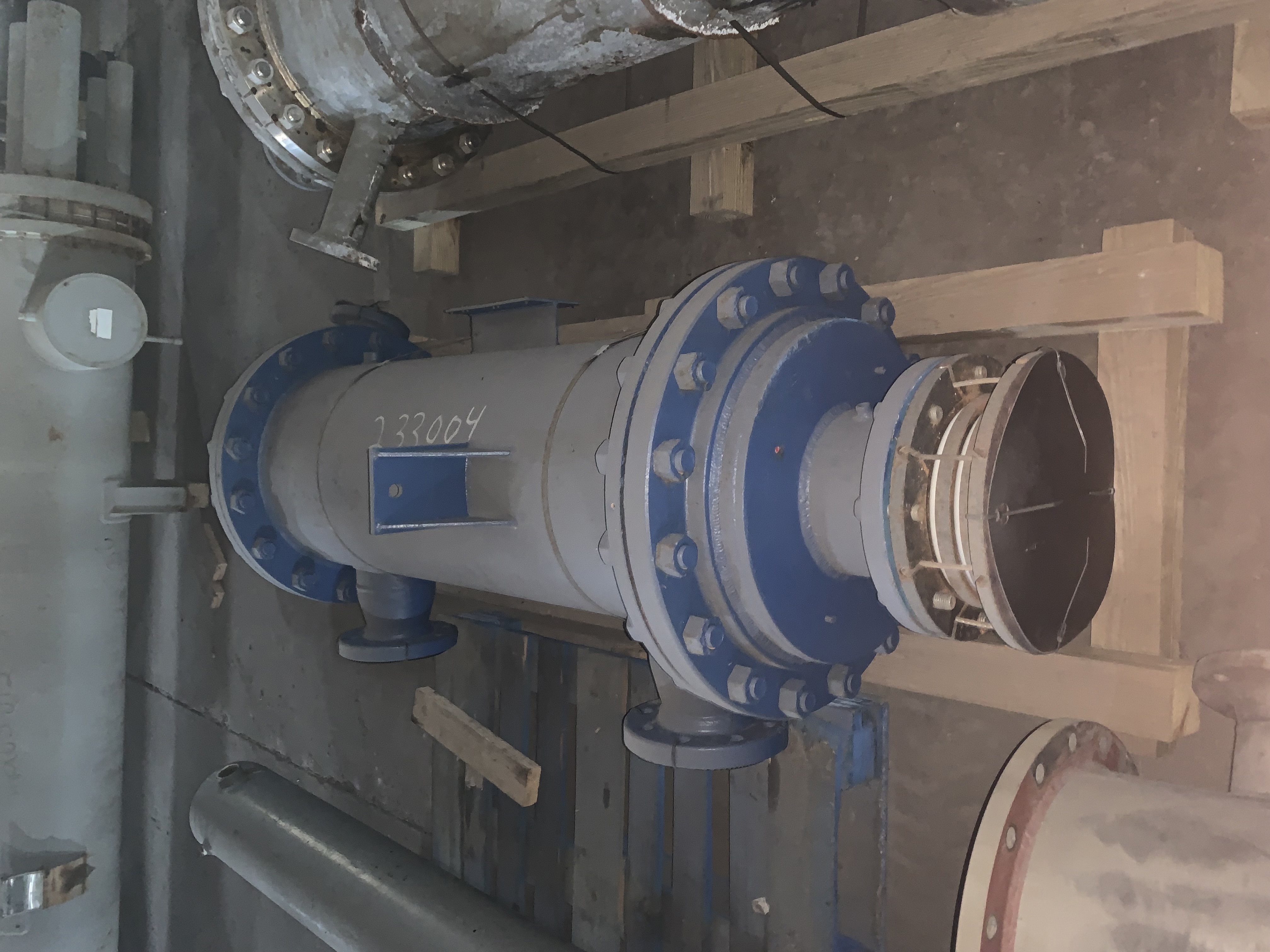

IPP# 233004, 12.3 m² (132 ft²) Tantalum Shell and Tube Heat Exchanger For Sale

IPP# 233004, 12.3 m² (132 ft²) Tantalum Shell and Tube Heat Exchanger For Sale

IPP# 233004, 12.3 m² (132 ft²) Tantalum Shell and Tube Heat Exchanger For Sale

IPP# 233004, 12.3 m² (132 ft²) Tantalum Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Tantalum

Clad:

Yes

Manufacturer:

Cosmos Minerals

Heat Transfer Surface Area:

12.3 m² (132 ft²)

Orientation:

Vertical

Shell Pressure:

6.9 bar (100 psi)

Shell Temperature:

232.2 °C (450 °F)

Shell Material:

Carbon Steel

Tube Pressure:

6.9 bar (100 psi)

Tube Temperature:

232.2 °C (450 °F)

Tube Material:

Tantalum

Tubesheet Material:

Tantalum

Vacuum:

Yes

Shell Diameter:

457.2 mm (18 in)

Head Material:

Tantalum

Length:

1,911 mm (75.3 in)

Tube Type:

Straight Tube

Tube Number:

168

Tube Diameter:

17.8 mm (0.7 in)

Tube Length:

1,219 mm (48 in)

Tube Thickness:

0.38 mm (0.015 in)

Nozzle Schedule:

Shell side - two 4", Tube side - one 8" and two 3".

Additional Info:

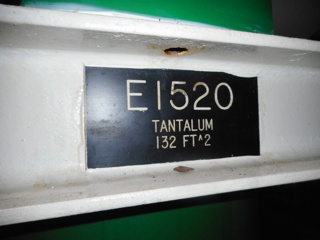

Tantalum clad heads 18" diameter x 75.25" Overall length. (face to face 48")
