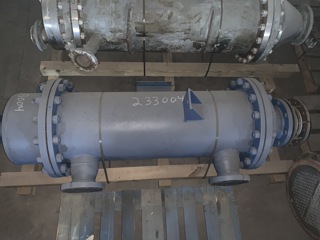

IPP# 225578, 30.8 m² (331 ft²) Hastelloy - B Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Hastelloy - B
Clad:
Yes
Manufacturer:
Cosmos Minerals
Heat Transfer Surface Area:
30.8 m² (331 ft²)
Orientation:
Horizontal
Shell Pressure:
18.6 bar (270 psi)
Shell Temperature:
232.2 °C (450 °F)
Shell Material:
Carbon Steel
Tube Pressure:
18.6 bar (270 psi)
Tube Temperature:
232.2 °C (450 °F)
Tube Material:
Hastelloy - B
Tubesheet Material:
Hastelloy - B
Vacuum:
Yes
Shell Diameter:
406.4 mm (16 in)
Head Material:
Hastelloy - B
Length:
6,020 mm (237 in)
Tube Number:
64
Tube Diameter:
25.4 mm (1 in)
Tube Length:
6,020 mm (237 in)
Tube Thickness:
1.52 mm (0.06 in)
Nozzle Schedule:
Openings include Tube side: (2) 6"; shell side (1) 4"; (1) 2".
Additional Info:
15.25" diameter x 1.5" thick. (2) Hastelloy B heads. Alloy 600 expansion joint n the shell.
