123.5 m² (1,329 ft²) Stainless Steel 304 Shell and Tube Heat Exchanger For Sale - IPP# 221038

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Worsham Enterprises

Model: AEL

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 160.7 m² (1,730 ft²)

Shell Pressure: 5.2 bar (75 psi)

Size 33-144 33" OD x 1 7/8" thick Expansion joint in shell (2) bolted SS heads

Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 863.6 mm (34 in). Head Material: Stainless Steel 304. Length: 3,565 mm (140.4 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 558. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,581 mm (141 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: Nozzle schedule as follows: Shell side one 6" at expansion joint, one 3" at expansion joint, one 3" and two 1" NPT (vent & Drain). Radius head has one 6" nozzle, Cone head has a 10" nozzle orientated down and a 12" nozzle at the end of cone with a butterfly valve.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 160.4 m² (1,727 ft²)

Orientation: Vertical

4,690,000 BTU/Hr

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 92.8 °C (199 °F). Shell Material: Stainless Steel 304. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 92.8 °C (199 °F). Tube Material: Stainless Steel 304. Shell Diameter: 685.8 mm (27 in). Head Material: Carbon Steel. Length: 6,096 mm (240 in). Tube-side Passes: 4. Tube Number: 330. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cosmos Minerals

Model: AEL

Condition: Used

Material: Hastelloy - B

Clad: Yes

Heat Transfer Surface Area: 30.8 m² (331 ft²)

Orientation: Horizontal

15.25" diameter x 1.5" thick. (2) Hastelloy B heads. Alloy 600 expansion joint n the shell.

Shell Pressure: 18.6 bar (270 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 18.6 bar (270 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - B. Tubesheet Material: Hastelloy - B. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Head Material: Hastelloy - B. Length: 6,020 mm (237 in). Tube Number: 64. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,020 mm (237 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include Tube side: (2) 6"; shell side (1) 4"; (1) 2". .

Type: Heat Exchanger

Subtype: Shell and Tube

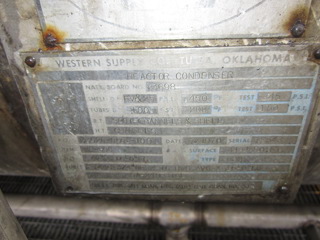

Manufacturer: Western Supply

Model: BHM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 412.9 m² (4,444 ft²)

Orientation: Horizontal

Expansion joint. Shell is 3/8" thick; Channels 7/16" thick.

Shell Pressure: 1.72 bar (25 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Carbon Steel. Length: 4,877 mm (192 in). Tube-side Passes: 4. Tube Number: 1,446. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,877 mm (192 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Openings include: Shell - (4) 12", (2) 3"; One head - (2) 8".
