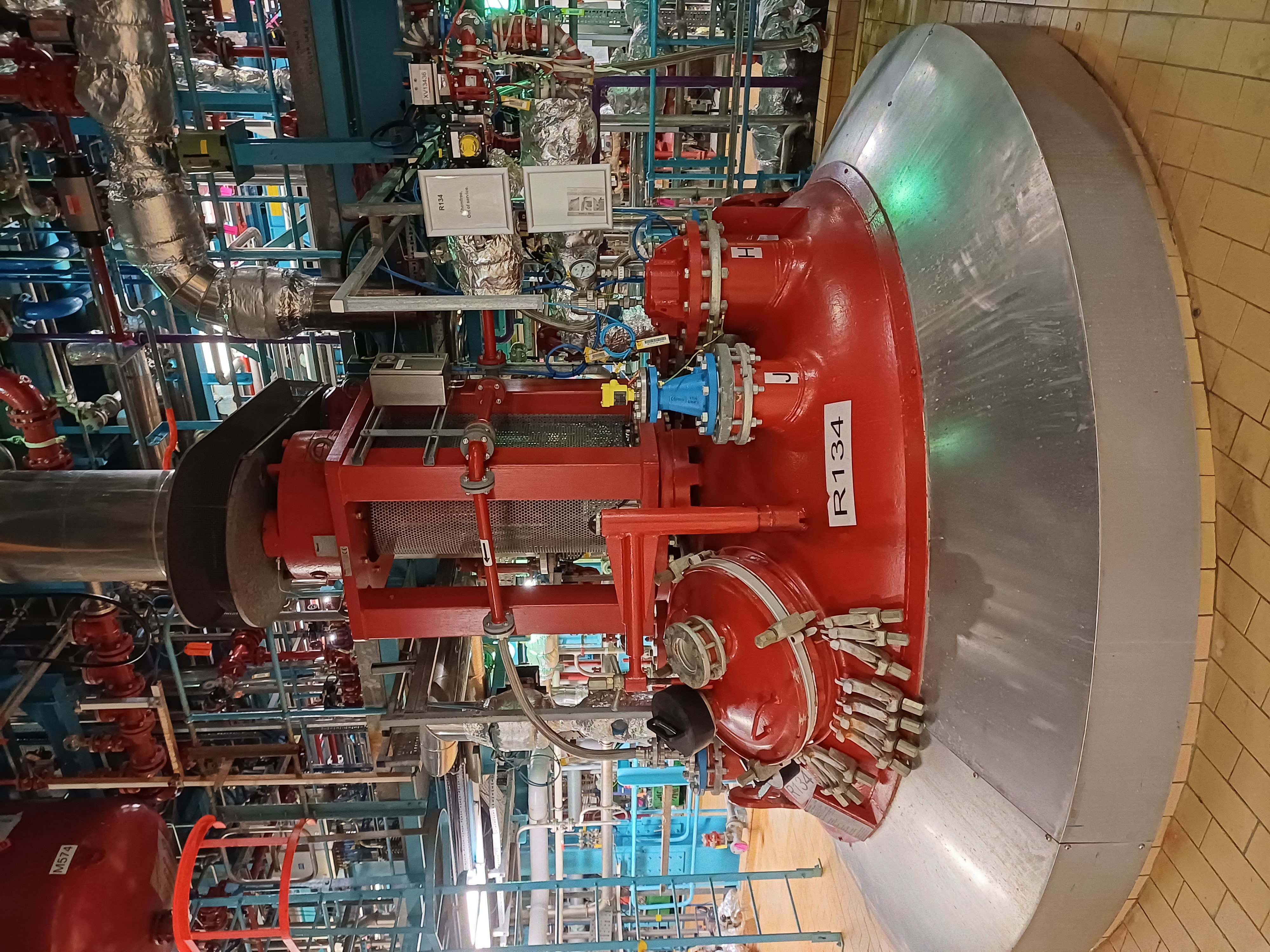

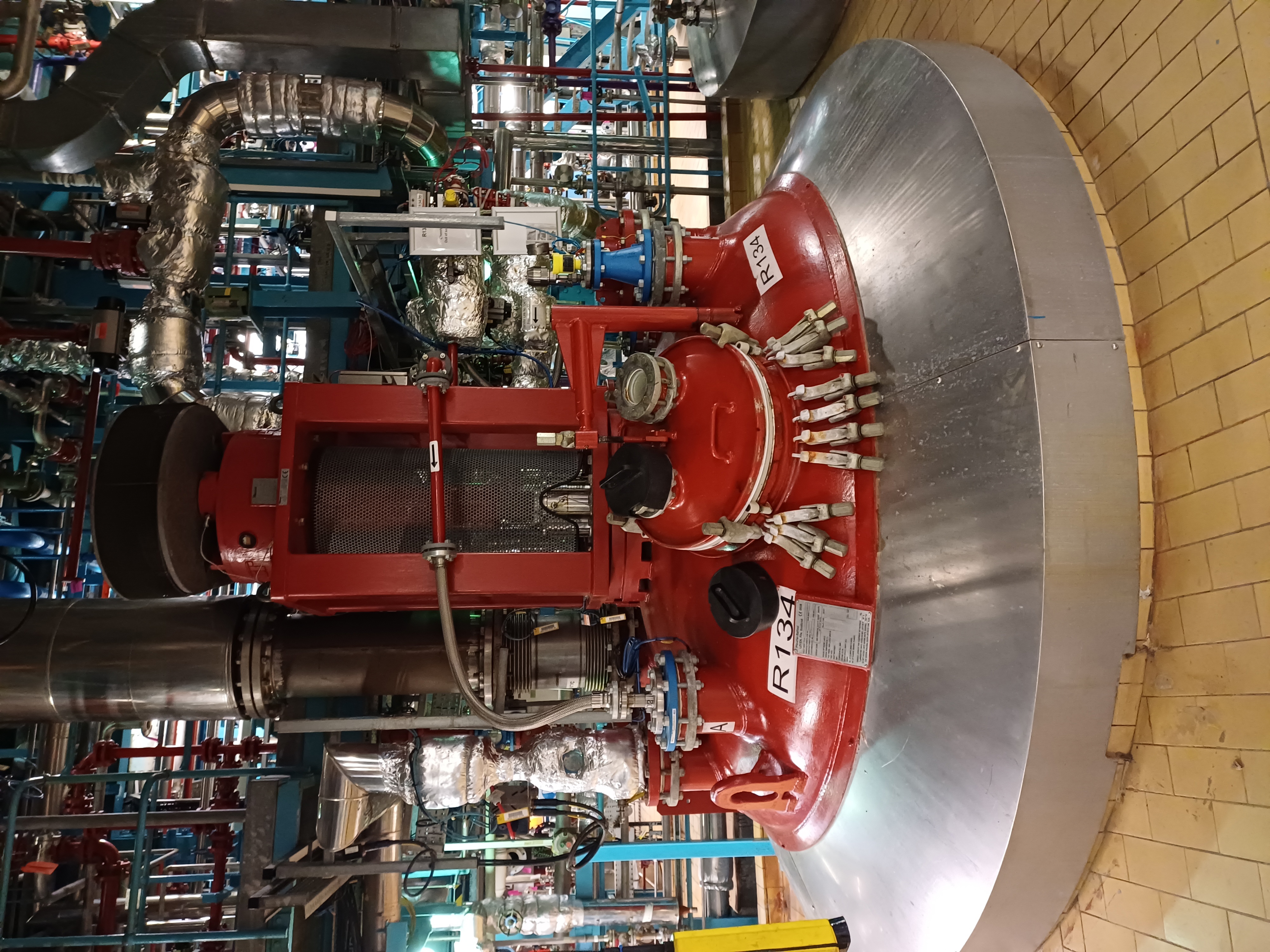

Glasslined Pfaudler BE Batch-Type Agitated Reactor

  • Glasslined Pfaudler BE Batch-Type Agitated Reactor Glasslined Pfaudler BE Batch-Type Agitated Reactor
  • Glasslined Pfaudler BE Batch-Type Agitated Reactor Glasslined Pfaudler BE Batch-Type Agitated Reactor
  • Glasslined Pfaudler BE Batch-Type Agitated Reactor
  • Glasslined Pfaudler BE Batch-Type Agitated Reactor
Overview
Reactor
Batch-Type Agitated
Pfaudler
BE 16000
Used
Glasslined
16,000 L (4,250 gallons)
Glass Lined
Pressure Vessel
6 bar (87 psi)
Yes
200 °C (392 °F)
Jacket/Internal Coil
10 bar (145 psi)
200 °C (392 °F)
Standard
Carbon Steel
Dimensions
Vertical
2,750 mm (108 in)
2,300 mm (89.6 in)
Agitation System
Yes
Pitch Blade
Mechanical with Gas
1-sets of Cryolock pitched paddles and CBT Cryolock on bottom
45 kW (60.3 HP)
45 kW (60.3 HP)
Beavertail
beavertail baffle
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Lugs
Inlets & Outlets
openings top: 1-600mm manway with 2-100mm sightglasses, 2-400mm, 2-300mm, 4-200mm, 1-25mm (jacket), side jacket: 2-80mm, 4-50mm, bottom: 1-150mm, 2-80mm (jacket)
Additional Information
  • design pressure internal -1/6 bar @ -29/200 degrees C,
  • jacket -1/10 bar @ -29/200 degrees C,
  • CE0038,
  • glass type 9129,
  • driven by 45-52kW, 3/50-60/690-400/660-380/415-440 volt, 1477/1473/1479/1773 rpm EExd IIB II 2G T4 ATEX motor via a reduction gearbox,
  • 90 rpm shaft speed,
  • white glass body, blue glass shaft and baffle
  • design code: ASME VIII DIV 1, 2004 ANNEXE Z and essential safety requirements of PED/97/23/EC,

Similar Equipment

Glasslined Pfaudler BE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE 16000

Condition: Used

Material: Glasslined

Capacity (Design): 18,200 L (4,800 gallons)

Internal Pressure: 6 bar (87 psi)

  • working volume 16000 liter
  • design pressure internal -1/6 bar @ -25/200 degrees C (18200 liter), jacket -1/16 bar @ -25/200 degrees C (2 x 345 liter)
  • glass type WWG-9115
  • EEx de II CT4 motor
  • jacket on straight side and bottom dish
  • design code: PED 97/23/EG, CAT IV, module G, fluid group 1, AD 2000,
  • CE 0036 certified

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,600 mm (102.4 in). Straight Side Length: 2,750 mm (107.7 in). Support Type: Ring.
