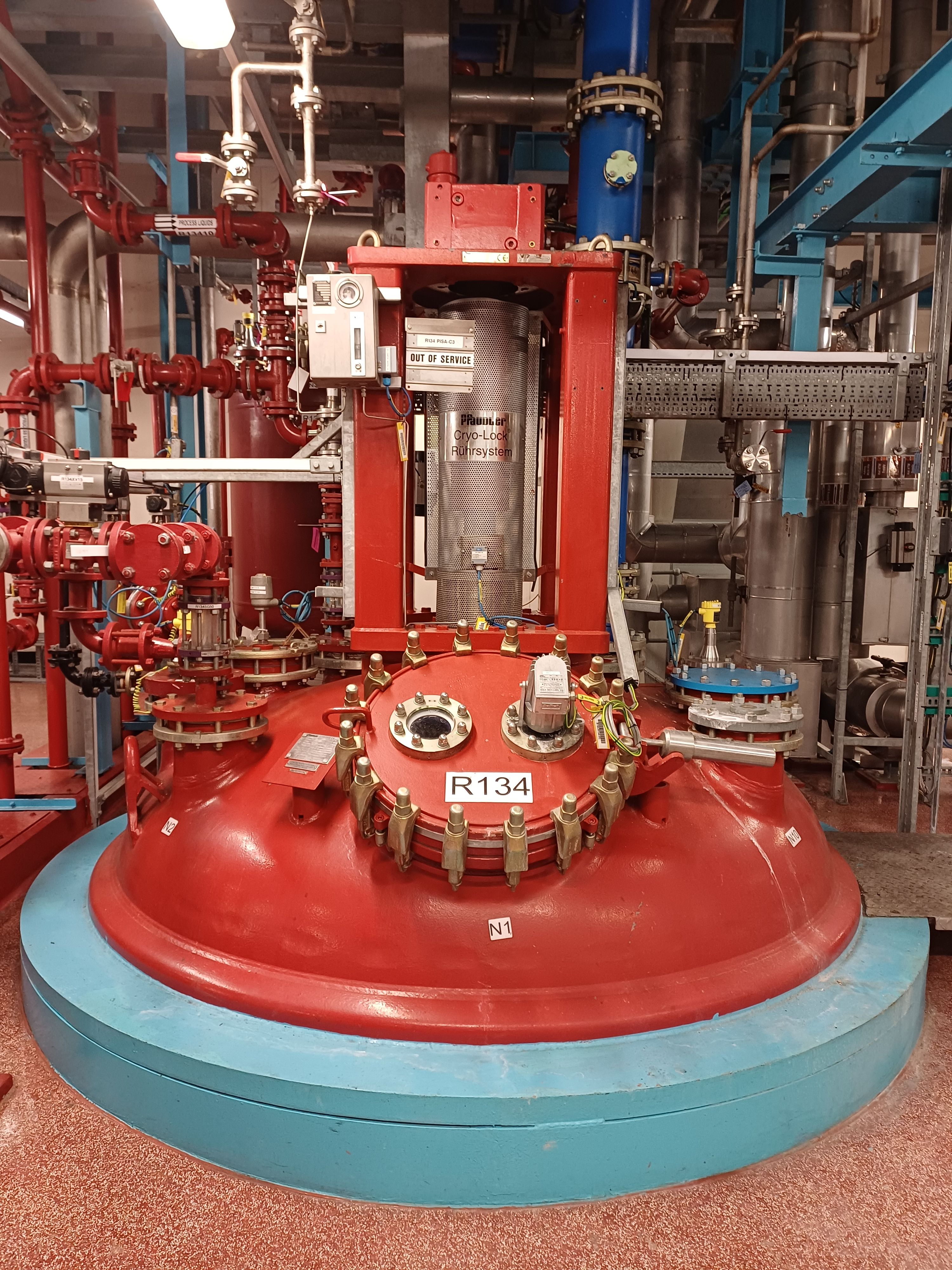

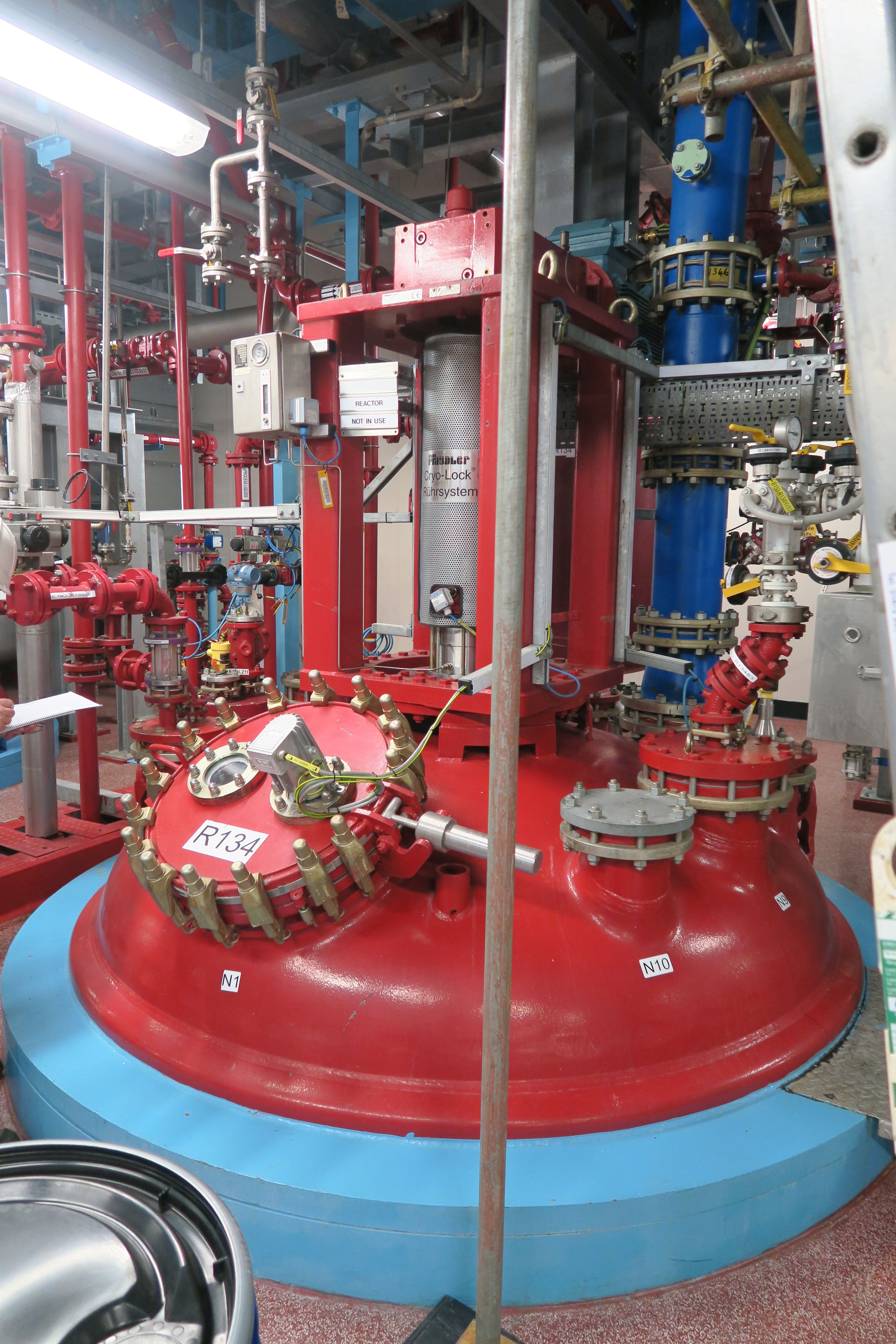

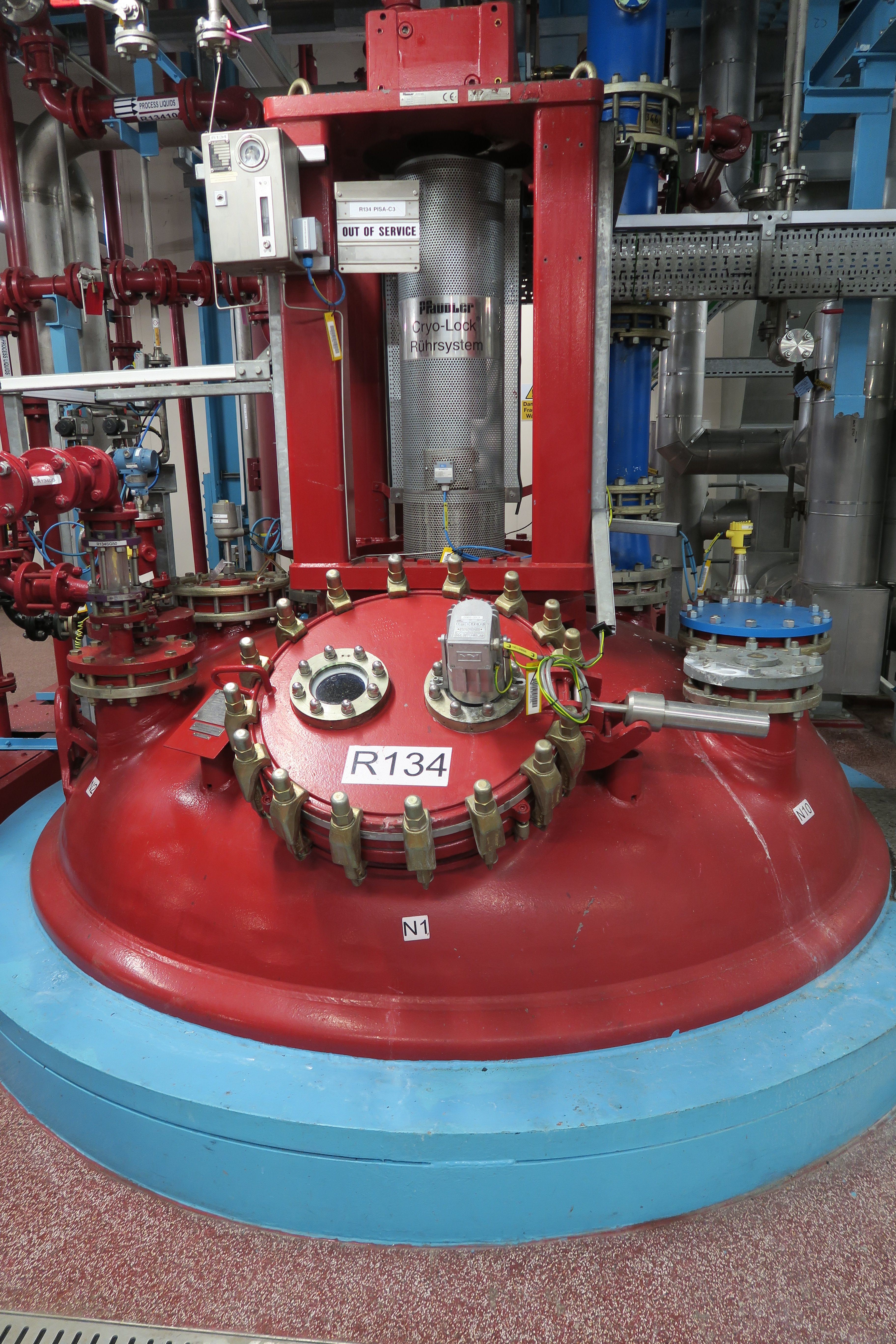

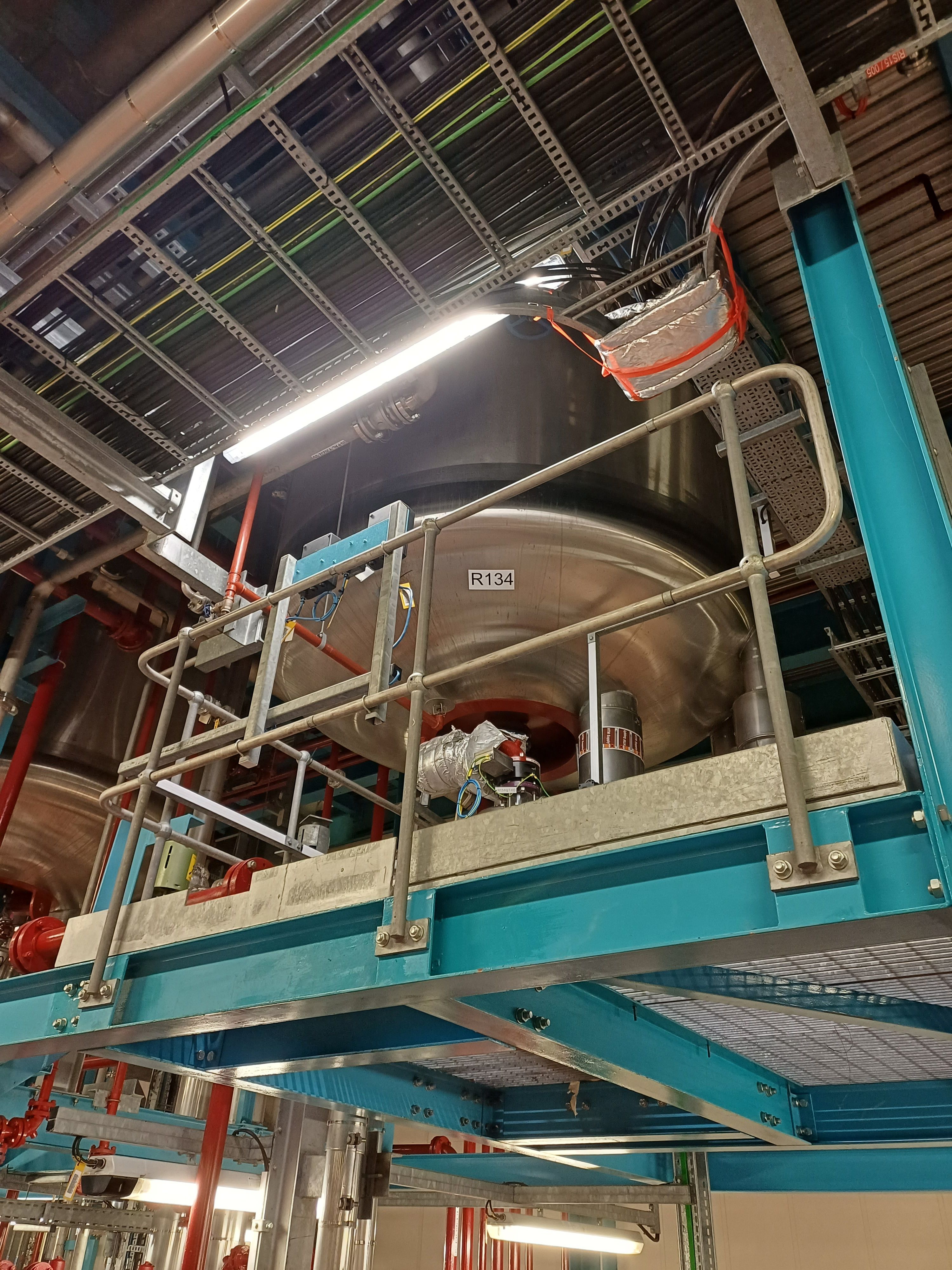

Glasslined Pfaudler BE Batch-Type Agitated Reactor

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE 16000

Condition: Used

Material: Glasslined

Capacity (Design): 16,000 L (4,250 gallons)

Internal Pressure: 6 bar (87 psi)

• design pressure internal -1/6 bar @ -29/200 degrees C,
• jacket -1/10 bar @ -29/200 degrees C,
• CE0038,
• glass type 9129,

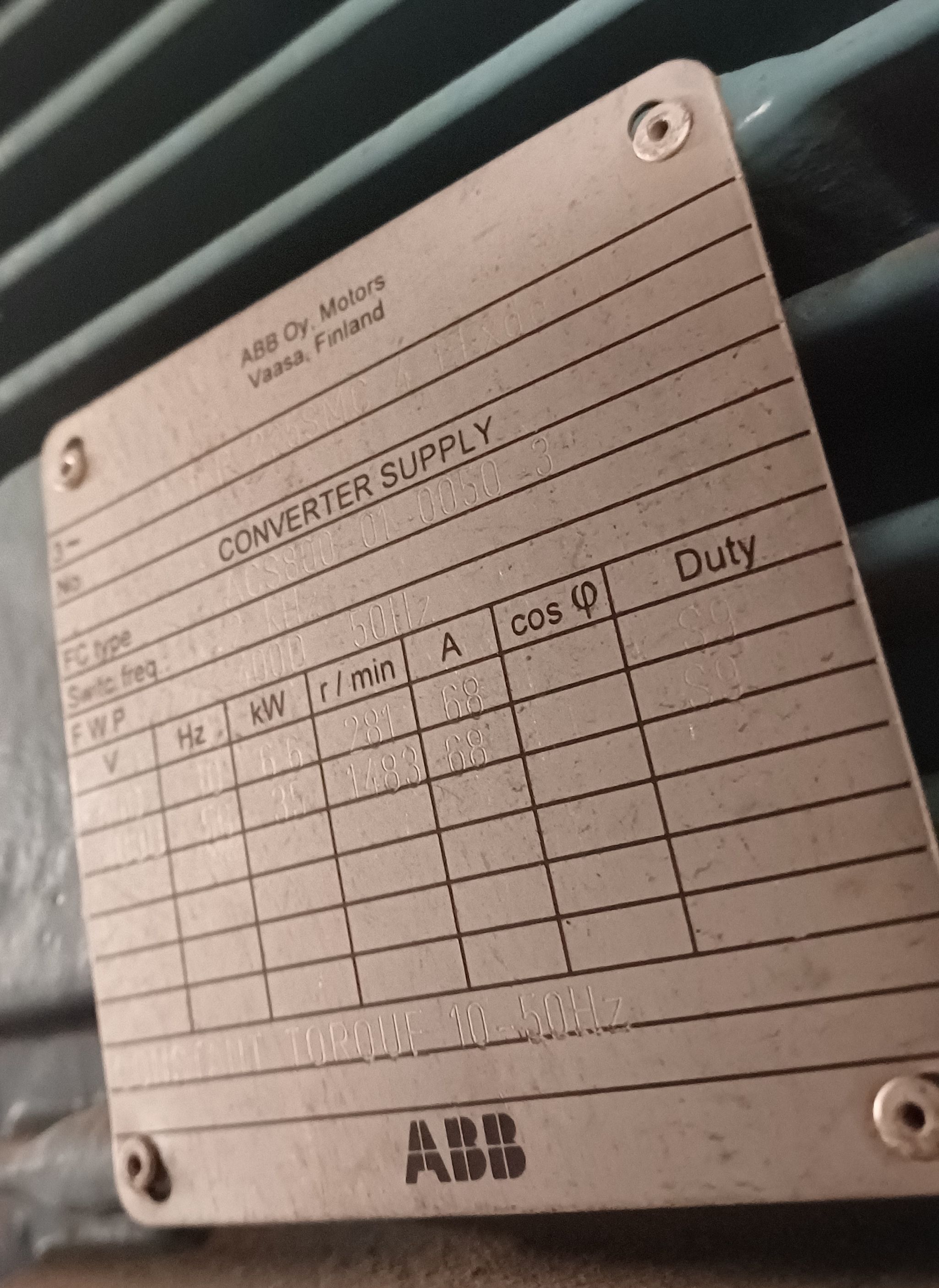

• driven by 45-52kW, 3/50-60/690-400/660-380/415-440 volt, 1477/1473/1479/1773 rpm EExd IIB II 2G T4 ATEX motor via a reduction gearbox,
• 90 rpm shaft speed,
• white glass body, blue glass shaft and baffle
• design code: ASME VIII DIV 1, 2004 ANNEXE Z and essential safety requirements of PED/97/23/EC,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,750 mm (108 in). Straight Side Length: 2,300 mm (89.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE 16000

Condition: Used

Material: Glasslined

Capacity (Design): 18,200 L (4,800 gallons)

Internal Pressure: 6 bar (87 psi)

• working volume 16000 liter
• glass type WWG9115,
• design pressure internal -1/6 bar @ -25/200 degrees C (18200 liter),jacket -1/16 bar @ -25/200 degrees C (2 x 345 liter),
• EEx de II CT4 motor
• CE 0036 certified
• jacket on straight side and bottom dish
• design code: PED 97/23/EG, CAT IV, module G, fluid group 1, AD 2000,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,600 mm (102.4 in). Straight Side Length: 2,750 mm (107.7 in). Support Type: Ring.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE 16000

Condition: Used

Material: Glasslined

Capacity (Design): 18,200 L (4,800 gallons)

Internal Pressure: 6 bar (87 psi)

• working volume 16000 liter
• CE 0036
• design pressure internal -1/6 bar @ -25/200 degrees C, jacket -1/16 bar @ -25/200 degrees C (2 x 345 liter)
• glass type WWG-9115
• driven by approx 45kw 3/50/400 volt 1450 rpm EEx de II CT4 motor,
• design code: PED 97/23/EG, CAT IV, module G, fluid group 1, AD 2000

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,600 mm (102.4 in). Straight Side Length: 2,750 mm (107.7 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE 16000

Condition: Used

Material: Glasslined

Capacity (Design): 18,200 L (4,800 gallons)

Internal Pressure: 6 bar (87 psi)

• working volume 16000 liter
• CE 0036 certified
• design pressure internal -1/6 bar @ -25/200 degrees C, jacket -1/16 bar @ -25/200 degrees C (2 x 345 liter)
• driven by approx 35kw 3/50/400 volt 1450 rpm EEx de II CT4 motor
• half pipe coil jacket on straight side and bottom dish
• design code: PED 97/23/EG, CAT IV, module G, fluid group 1, AD 2000

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 16 bar (232.1 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 2,600 mm (102.4 in). Straight Side Length: 2,750 mm (107.7 in). Support Type: Ring.
