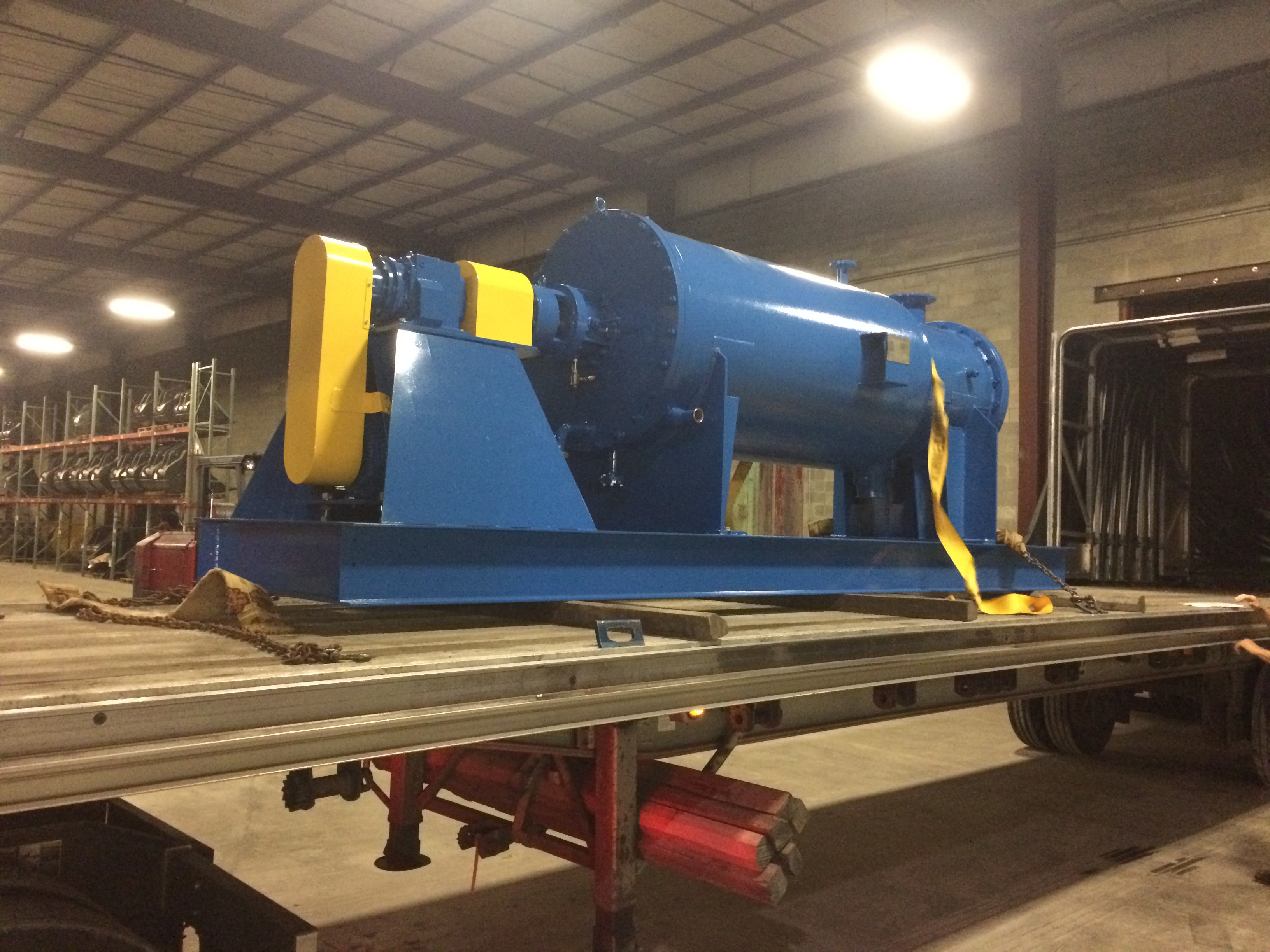

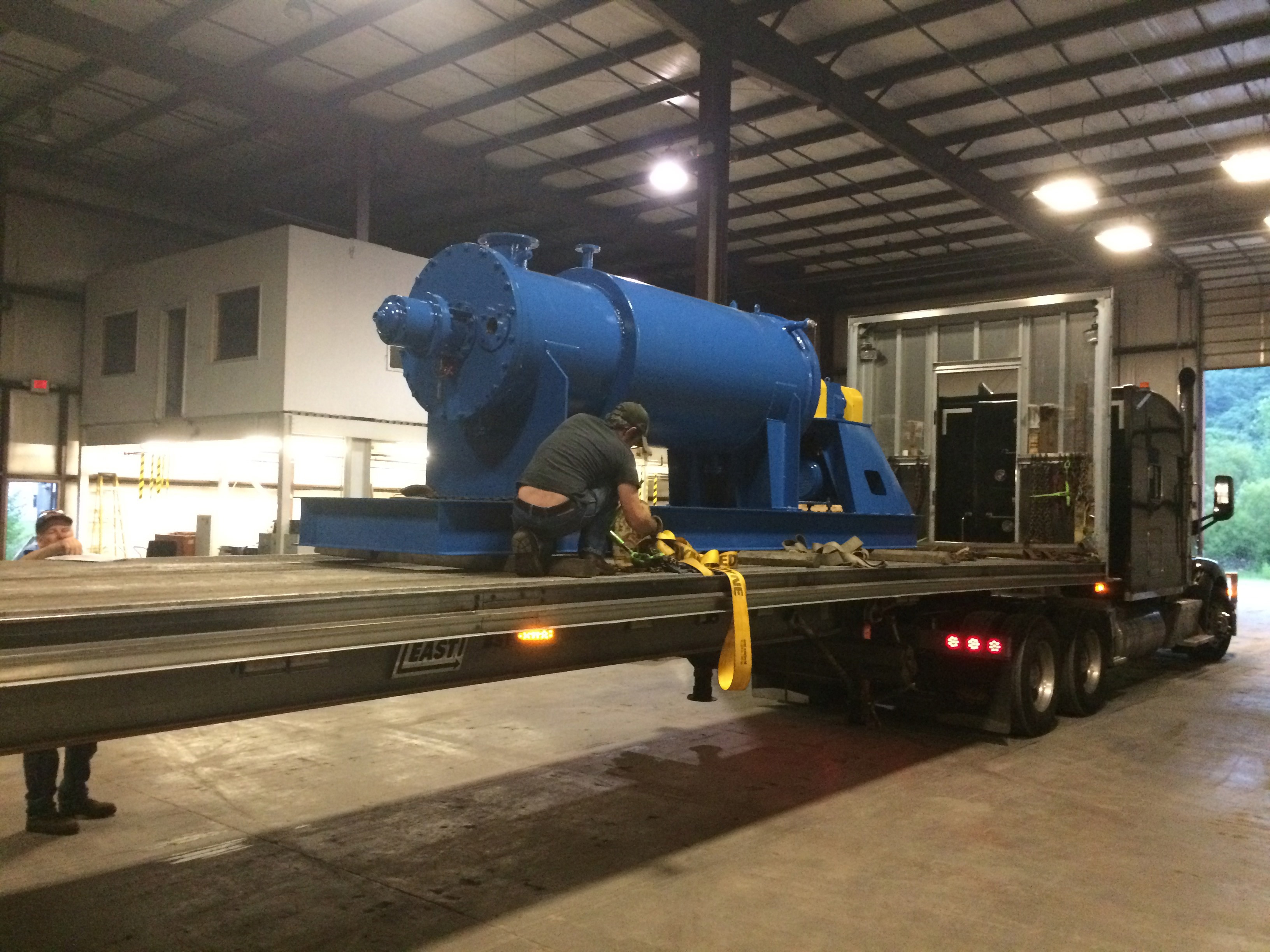

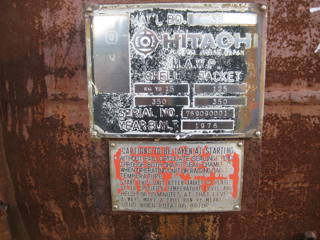

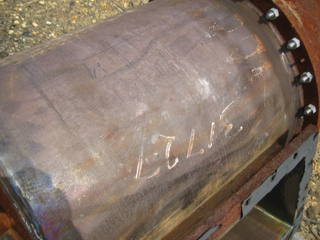

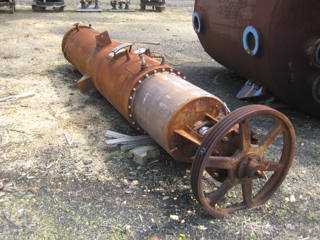

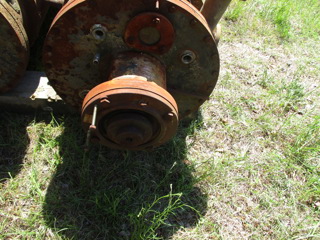

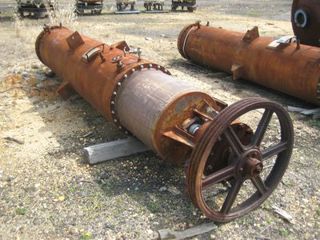

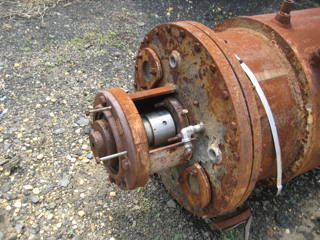

Type: Evaporator
Subtype: Wiped/Thin Film

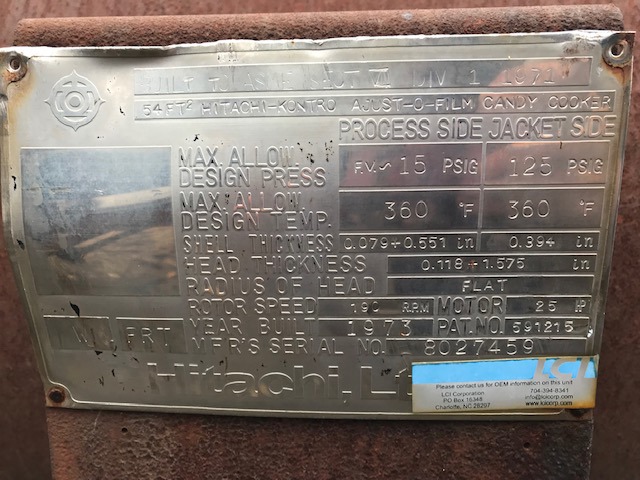

Manufacturer: Hitachi
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 317.5 kg/h (700 lb/h)
Total Heat Transfer Surface Area: 13 m² (140 ft²)

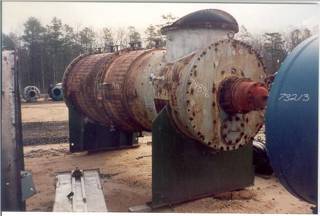

jkt rated 125 psi @ 350 deg F 2-zone CS jkt. 10' long evaporation section. 8-blade rotor, mech seal on shaft. Belt driven by 30 HP, 3/60/460 volt, 890 rpm TEFC motor.
Orientation: Horizontal. Diameter: 1,067 mm (42 in). Height: 3,048 mm (120 in). Pressure: 1.03 bar (15 psi). Temperature: 176.7 °C (350 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.

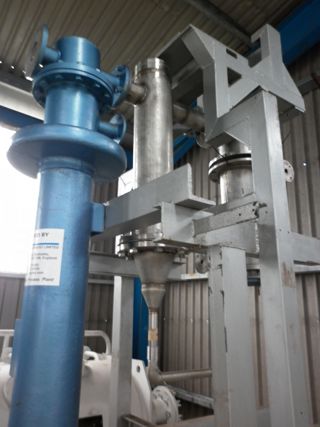

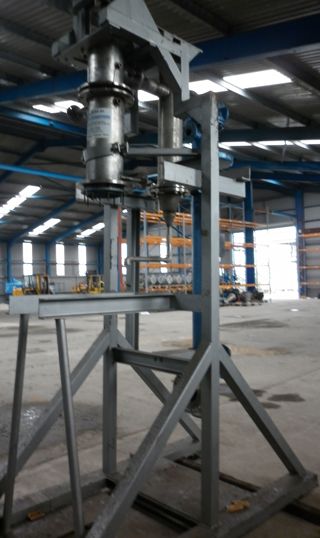

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Balfour
Model: Stratavap
Condition: Used
Material: Stainless Steel 304
Total Heat Transfer Surface Area: 0.23 m² (2.5 ft²)
Orientation: Vertical

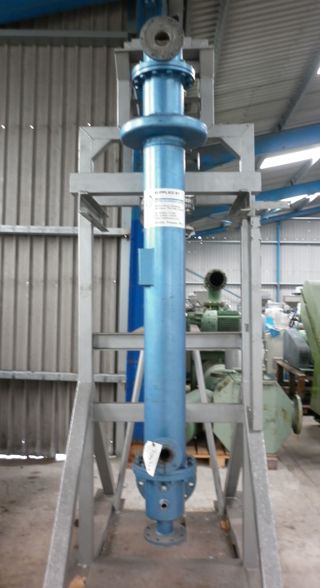

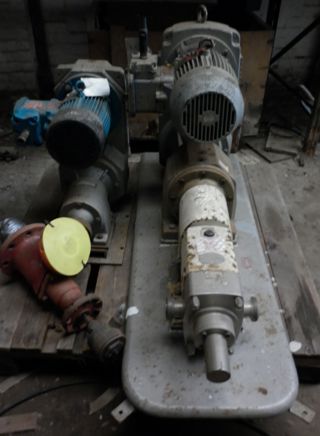

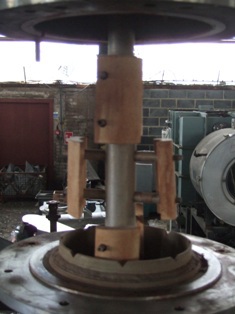

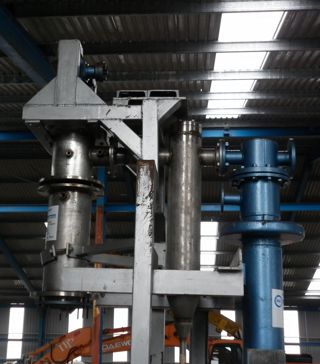

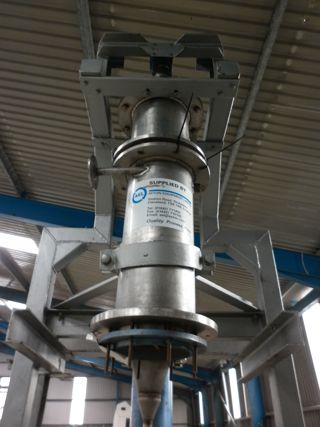

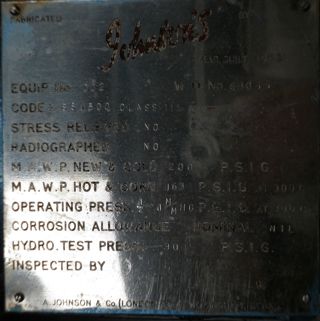

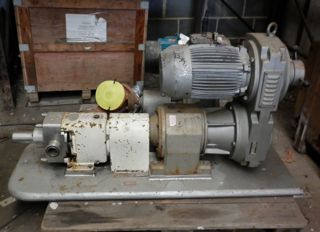

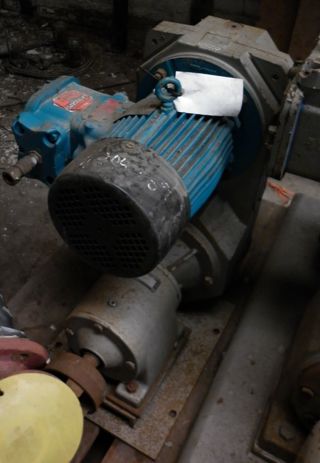

wiped film lab size evaporator system. jacket 13.8 bar @ 200 degrees C. Consisting of (1) 2.5 square feet 304 stainless steel vertical jacketed wiped/thin film evaporator. with 304 stainless steel jacket. 4-blade flexible teflon wipers. Rotor driven by Eurodrive, Type RGUV-031A, 30-177 rpm, 17.06:1 ratio, varispeed drive, driven by 3 KW, 3/50/415 volt, 1430 rpm flameproof motor. Mechanical seal. (1) stainless steel circulation pump. manufactured by Howard Pumps, serial #14037, model #CL2-20. Capacity 5000 liter/hour, pressure 6 bar. Eurodrive 98-381 rpm, 5.04:1 ratio, varispeed drive, driven by 7.5 KW, 3/50/415 volt, 1440 rpm flameproof motor. (1) approx 15 square feet stainless steel tube, head and carbon steel shell heat exchanger. manufactured by Johnsons, serial #63055. Pressure 163 psi @ 300 degrees C. Shell 7" diameter x 72" long. Shell with expansion bellows.
Diameter: 152.4 mm (6 in). Height: 762 mm (30 in). Pressure: 1 bar (14.5 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eurodrive RGUV-031A.

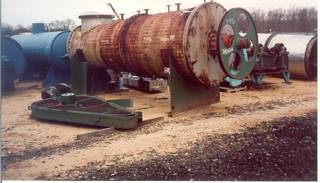

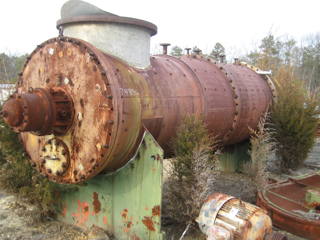

Type: Evaporator
Subtype: Wiped/Thin Film

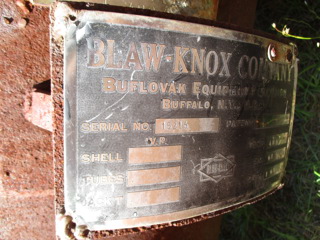

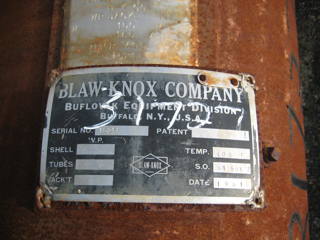

Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)

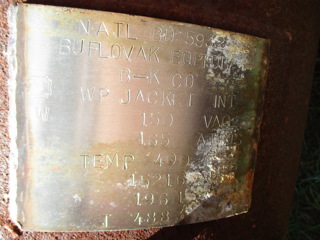

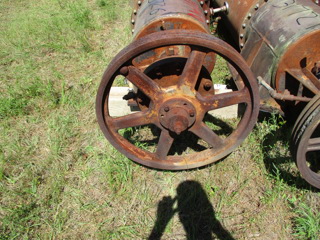

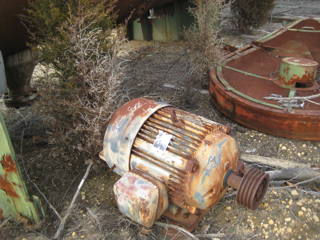

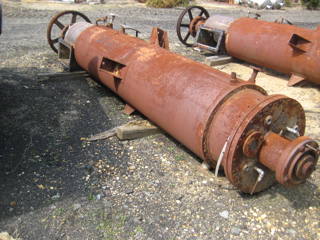

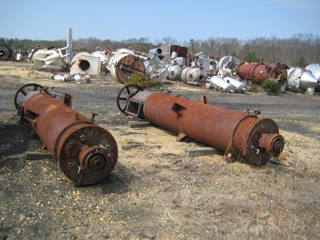

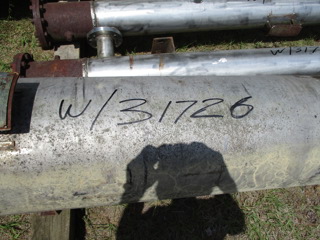

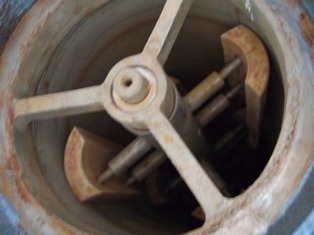

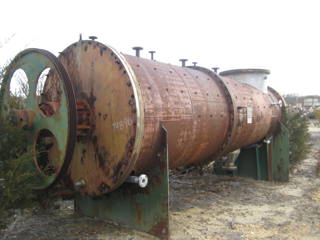

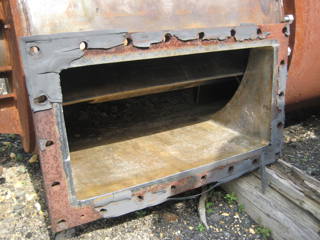

304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system 165 psi @ 400 deg F jkt NB stamped 5932. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.

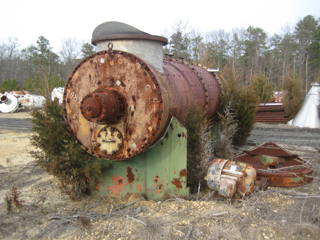

Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buflovak/Blaw Knox
Model: Roto-Vak Mdl
Condition: Used
Material: Stainless Steel 304
Clad: Yes
Evaporation Rate: 626 kg/h (1,380 lb/h)
Total Heat Transfer Surface Area: 4.6 m² (50 ft²)
304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system Mfd by Buflovak 165 psi @ 400 deg F jkt. NB stamped 5931. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed. (motor for drive not available). Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm. W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.
Diameter: 1,016 mm (40 in). Height: 1,727 mm (68 in). Pressure: 1.03 bar (15 psi). Temperature: 204.4 °C (400 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
