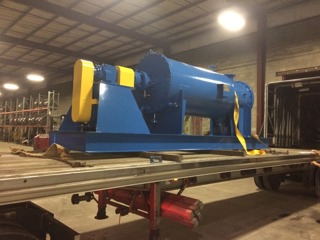

317.5 kg/h (700 lb/h) Stainless Steel 316 Wiped/Thin Film Evaporator For Sale IPP# 74896

Type:

Evaporator

Subtype:

Wiped/Thin Film

Manufacturer:

Hitachi

Condition:

Used

Material:

Stainless Steel 316

Evaporation Rate:

317.5 kg/h (700 lb/h)

Total Heat Transfer Surface Area:

13 m² (140 ft²)

Diameter:

1,067 mm (42 in)

Height:

3,048 mm (120 in)

Orientation:

Horizontal

Pressure:

1.03 bar (15 psi)

Temperature:

176.7 °C (350 °F)

Vacuum:

Yes

Nozzle Schedule:

top 1-32", 1-1 1/2"; btm 1-6", 1-1 1/2".

Support Details:

Mtd on saddles.

Support Type:

Saddle

Top Head type:

Flat

Top Head Fastening:

Bolted

Bottom Head Type:

Flat

Bottom Head Fastening:

Bolted

Mechanical Seal on Shaft:

Yes

Drive Motor HP:

22.4 kW (30 HP)

Drive Motor RPM:

890

Drive Motor Voltage:

460

Electrical Phase:

Drive Motor Hertz:

Additional Info:

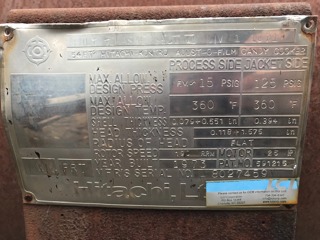

jkt rated 125 psi @ 350 deg F 2-zone CS jkt. 10' long evaporation section. 8-blade rotor, mech seal on shaft. Belt driven by 30 HP, 3/60/460 volt, 890 rpm TEFC motor.

IPP# 74896, 317.5 kg/h (700 lb/h) Stainless Steel 316 Wiped/Thin Film Evaporator For Sale
