1.56 m3 (55 ft3) Stainless Steel 304 Dryer-Rotary Vacuum For Sale - IPP# 79679

Type: Dryer-Rotary Vacuum

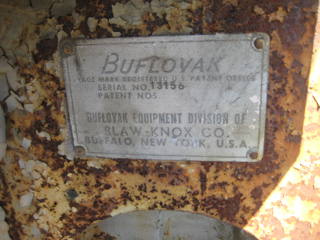

Manufacturer: Buflovak/Blaw Knox

Condition: Used

Material: Stainless Steel 304

Capacity Design: 3.5 m3 (125 ft3)

Capacity Working: 2.3 m3 (82 ft3)

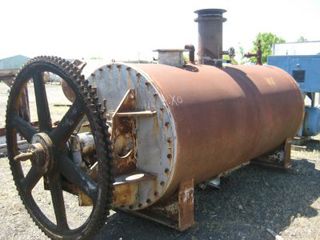

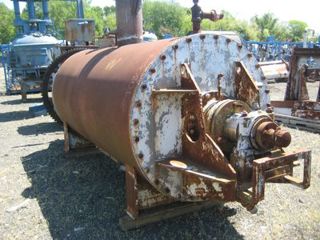

HSB # 3332A Shell rated full vacuum 4' diameter x 10' long chamber Has 24" diameter cored removable shaft with paddles and bolt-on scraper blades. 3" Johnson rotary joint. Has 12" diameter bottom outlet with hinged swing bolt cover. 2-12" feed ports.

Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Shaft Cored and National Board Stamped: Yes. Agitation Seal Type: Packing. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Blaw Knox

Condition: Used

Material: Stainless Steel 304

Capacity Design: 3.5 m3 (125 ft3)

Capacity Working: 2.3 m3 (82 ft3)

4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.

Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Height: 2,134 mm (84 in). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.

Type: Dryer-Rotary Vacuum

Manufacturer: Littleford

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.62 m3 (22 ft3)

Capacity Working: 0.37 m3 (13 ft3)

Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Main shaft drive 10 Hp with gear reducer for output rpm of 65. Center bottom discharge 15.5" ID. No dust collector with unit.

Diameter: 939.8 mm (37 in). Length: 2,540 mm (100 in). Height: 4,064 mm (160 in). Temperature: 121.1 °C (250 °F). Pressure: 1.03 bar (14.9 psi). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Littleford Bros, Inc

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.62 m3 (22 ft3)

Capacity Working: 0.37 m3 (13 ft3)

product contact Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Center bottom discharge 15.5" ID.

Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation Seal Type: Packing. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).
