Hastelloy - C22 Rosenmund FML 250 Rosenmund and Cogeim Filter - IPP# 706865

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund AG

Model: APOVAC

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 0.3 m² (3.2 ft²)

Diameter: 457.2 mm (18 in)

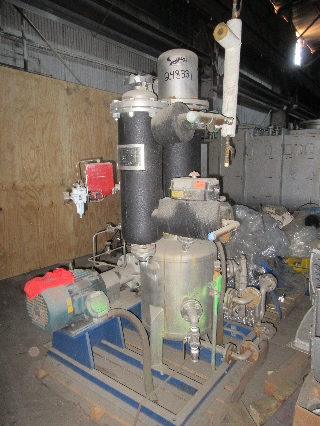

• APOVAC system skid mounted.

• 80 CFM 2.2 GPM with a Sulzer Burkhardt Vacuum Pump, typically contains two heat exchangers and a receiver.

• All on a skid mounted system.

• Can be used with the following IPP stock numbers: 247646, 247146, 247050, 209158, 230453, 705428, 706865, 248105, & 247051

• Receiver is 316 L SS, 20 Gallon, 18" diameter x 18" straight side, rated for FV/60 psi at 248 degrees F.

• Heat exchanger serial # W8788C, 10 Sq. Ft., 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

  31 straight tubes, 0.75" diameter x 18 GA x 22" long.

• Heat exchanger, serial # W8788B, 202 Sq.Ft. 316L SS tubes, tube sheets, heads and shell. Shell rated for FV90 psi at 248 Degrees F., tubes rated for FV 60 psi at 248 degrees F.

  31 Straight tubes, 1" diameter x0.065" x 25" long.

Pressure: 4.1 bar (60 psi). Temperature: 120 °C (248 °F). Vacuum: Yes. Internal Finish: Mill 2B.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RSD 0.03-975-98

Condition: Used

Material: Hastelloy - C22

Filtration Area: 0.3 m² (3.2 ft²)

Pressure: 6 bar (87 psi)

Agitated Pressure FilterThe 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree CThe 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C.With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controlsFilter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.

• Can be used with 248331 APOVAC system for vacuum at an additional cost.

Temperature: 200 °C (392 °F). Jacket: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: Filtodry FPP XD 400 FM

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: 3V Cogeim

Model: FiltoDry FEPXD 400

Condition: Used

Material: Hastelloy - C22

Filtration Area: 4.2 m² (44.7 ft²)

Diameter: 2,300 mm (90.6 in)

• Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter
• Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve .integral Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F

Pressure: 6.1 bar (88.5 psi). Temperature: 200 °C (392 °F). Internal Finish: #4 Ra50. Agitation Seal Type: Mechanical. Jacket: Yes. Jacket Pressure: 10.5 bar (152.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 200 °C (392 °F). Agitator Cored for Heating/Cooling: Yes.
