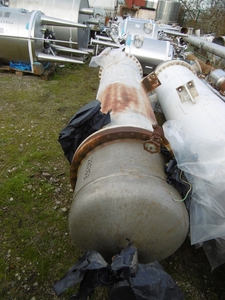

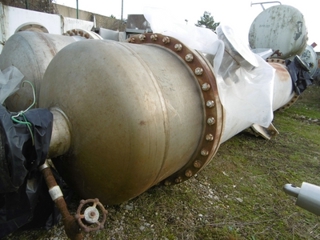

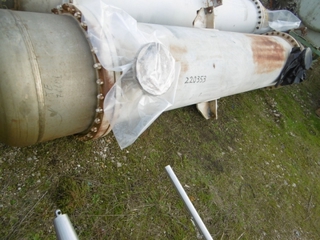

pressure shell side 5 bar @ -10/+120 degrees C ( 670 liter), tube side 5 bar + full vacuum @ -10/+150 degrees C (730 liters) (7) baffles in the shell. (2) 316L stainless steel bolted dished heads.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Mechanica Sardi
Model: BEM 695 x 3000
Condition: Used
Material: Stainless Steel 316
Clad: Yes
Heat Transfer Surface Area: 100 m² (1,100 ft²)
Orientation: Vertical
Rated pressure shell side 5 bar @ -10/+120 degrees C ( 670 liter); tube side 5 bar + full vacuum @ -10/+150 degrees C (730 liters). (2) 316L stainless steel bolted dished heads (7) baffles in the shell Weight 2800 Kg empty
Shell Pressure: 5 bar (72.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 3,000 mm (118.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 533. Tube Diameter: 20 mm (0.79 in). Tube Length: 3,000 mm (118.1 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings include: One top head (1) 6", Bottom head (1) 3" center, (1) 6" in side of head; shell (2) 6". . Capacity: 730 L (192.8 gallons).

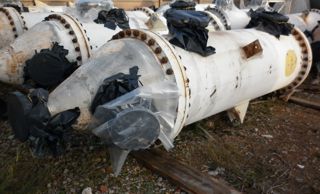

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Meccanica Sardia
Model: BEM
Condition: Used
Material: Stainless Steel 316
Clad: Yes
Heat Transfer Surface Area: 98.5 m² (1,050 ft²)
Orientation: Vertical
Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Meccanica Sardia
Model: BEM
Condition: Used
Material: Stainless Steel 316
Clad: Yes
Heat Transfer Surface Area: 98.5 m² (1,050 ft²)
Orientation: Vertical
Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Meccanica Sardia
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 98.5 m² (1,050 ft²)
Orientation: Vertical

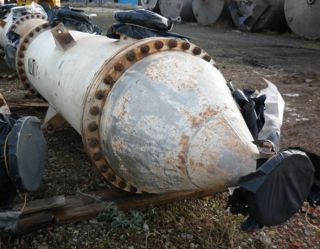

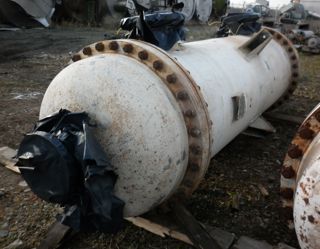

Type: Vertical condenser
pressure tube side 18 bar/full vacuum @ 130 degrees C , 945 liter;
shell rated 12 bar @ 130 degrees C, 895 liter.
316LSS clad Tube sheets
Baffles: 7 304SS baffles in the shell
(2) bolted heads; (1) 316L stainless steel dished top head,
(1) 316L stainless steel bottom cone head.
Weight: Empty weight of 4890 kg.
4145 mm overall length.
Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: - Openings: Top head (1) 6"; Bottom head (1) 6"; Center (1) 6" on cone; Shell (2) 10".
