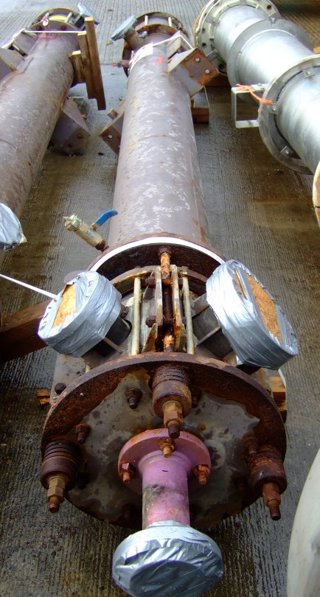

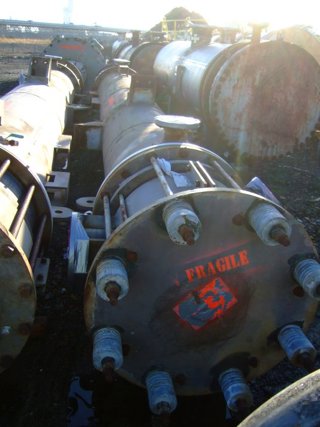

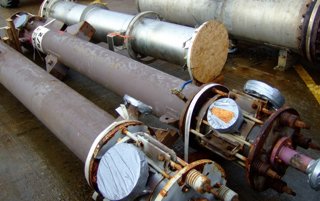

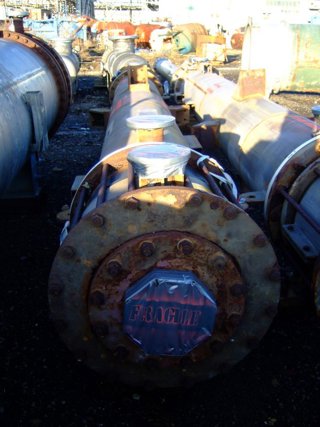

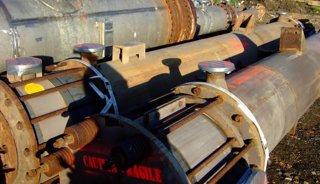

71.7 m² (771.8 ft²) Graphite Shell and Tube Heat Exchanger For Sale IPP# 221519

Condition:

Used

Material:

Graphite

Manufacturer:

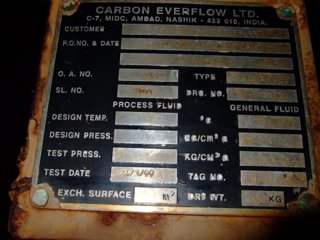

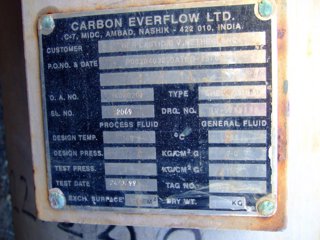

Carbon Everflow ltd (India)

Heat Transfer Surface Area:

71.7 m² (771.8 ft²)

Orientation:

Vertical

Shell Pressure:

7 bar (101.5 psi)

Shell Temperature:

165 °C (329 °F)

Shell Material:

Carbon Steel

Tube Pressure:

1.8 bar (26.1 psi)

Tube Temperature:

165 °C (329 °F)

Tube Material:

Graphite

Vacuum:

Yes

Shell Diameter:

685 mm (27 in)

Head Material:

Carbon Steel

Tube-side Passes:

Tube Number:

169

Tube Diameter:

22.1 mm (0.87 in)

Tube Length:

4,900 mm (192.9 in)

Tube Thickness:

31.8 mm (1.25 in)

Nozzle Schedule:

- Tube side openings: (1) head with 1-14", 1-6", (1) head with 1-6", 1-3", 1-2" - Shell side openings: 2-4"

Additional Info:

overall height 6710mm type shell/tube, Baffles: (19) internal baffles (2) carbon steel flat heads

IPP# 221519, 71.7 m² (771.8 ft²) Graphite Shell and Tube Heat Exchanger For Sale
