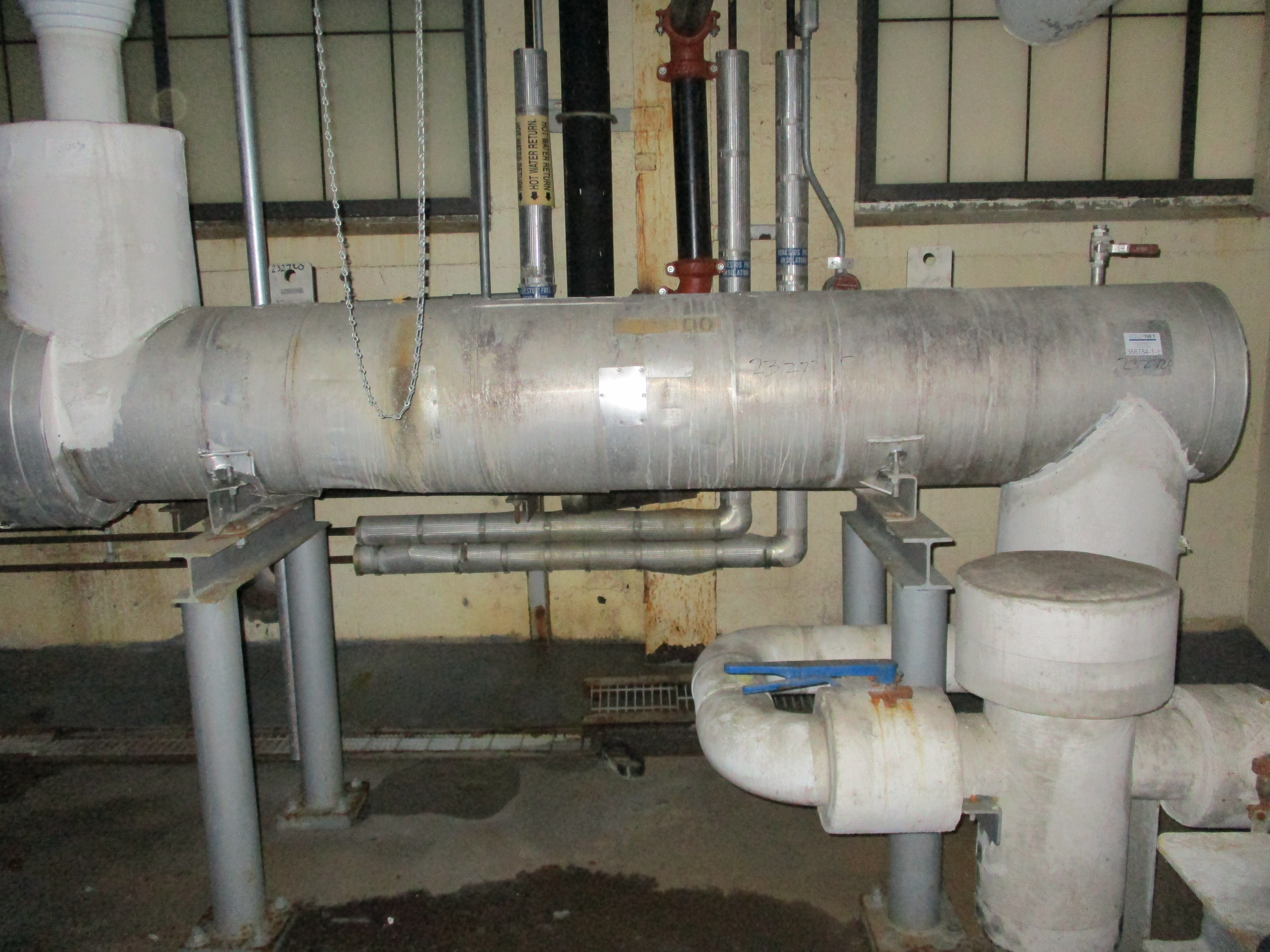

Shell and Tube Heat Exchanger 13.3 m² (143 ft²) Stainless Steel 316 For Sale - IPP# 232720

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 30 m² (323 ft²)

Orientation: Vertical

Tube Pitch: 3/16" (2)316SS dished heads

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Carbon Steel. Tube Pressure: 1.03 bar (15 psi). Tube Temperature: 121.1 °C (250 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 316. Length: 1,350 mm (54 in). Tube Number: 440. Tube Diameter: 15.7 mm (0.62 in). Tube Length: 54 mm (2.1 in). Tube Thickness: 1.6 mm (0.06 in). Nozzle Schedule: Openings include: Shell - (2) 1.5"; Tube Side -Bottom head, 3" side bottom & 3" center bottom, Top has an 8" center nozzle with 90 degrees elbow..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Model: CV-20-120AS

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 6.4 m² (69 ft²)

Orientation: Horizontal

MDMT is 40 psi @ 190 Degrees F for the shell and 40 @ 150 Degrees F.

Shell Pressure: 13.1 bar (190 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Length: 2,600 mm (102 in). Tube Type: U-Tube. Nozzle Schedule: Shell Openings: One 4" and three 1" - Tube Openings: Two 2" sanitary pipe connections..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Model: WC-4C-96BS

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 5.2 m² (56 ft²)

Orientation: Horizontal

heat exchanger with expansion joint. Shell and tubes MDMT are rated for 32 degrees F at 150 psi. Heads are on hinges for ease of cleaning.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 2,850 mm (113 in). Tube Type: Straight Tube. Tube Number: 36. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,400 mm (95 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Nozzles on heads and shell are 2" with four 1" vent & drains.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Model: WC-1AA-72BS

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 0.74 m² (8 ft²)

Orientation: Horizontal

• Features: Expansion joint, single pass

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Hastelloy - C22. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C22. Head Material: Carbon Steel. Length: 2,300 mm (90 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 7. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 19.1 mm (0.75 in). Nozzle Schedule: - Nozzle Sizes: Four 1" shell nozzles, two 2" tube nozzles, two 1" vent and drains.
