Shell and Tube Heat Exchanger 3.3 m² (35 ft²) Stainless Steel 316 For Sale - IPP# 233682

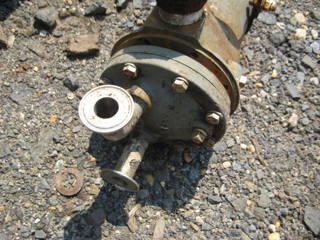

Type: Heat Exchanger

Subtype: Shell and Tube

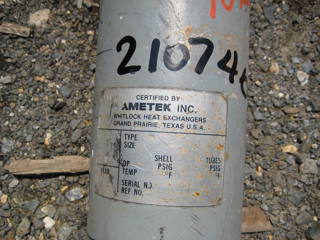

Manufacturer: Ametek

Model: MAHTR-4-B-SS

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 0.93 m² (10 ft²)

Orientation: Horizontal

Shell Pressure: 16.5 bar (240 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 13.8 bar (200 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 1,050 mm (42 in). Tube Type: U-Tube. Tube Number: 38. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.76 mm (0.03 in). Nozzle Schedule: Shell nozzles are (2) 1.5", Tube nozzlea are (2) 3/4"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: CO. A.S.T

Model: BEM

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 253.8 m² (2,750 ft²)

Orientation: Vertical

(re-boiler) carbon steel (Fe-510-2kw) shell, shell 12mm thick expansion bellow, (1) 316L stainless steel coned head, 9mm thick, (1) 316L stainless steel dished welded on head

Shell Pressure: 0.83 bar (12 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 0.55 bar (8 psi). Tube Temperature: 104.4 °C (220 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,250 mm (49 in). Head Material: Stainless Steel 316. Length: 7,000 mm (275.6 in). Tube Number: 343. Tube Diameter: 48.3 mm (1.9 in). Tube Length: 4,900 mm (192 in). Tube Thickness: 3.6 mm (0.14 in). Nozzle Schedule: openings tube side: (1) head with 1-740mm, (1) head with 1-500mm, 1-300mm, shell: 1-150mm, 1-100mm, 1-32mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Mechanica Sarda

Model: BEM

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 98.5 m² (1,050 ft²)

Shell Pressure: 12 bar (174 psi)

pressure tube side 18 bar/full vacuum @ 130 degrees C (945 liter), shell 12 bar @ 130 degrees C (895 liter). 316L stainless steel clad tube sheets (7) 304 stainless steel internal baffles in the shell,Single pass on both sides, (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head, 4145mm overall length.

Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head 1-6", Bottom Head 1-6" (center), 1-6" on side of cone, Shell 2-10",.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Meccanica Sardia

Model: BEM

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 98.5 m² (1,050 ft²)

Orientation: Vertical

• Type: Vertical condenser
• pressure tubeside 18 bar/full vacuum @ 130 degrees C , 945 liter;
• shell rated 12 bar @ 130 degrees C, 895 liter.
• Baffles: (7) 304SS baffles in the shell
• (2) bolted heads; (1) 316L stainless steel dished top head, (1) 316L stainless steel bottom cone head.
• Weight: Empty weight of 4890 kg. 4145 mm overall length

Shell Pressure: 12 bar (174 psi). Shell Temperature: 130 °C (266 °F). Shell Material: Carbon Steel. Tube Pressure: 18 bar (261.1 psi). Tube Temperature: 130 °C (266 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 850 mm (33.5 in). Head Material: Stainless Steel 316. Length: 2,450 mm (97.2 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 535. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,450 mm (97.2 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Openings include: Top head (1) 6"; Bottom Head (1) 6" Center (1) 6" on cone; Shell (2) 10".
