Certification: TUV pressure tube side 8 barg @ 200 degrees C (910 liter) shell -1/3 barg @ 200 degrees C (2350 liter) Volume (tube side): 910 liters Volume (shell side): 2350 liters (2) 321 stainless steel dished heads
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Carl Capito
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 160 m² (1,700 ft²)
Orientation: Vertical

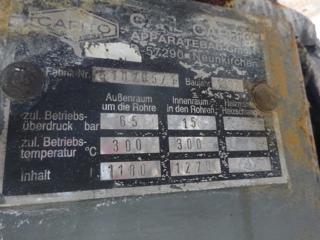

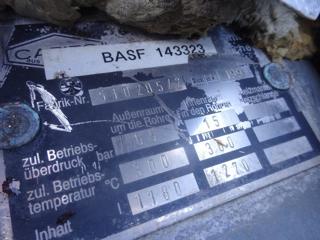

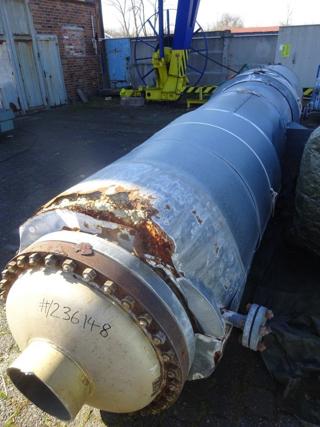

Certification: TUV pressure tube side 15 barg @ 300 degrees C (1270 liter) shell 65 barg @ 300 degrees C (1180 liter) Expansion bellows: Yes (1) 321 stainless steel bonnet head, (1) 321 stainless steel dished head
Shell Pressure: 65 bar (943 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,950 mm (274.1 in). Tube-side Passes: 1. Tube Number: 406. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Carl Capito
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 160 m² (1,700 ft²)
Orientation: Vertical
Shell has expansion bellows
Shell Pressure: 65 bar (943 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Stainless Steel 321. Tube Pressure: 15 bar (217.6 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel 321. Shell Diameter: 800 mm (31.5 in). Head Material: Stainless Steel 321. Length: 6,950 mm (274.1 in). Tube-side Passes: 1. Tube Number: 406. Tube Diameter: 25 mm (0.98 in). Tube Length: 5,000 mm (196.9 in). Tube Thickness: 2 mm (0.08 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 5.6 m² (60 ft²)
Orientation: Horizontal
Repair company: Carbide Shell and Tube (Ponce, PR)3 Shell side has a 4" inlet and a 2" outlet. Tube side has 2" inlets and outlets.
Shell Material: Carbon Steel. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 23.9 °C (75 °F). Tube Material: Stainless Steel 321. Tubesheet Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 1,800 mm (70 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: SMS Butzbach/Germany
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 58 m² (624 ft²)
Orientation: Vertical
(1) 321 (1.4541) stainless steel head
Shell Pressure: 1 bar (14.5 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel 321. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel 321. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 6,100 mm (239.8 in). Tube Type: U-Tube. Tube Number: 78. Nozzle Schedule: openings tubeside: dished head with 2-80mm, shell: 1-300mm, 1-100mm, 1-32mm, top 2 x 80 mm.
