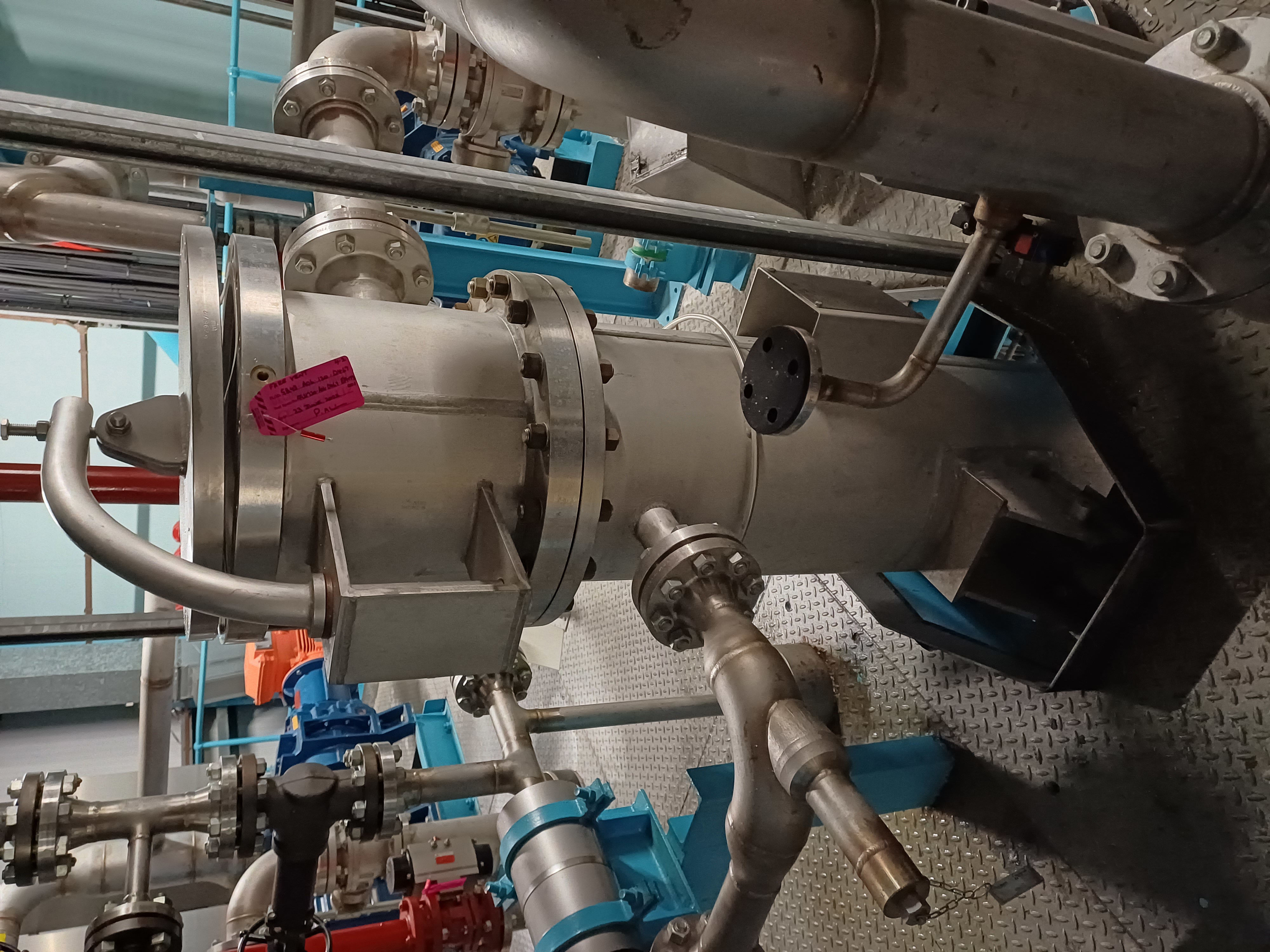

design pressure tube side -1/10 barg @ -28/185 degrees C (175 liter),
shell -1/10 barg @ -28/185 degrees C (120 liter),
rated heat load 4.3kW
(1) 316L stainless steel channel head with bolt flat end plate,
(1) 316L stainless steel bonnet head
(12) internal baffle plates,
design code: ASME VIII DIV I module G/CAT IV, CE0036, TUV
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: CALORIFER AG
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 21.6 m² (232.5 ft²)
Shell Pressure: 0.15 bar (2.2 psi)
Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 321. Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Nozzle Schedule: - Openings (tube side): (1) DN15, (3) DN 25 - Openings (shell side): (2) DN 900. Capacity: 126 L (33.3 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: CALORIFER AG
Condition: Used
Material: Stainless Steel 321
Heat Transfer Surface Area: 76 m² (818 ft²)
Shell Material: Stainless Steel 321
shell heater bank (calorifier) design pressure jacket 0,15 bar @ 250 degrees C design pressure tubeside 25 bar @ 250 degrees C, volume 260 liter, with welded on top and bottom cone section
Tube Pressure: 25 bar (362.6 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 321. Tube Number: 910. Tube Diameter: 14.5 mm (0.57 in). Tube Length: 1,950 mm (77.6 in). Nozzle Schedule: - Tube openings tubeside: (3) 25mm, (1) 15mm. Capacity: 260 L (68.7 gallons).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: SRI
Model: AEM
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 25.2 m² (271.3 ft²)
Orientation: Horizontal
(1) c/steel channel head
Shell Pressure: 8.7 bar (126.2 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel Other. Tube Pressure: 12.8 bar (185.6 psi). Tube Temperature: 210 °C (410 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,100 mm (123 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 2,600 mm (102.4 in). Nozzle Schedule: - Head openings: tubeside - 2-2", shell side - 1-6", 1-3", 2-2", 1-1 1/2".
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Johnson Hunt LTD
Model: AEM
Condition: Unused
Material: Carbon Steel
Heat Transfer Surface Area: 5.2 m² (56 ft²)
Orientation: Horizontal
3/4' diameter x 14 gauge x 8' long tubes 2 heads
Shell Pressure: 33 bar (479 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 33 bar (479 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 203.2 mm (8 in). Head Material: Carbon Steel. Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 37. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,450 mm (96 in). Tube Thickness: 2 mm (0.08 in).
