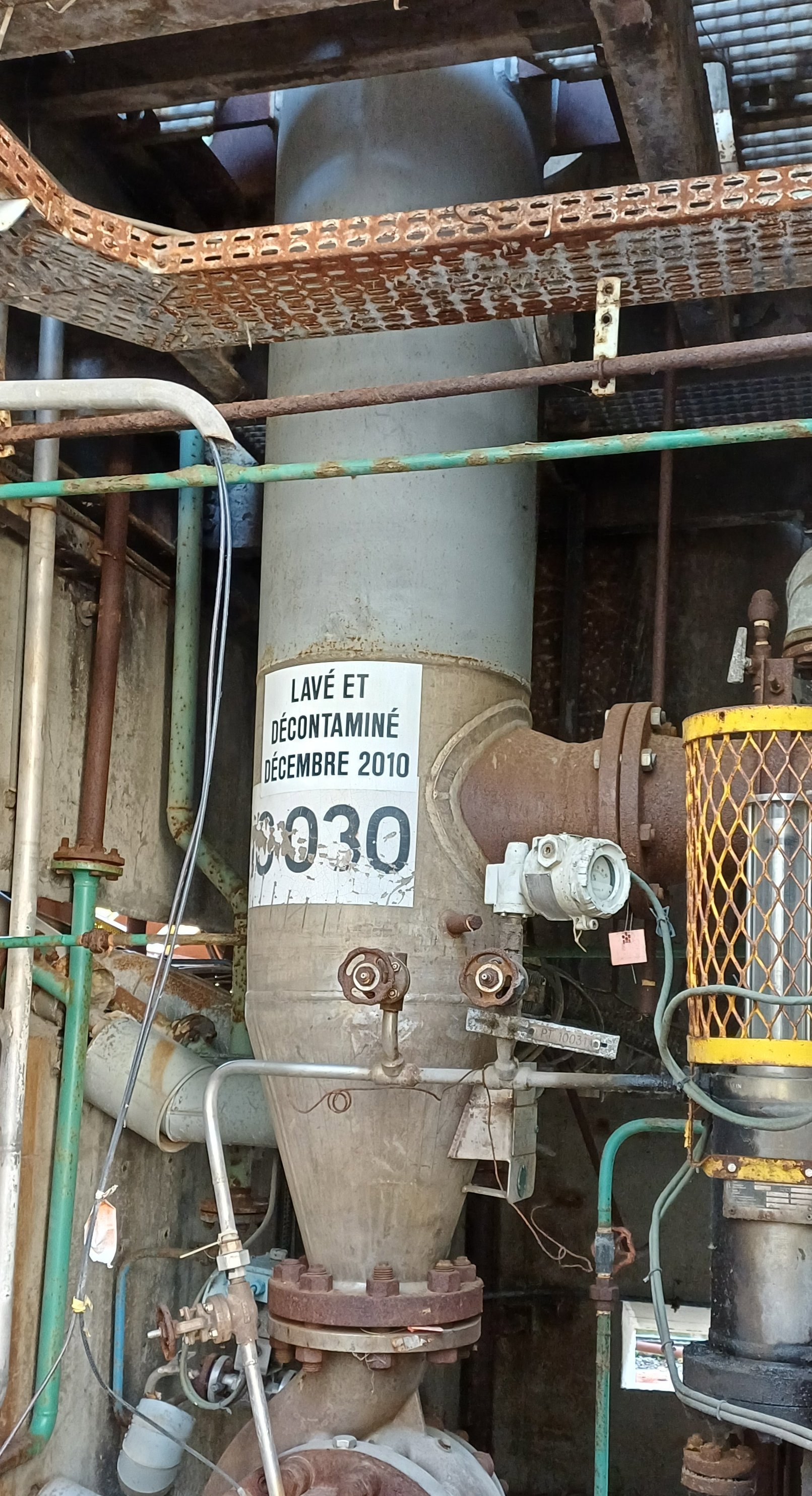

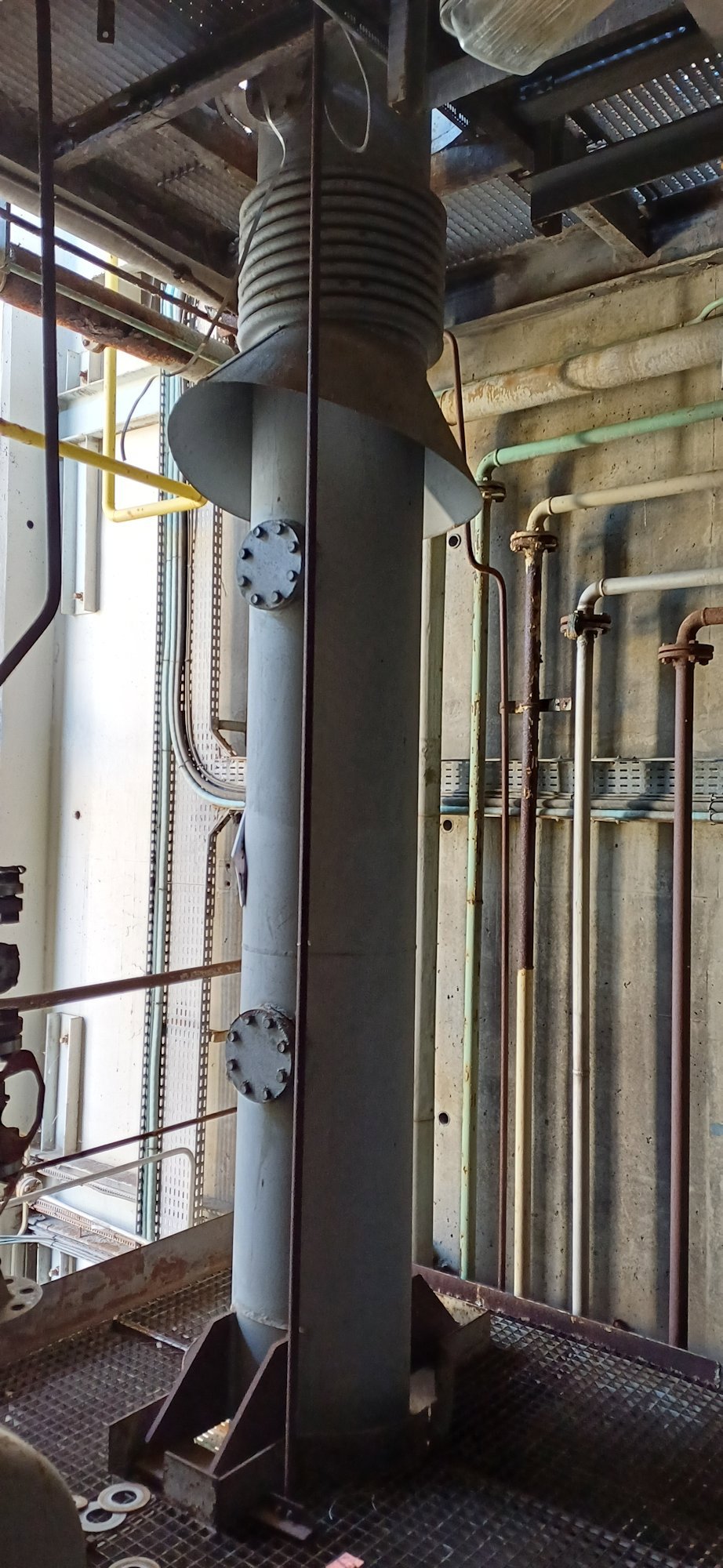

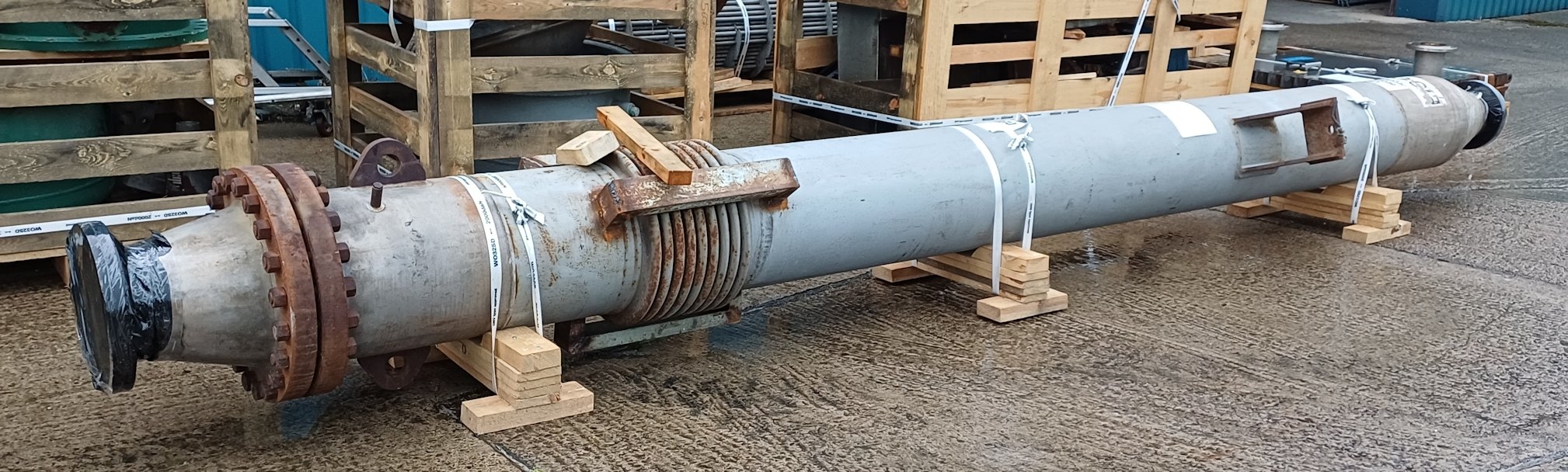

Stainless Steel 316 Shell and Tube Heat Exchanger - IPP# 246468

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Cust-O-Fab

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 556 m² (6,000 ft²)

Orientation: Horizontal

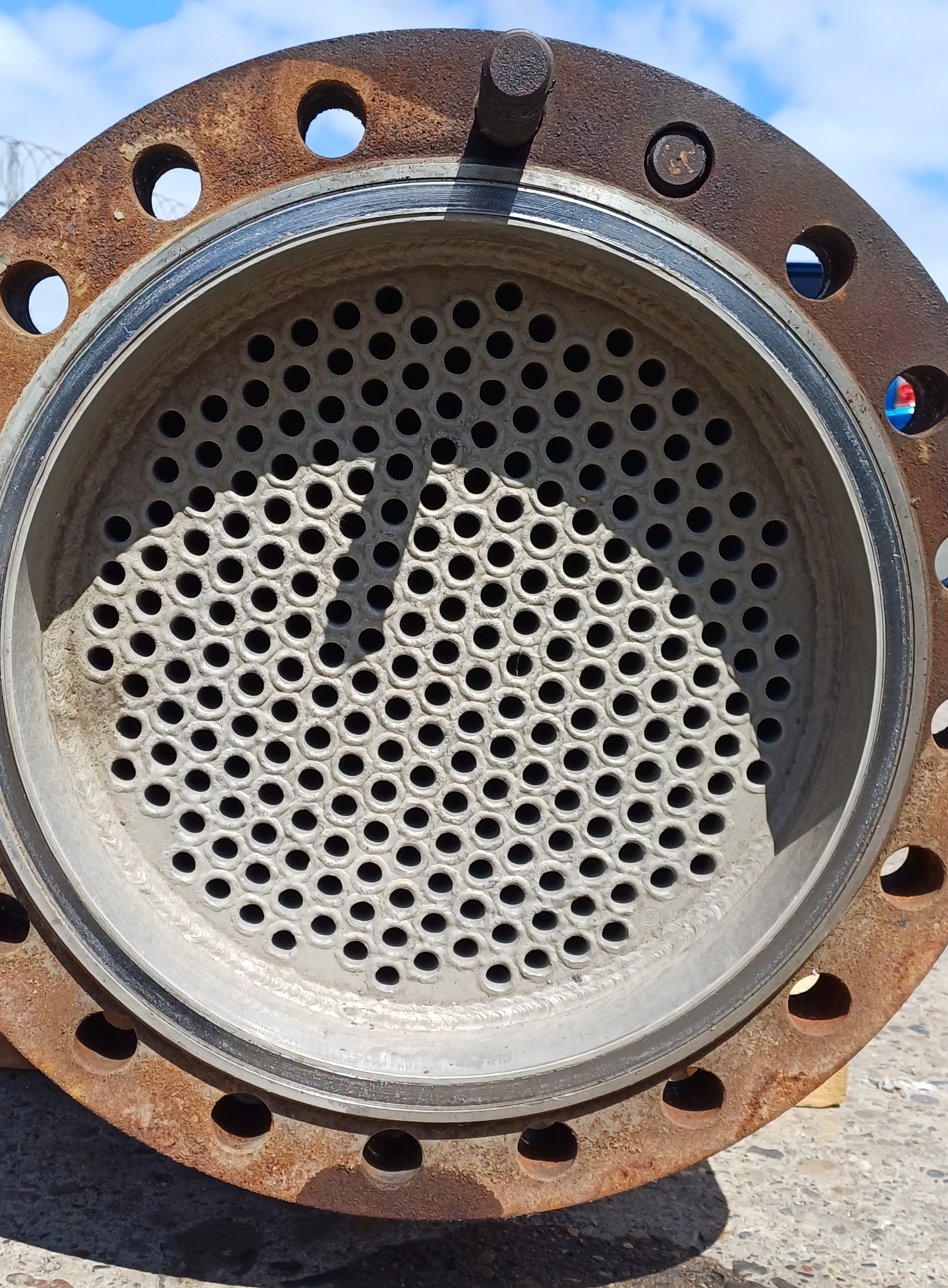

• 1248 straight "Lo FIN" finned tubes
• 0.75" diameter x 0.065" under fin x approx. 10' long
• Four 4" auxiliary connections
• Four 1" vents/drains
• Twelve 3/4" NPT connections.

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Stainless Steel 316. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Head Material: Carbon Steel. Length: 4,150 mm (163 in). Tube Number: 1,248. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,050 mm (120 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule as follows: Shell inlet One 36", shell outlet one 4", channel inlet/outlet are two 6".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: American Standard

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.2 m² (34 ft²)

Orientation: Horizontal

• Shell length: 3'

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 65.6 °C (150 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 152.4 mm (6 in). Length: 914 mm (36 in). Tube Number: 116. Tube Diameter: 9.4 mm (0.37 in). Tube Thickness: 0.51 mm (0.02 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Ketema

Model: I-R-2/BEU/

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 7.9 m² (85 ft²)

Orientation: Horizontal

Size is 10-A-108 Shell side MAWP is 150 psi at 400 degrees F. MDMT; is -20 degrees at 150 psi

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 316. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -28.9 °C (-20 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 3,050 mm (120 in). Tube Type: U-Tube. Tube Number: 57. Tube Diameter: 15.7 mm (0.62 in). Tube Thickness: 1.2 mm (0.05 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: ITT Standard

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.86 m² (20 ft²)

Orientation: Horizontal

Shell is rated for MAWP, 225 psi at 450 degrees F. Shell MDMT is -20 degrees F. at 225 psi. Tubes are rated for MAWP 150 psi at 450 degrees F Tubes MDMT is rated for -20 degrees F. at 150 psi Shell side inlet and outlet are 3" threaded. Tube side inlet and outlet are 2" threaded.

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Shell Diameter: 247.7 mm (9.8 in). Length: 914 mm (36 in).
