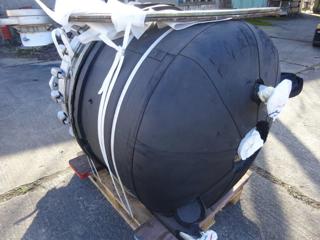

Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761

  • Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761 Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761
  • Glasslined Tycon AE Batch-Type Agitated Reactor - IPP# 100761
Overview
Reactor
Batch-Type Agitated
Tycon
AE
Used
Glasslined
1,445 L (382 gallons)
Pressure Vessel
3.2 bar (46.4 psi)
Yes
Jacket/Internal Coil
6 bar (87 psi)
200 °C (392 °F)
Carbon Steel
Agitation System
Yes
Mechanical
- Agitator: Equipped with a 3-blade retreat curve impellor agitator and a dry running mechanical seal on the shaft - Motor: 2.5 KW motor, driven by a Reeves variable speed drive with a Ruba gear reducer (Type 332-C-15, SN 78218-1) and an output speed of 20-120 rpm
2.5 kW (3.35 HP)
Finger Baffle
2-finger upward baffle
Dimensions
1,200 mm (47.2 in)
1,000 mm (39.4 in)
Heads
Dish
Dish
Other Specifications
Yes
Inlets & Outlets
- Top: Clamp dished top with a 350mm x 450mm manway and cover, and a 125mm sight glass - Bottom: Welded dished bottom with a 100mm center outlet
Additional Information

jacket rated 6 bar @ -25/+200 deg C.
-Other: Includes a nucerite 2-finger upward baffle with a temperature sensor. Internal rated for 3.2 bar and full vacuum.
jacket 110 liters
