New and Used Equipment

• New Base Reactor Body (with covers) Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With thermowell and dip pipe.
• Internal : Buff polished to 240 Grit.
• External: Buff polished to 180 Grit.
• UNDER FABRICATION, WILL BE FACTORY COMPLETE WEEK OF DEC 15 2025! Support Type: Lugs.

• Body Only, base body
• Four Bosses for agitator.
• Glass type PureGlass (Pharma Grade)
• Exterior Paint :UGE blue Acrylic Polyurethane
• legs with flat plate feet, with 18” clearance bottom nozzle to floor.

UNUSED

Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated, and "U" stamped.

welded dish heads (2:1) 12 mm thick

Coil: 114 mm OD x 4 mm thick,

Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm). Coil heating surface area.

With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug.

20" Manhole with Cover and davit arm assist, one 6" sight glass, Support Type: Lugs.

Octagonal blender/mixer, with a Mirror Polish internal finish. Designed with GMP and sanitary construction, 625" shell diameter 615" shell length 2.5" shell thickness 250" Cone length, 2.5" cone thickness 6" bottom butterfly valve.

• Rated for lethal service.
• Nozzles with Inconel 625 inlay.
• Glasslined beavertail baffle with WIKA TR-10 & PT100 temperature probes.
• Mechanically sealed agitator: FlowServe MD-200 DN140.
• See sales comments for additional options.

• Capacity 300 kg per hour.
• 316SS (product contact), sifter, polished with mirror finish, Multi Mill ,with Bead impact knife blade. Sanitary and cGMP construction.
• 1400 mm height, 330mm diameter, 316 SS perforated screen .5 mm thick, 316SS shaft 38mm diameter x 410mm long,
• 316 SS knife (20 mm x 55 mm x 6 mm thick) frame 304 cladded, (2) 316 ss blade scrapers (20 mm x 20 mm x 50 mm), mechanical seal, w/ charging hopper.
• Hindustan Motor: 2.2KW 3/60/220 w/ VFD Bolted to base plate with caster wheels (4)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit Support Type: Lugs.

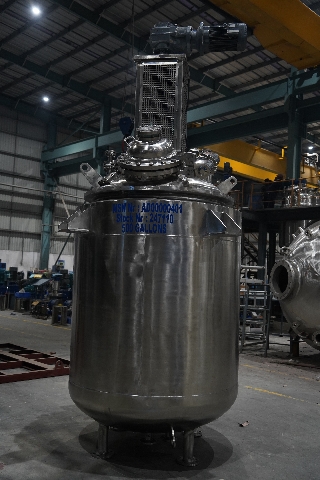

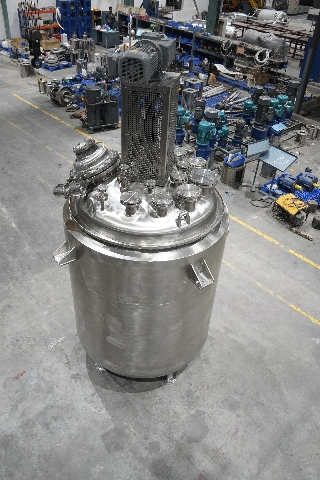

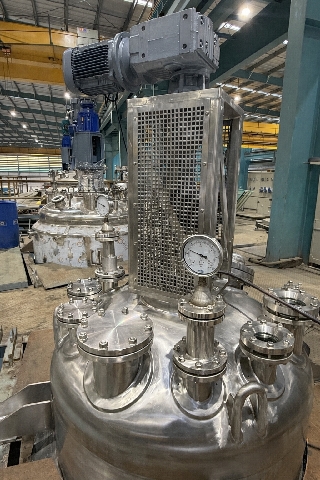

• New Reactor Assembly in construction.
• Motor is VFD rated

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation, 304 SS sheathing completely sealed to 0.4 bar
• Internal: Buff polish to 240 Grit
• External : Buff polish to 180 Grit
• With thermowell and dip tube. Support Type: Lugs.

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and PUF , 304 SS sheathing completely sealed to 0.4 bar
• With Thermowell and dip pipe
• Internal finish: buff polish 240 grit
• External finish Buff polish 180 grit Support Type: Lugs.

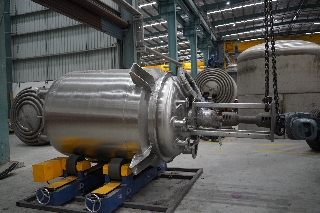

• New assembly in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.
• Motor is VFD Rated.

• New assembly in construction.
• Top Head Mixer Boss' three 1/2" -13 UNC
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.
• Motor is VFD rated.

• Dark Blue Glass.
• New Base Reactor body in construction. Bare reactor price in sales comments.

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With thermowell and dip tube
• Internal : Buff polished to 240 Grit
• External : Buff polished to 180 Grit Support Type: Lugs.

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With dip tube with thermowell
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit Support Type: Lugs.

• Body Only, base body, in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.

• New assembly in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.
• Motor is VFD Rated.

• New assembly in construction.
• Top Head Mixer Boss' three 1/2"-13UNC.
• Glass type SG59 (Artic Blue) Pharma Grade
• Exterior Paint :UGE blue Acrylic Polyurethane
• Supports would be: legs with flat plate feet, with 18” clearance bottom nozzle to floor.
• Motor is VFD rated.

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• Dark Blue Glass
• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems

• New Base Reactor Body (with covers). Bare reactor price in sales comments.
• Can be upgraded w/ drive system to reactor
• Both ASME National Board # and CE Marked
• Interchangeable with UGE Agitation Systems & Pfaudler Agitation Systems
