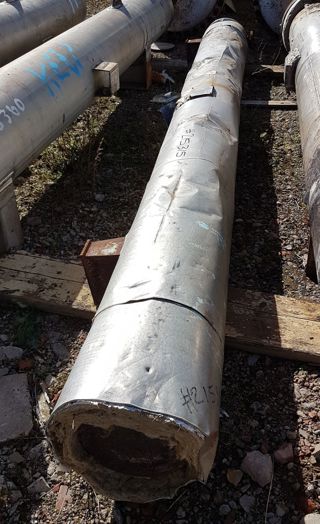

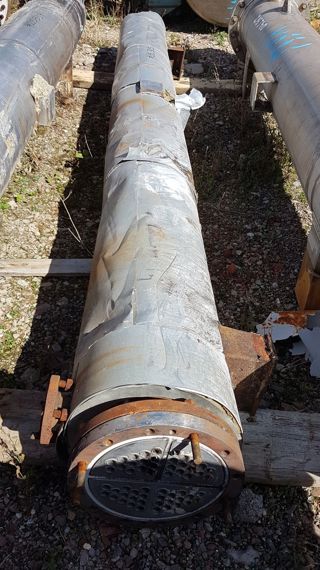

Stainless Steel 316 R. Lords & Sons LTD Shell and Tube Heat Exchanger - IPP# 215362

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 35 m² (377 ft²)

Orientation: Horizontal

working pressure on both sides 5mm hg absolute (0.09 psi) @ 200 degrees C

Shell Pressure: 0.00621 bar (0.09 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 0.00621 bar (0.09 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Austenitic. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 5,181 mm (204 in). Tube-side Passes: 4. Tube Number: 80. Tube Diameter: 28 mm (1.1 in). Tube Length: 5,181 mm (204 in). Nozzle Schedule: - Openings: Tubeside - 2-75mm, Shell - 1-400mm, 1-300mm, 2-50mm (with sump) .

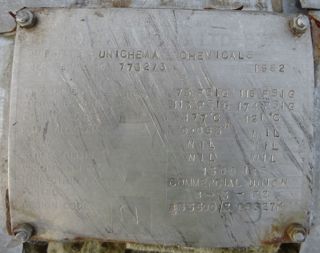

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Heat Transfer Surface Area: 13.8 m² (149 ft²)

Orientation: Horizontal

4-pass
fully insulated and clad

Shell Pressure: 5.17 bar (75 psi). Shell Temperature: 177 °C (351 °F). Shell Material: Carbon Steel. Tube Pressure: 8 bar (116 psi). Tube Temperature: 121 °C (250 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 272 mm (10.7 in). Head Material: Stainless Steel 316. Length: 4,428 mm (174 in). Tube Type: U-Tube. Tube Number: 56. Tube Diameter: 19 mm (0.748 in). Tube Length: 3,956 mm (156 in). Nozzle Schedule: 2-50mm openings, shell with 2-50mm openings.

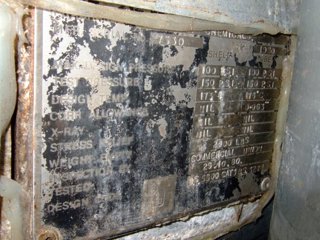

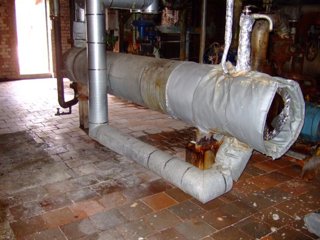

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 57 m² (614 ft²)

Orientation: Horizontal

(1) carbon steel channel head

Shell Pressure: 6.89 bar (100 psi). Shell Temperature: 173 °C (343 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.89 bar (100 psi). Tube Temperature: 173 °C (343 °F). Tube Material: Stainless Steel 316. Shell Diameter: 400 mm (15.7 in). Head Material: Carbon Steel. Length: 3,660 mm (144 in). Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 326. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 3,346 mm (132 in). Nozzle Schedule: - Head openings: - Tubeside: 2-100mm - Shell: 2-75mm, 1-50mm (socket).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 37 m² (398 ft²)

Orientation: Horizontal

• design code: PD5500 Cat 2 (2000)

Shell Pressure: 10.5 bar (152 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8 bar (116 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 316. Length: 3,900 mm (154 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,600 mm (142 in). Nozzle Schedule: tube side - 2-100mm, shell - 2-75mm, 1-50mm.
