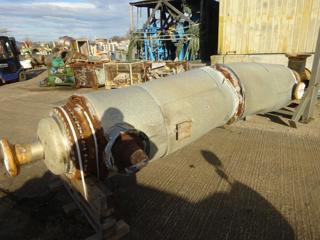

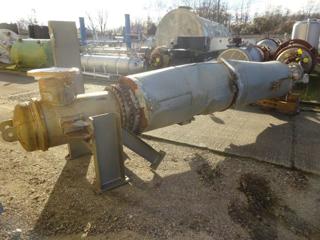

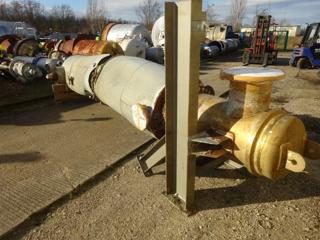

IPP# 236154 - Shell and Tube Heat Exchanger 34 m² (366 ft²) Stainless Steel 304 For Sale

Type: Heat Exchanger

Subtype: Shell and Tube

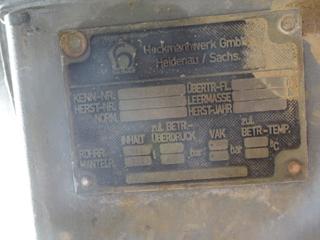

Manufacturer: Heckmannwerk Gmbh

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 59 m² (635 ft²)

Orientation: Vertical

Expansion bellows: Yes
(1) 321 stainless steel (1.4541) top bonnet head,
(1) 321 stainless steel (1.4541) bottom dished head,

Shell Pressure: 8 bar (116 psi). Shell Temperature: 300 °C (572 °F). Shell Material: Carbon Steel. Tube Pressure: 15 bar (218 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 321. Shell Diameter: 508 mm (20 in). Head Material: Stainless Steel 321. Length: 5,636 mm (222 in). Tube-side Passes: 1. Tube Number: 181. Tube Diameter: 25 mm (0.984 in). Tube Length: 4,000 mm (157 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning and Lewis

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 101 m² (1,085 ft²)

Orientation: Horizontal

Job #: 161730

Shell Temperature: 177 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 177 °C (350 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Head Material: Stainless Steel 304. Length: 4,851 mm (191 in). Tube Type: Straight Tube. Tube Number: 402. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell side nozzles: two 4" with 1" vents and drains - Tube side nozzles: 2" and 1.5" with 1/2 " vent and drains.. Capacity: 568 L (150 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Worsham Enterprises

Model: AEL

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 161 m² (1,730 ft²)

Shell Pressure: 5.17 bar (75 psi)

Size 33-144
33" OD x 1 7/8" thick
Expansion joint in shell
(2) bolted SS heads

Shell Temperature: 232 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 5.17 bar (75 psi). Tube Temperature: 232 °C (450 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 864 mm (34 in). Head Material: Stainless Steel 304. Length: 3,565 mm (140 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 558. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,581 mm (141 in). Tube Thickness: 1.65 mm (0.065 in). Nozzle Schedule: Nozzle schedule as follows: Shell side one 6" at expansion joint, one 3" at expansion joint, one 3" and two 1" NPT (vent & Drain). Radius head has one 6" nozzle, Cone head has a 10" nozzle orientated down and a 12" nozzle at the end of cone with a butterfly valve.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: O'Neils Welding and Fab

Model: NEN

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 459 m² (4,939 ft²)

Orientation: Horizontal

(20) baffles on 10" spacing
1" SQ pitch

Shell Pressure: 11.7 bar (170 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 42.5 bar (616 psi). Tube Temperature: 204 °C (400 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,067 mm (42 in). Head Material: Stainless Steel 304. Length: 8,534 mm (336 in). Tube-side Passes: 1. Tube Number: 1,286. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 6,096 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Shell (2) 14"; Heads - (2) 18".
