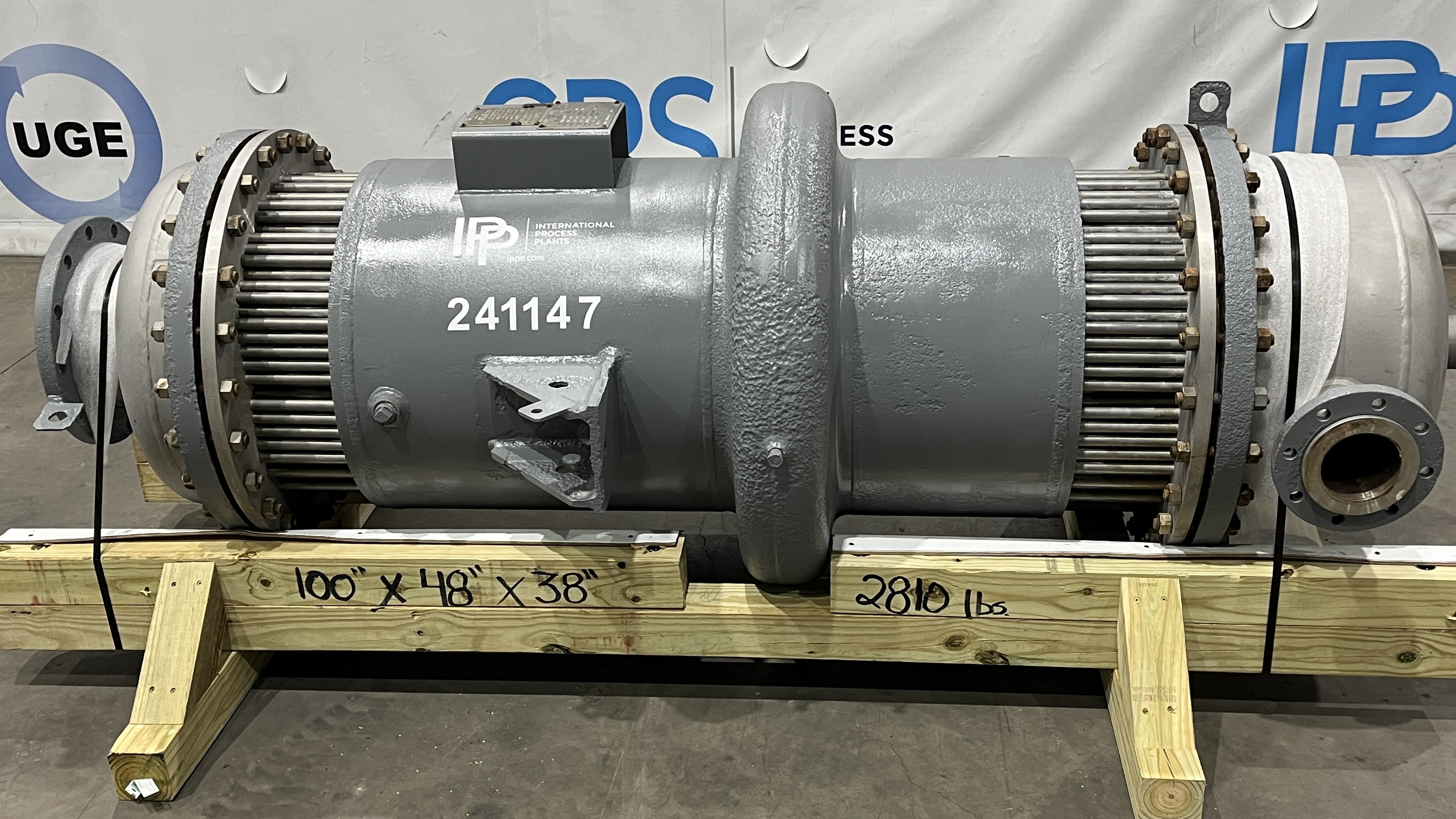

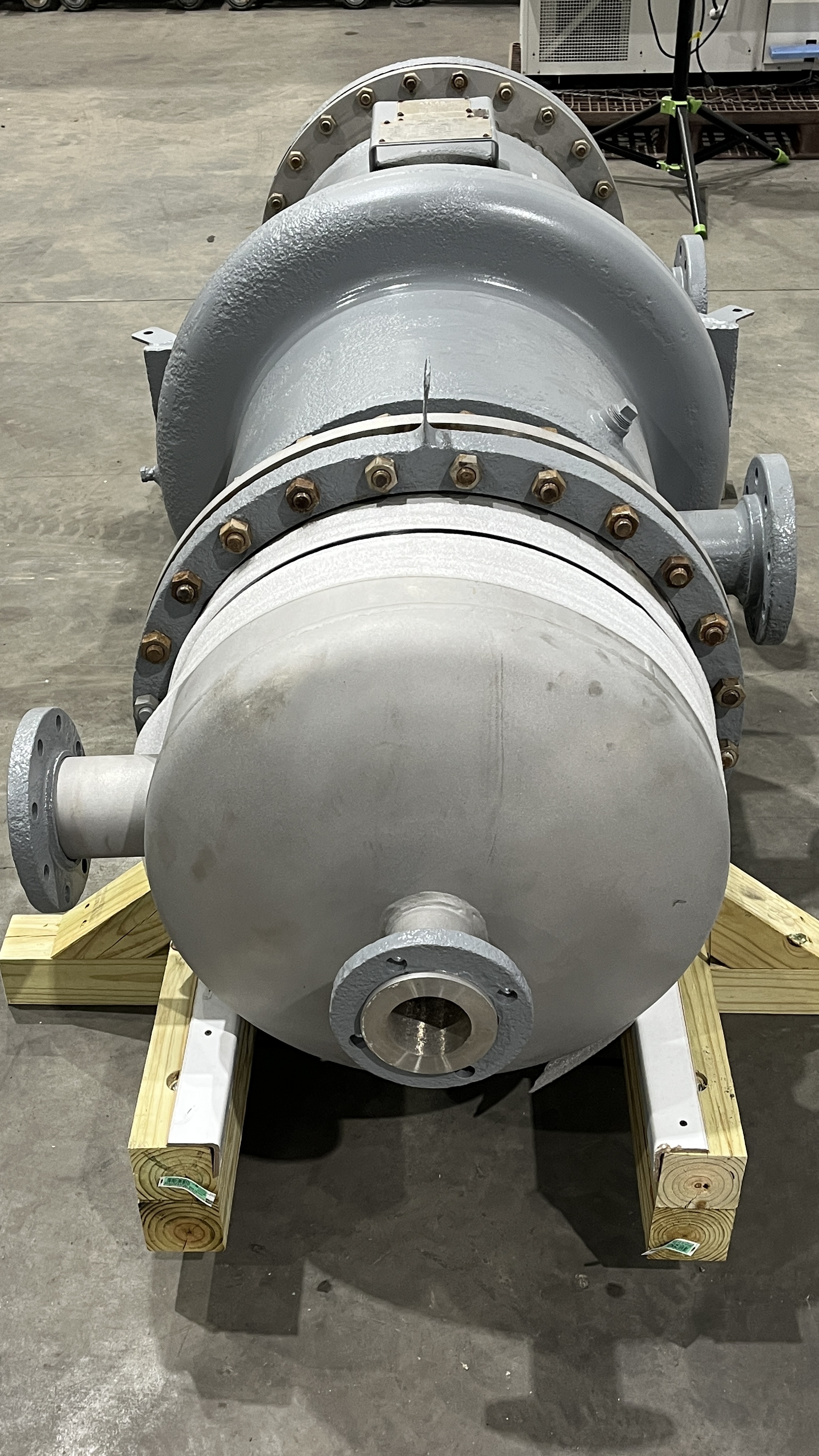

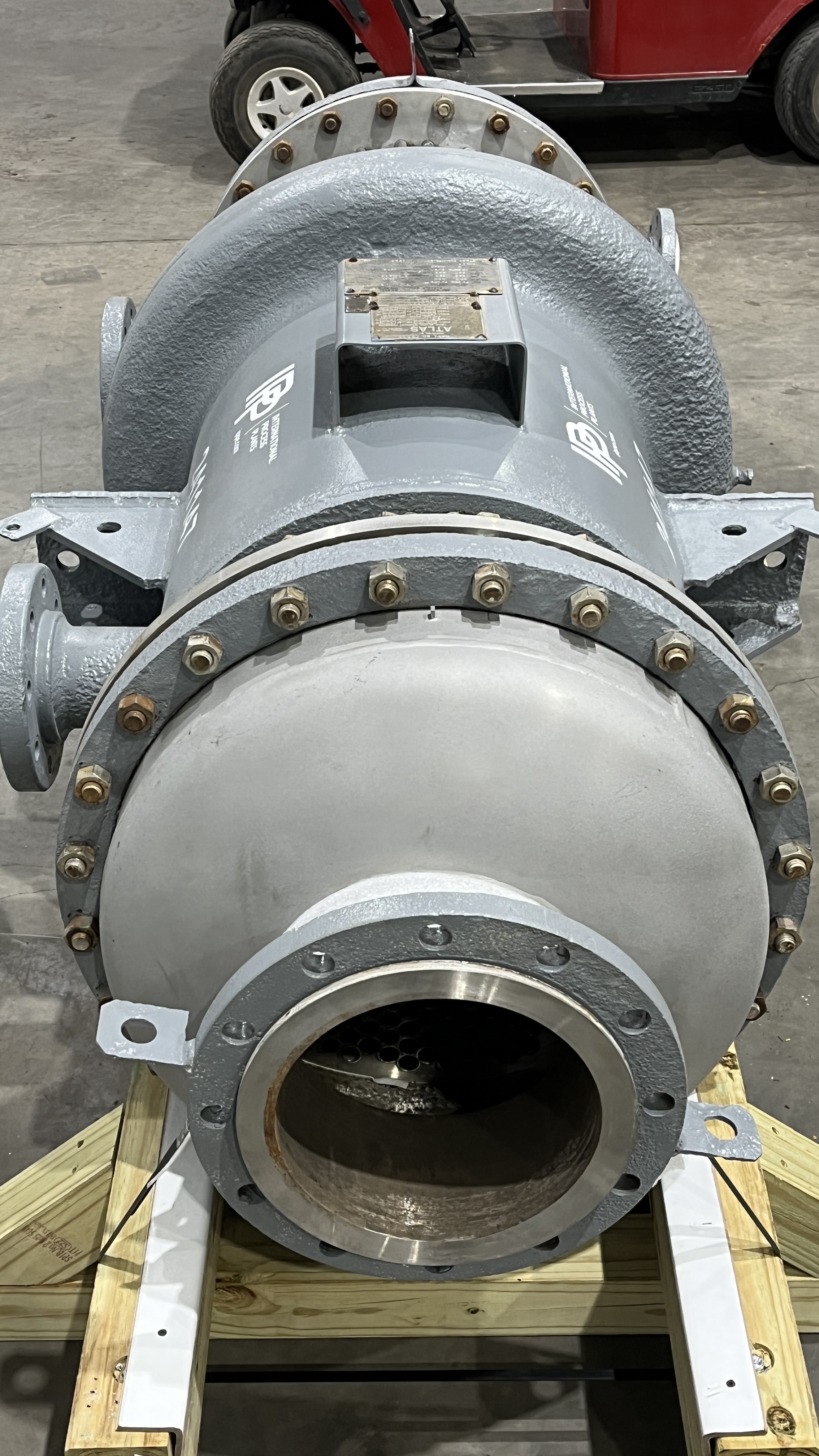

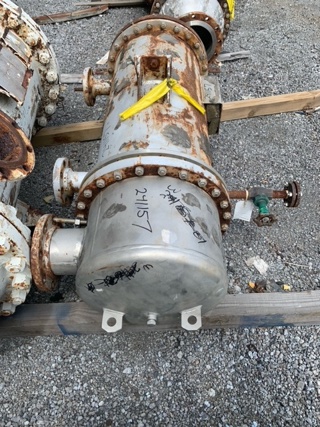

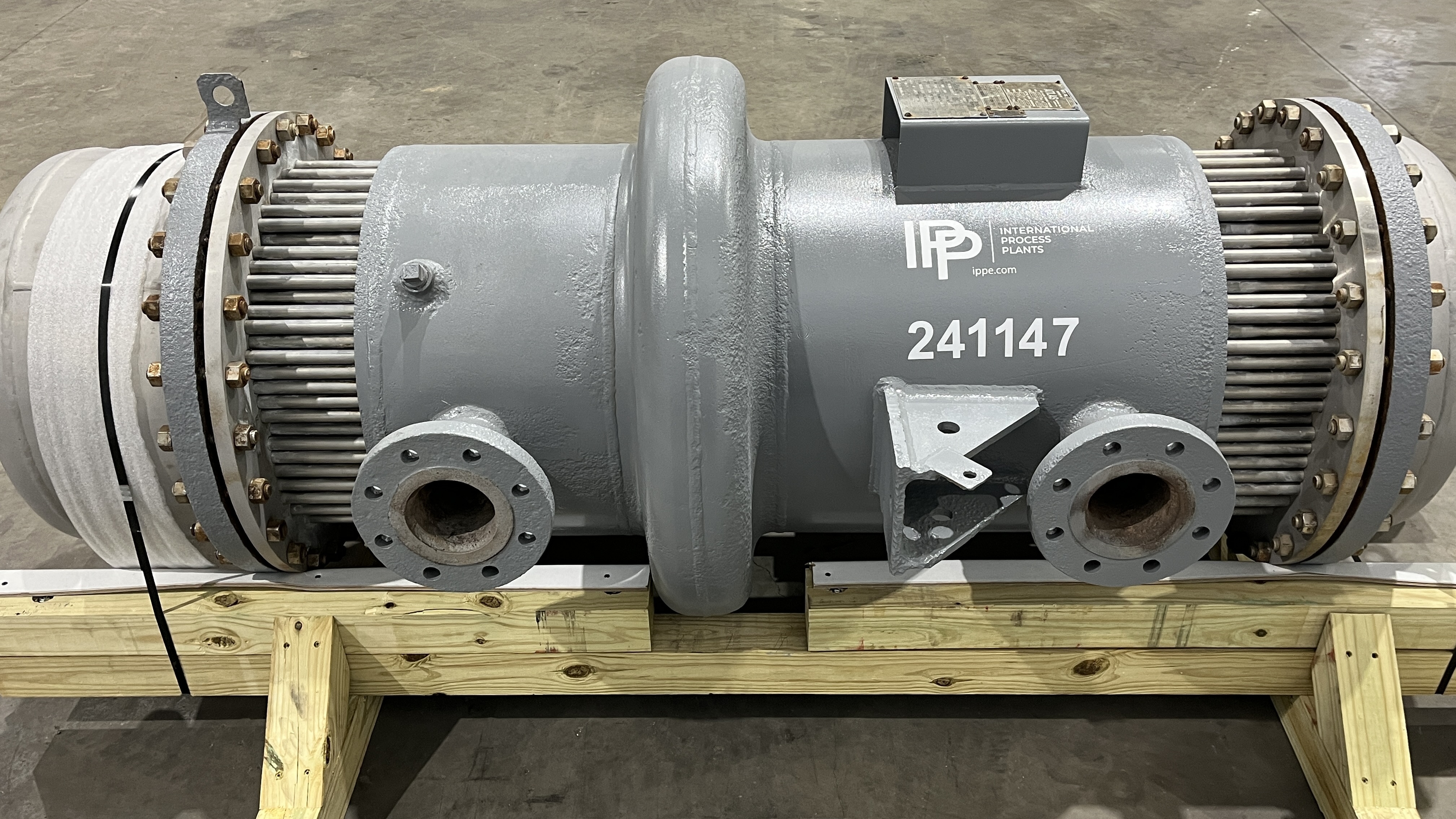

IPP# 241147, 13.9 m² (150 ft²) Carbon Steel Shell and Tube Heat Exchanger For Sale

IPP# 241147, 13.9 m² (150 ft²) Carbon Steel Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Carbon Steel

Manufacturer:

Atlas Industrial

Heat Transfer Surface Area:

13.9 m² (150 ft²)

Orientation:

Vertical

Shell Pressure:

10.3 bar (150 psi)

Shell Temperature:

204.4 °C (400 °F)

Shell Material:

Carbon Steel

Tube Pressure:

10.3 bar (150 psi)

Tube Temperature:

204.4 °C (400 °F)

Tube Material:

Alloy 20

Tubesheet Material:

Alloy 20

Vacuum:

Yes

Shell Diameter:

609.6 mm (24 in)

Head Material:

Nickel

Length:

558.8 mm (22 in)

Shell-side Passes:

4

Tube-side Passes:

4

Tube Type:

Straight Tube

Tube Number:

481

Tube Diameter:

19.1 mm (0.75 in)

Tube Length:

558.8 mm (22 in)

Tube Thickness:

457.2 mm (18 in)

Nozzle Schedule:

(2) 4" inlet/outlet, (2) 1" vent/drain, (1) 1/2" drain, (1) 10" inlet. (1) 3" outlet. (1) 4" outlet
