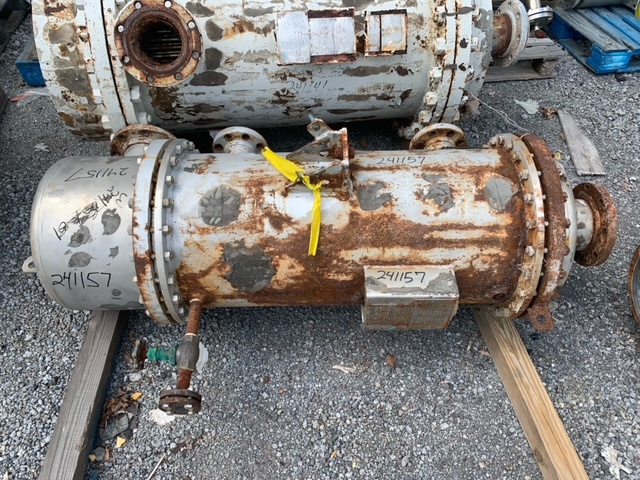

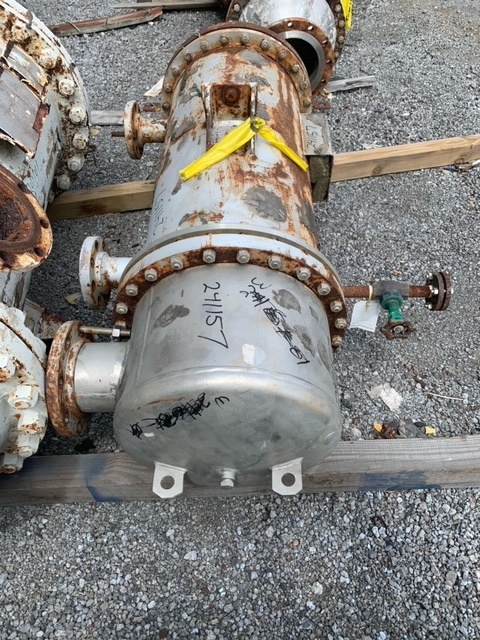

Hastelloy - C276 Atlas Industrial 20-42 BEM Shell and Tube Heat Exchanger - IPP# 241157

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 35 m² (377 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Hastelloy - C276. Length: 558.8 mm (22 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 481. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 558.8 mm (22 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (2) 4" inlet/outlet, (2) 1" vent/drain, (1) 1/2" drain, (1) 10" inlet. (1) 3" outlet. (1) 4" outlet.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Condition: Unused

Material: Carbon Steel

Heat Transfer Surface Area: 28.5 m² (307 ft²)

Orientation: Horizontal

Type BEM. Replacement shell, spare, no heads with the unit.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 662 °C (1,224 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 662 °C (1,224 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 406.4 mm (16 in). Length: 3,575 mm (140.8 in). Tube Type: Straight Tube. Tube Number: 135. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,575 mm (140.8 in). Tube Thickness: 0.08 mm (0.003 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 26.8 m² (289 ft²)

Orientation: Vertical

• TEMA size 24-72 Glycol Heater

Shell Pressure: 12.1 bar (175 psi). Shell Temperature: 190.6 °C (375 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 190.6 °C (375 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 609.6 mm (24 in). Head Material: Carbon Steel. Length: 2,159 mm (85 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 211. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,134 mm (84 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: Two 10", One 4", one 3" one 2", one 1.5", three 1", .
