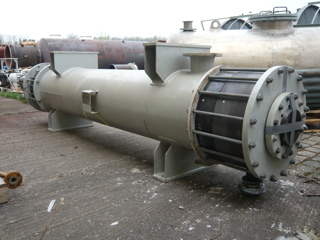

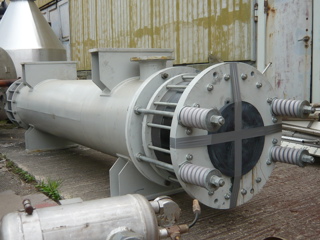

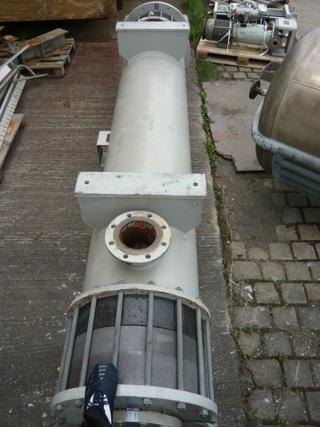

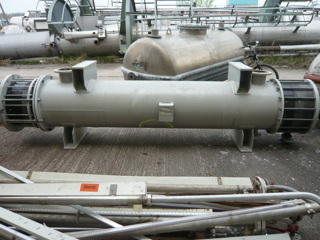

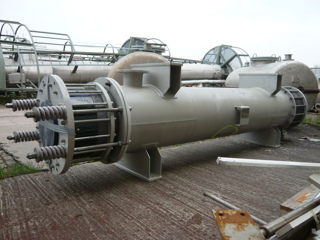

Shell and Tube Heat Exchanger 13.5 m² (145.3 ft²) Graphite For Sale - IPP# 204145

Type: Heat Exchanger

Subtype: Shell and Tube

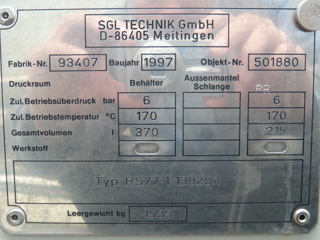

Manufacturer: SGL TECHNIK GmbH

Model: RS77/1/13928.1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 22 m² (236.8 ft²)

Orientation: Horizontal

Shell volume: 370 liter Tube volume: 115 liter

Shell Pressure: 6 bar (87 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Shell Diameter: 570 mm (22.4 in). Nozzle Schedule: Openings: - Head 1: 1-250mm - Head 2: 1-150mm - Shell: 2-150mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Carbone of America Corp

Model: K 110/35

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 #

Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3 m² (32.3 ft²)

Orientation: Horizontal

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 3.5 bar (50.8 psi). Tube Temperature: 71.1 °C (160 °F). Tube Material: Graphite. Shell Diameter: 285 mm (11.2 in). Length: 2,300 mm (90.9 in). Tube Number: 24. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,800 mm (70.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Tube Side Openings: (1) 50 mm, (1) 100 mm - Shell Side Openings: (2) 100 mm, (1) 25 mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3 m² (32.3 ft²)

Orientation: Horizontal

condenser Tube dimensions: (24) 20mm x 32mm OD x 1790mm long

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 5.3 bar (76.1 psi). Tube Temperature: 160 °C (320 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 285 mm (11.2 in). Length: 2,300 mm (90.9 in). Tube Number: 24. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,800 mm (70.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Openings: 1-head with 2-50mm, 1-head with 1-100mm, shell: 2-100mm, 1-25mm.
