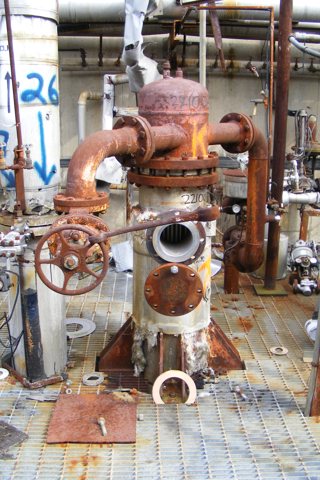

IPP# 221010, 30.9 m² (333 ft²) Stainless Steel 304 Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Stainless Steel 304
Manufacturer:
Camden Alloy Fabricators
Heat Transfer Surface Area:
30.9 m² (333 ft²)
Orientation:
Vertical
Shell Pressure:
12.8 bar (185 psi)
Shell Temperature:
79.4 °C (175 °F)
Shell Material:
Stainless Steel 304
Tube Pressure:
6.9 bar (100 psi)
Tube Temperature:
79.4 °C (175 °F)
Tube Material:
Stainless Steel 304
Tubesheet Material:
Stainless Steel 304
Shell Diameter:
355.6 mm (14 in)
Head Material:
Carbon Steel
Length:
4,877 mm (192 in)
Tube-side Passes:
2
Tube Number:
106
Tube Diameter:
19.1 mm (0.75 in)
Tube Length:
4,877 mm (192 in)
Tube Thickness:
2 mm (0.08 in)
Nozzle Schedule:
Openings include: Shell side (2) 6". (2) 1"; Dished head (2) 4"; Channel head (1) 3/4".
Additional Info:
18' 7.875" OAL. (8) 304SS Baffles in the shell
