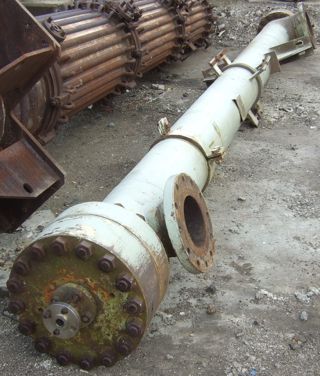

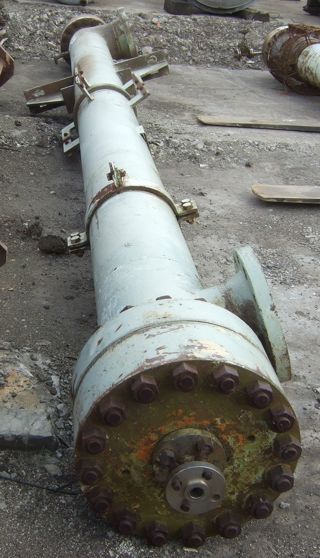

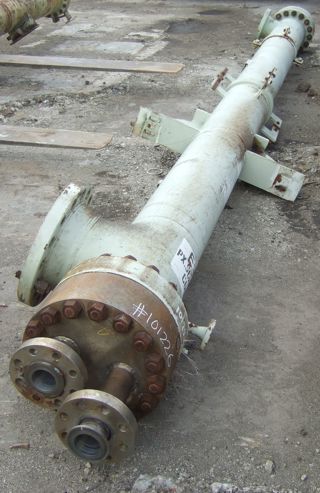

IPP# 226225, 24 m² (258.3 ft²) Titanium Shell and Tube Heat Exchanger For Sale
Add To Quote
Condition:
Used
Material:
Titanium

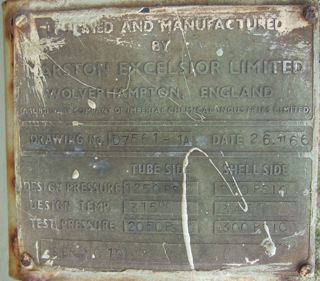

Manufacturer:
Marston Excelsior Ltd
Heat Transfer Surface Area:
24 m² (258.3 ft²)
Orientation:
Vertical
Shell Pressure:
15.2 bar (220 psi)
Shell Temperature:
345 °C (653 °F)
Shell Material:
Carbon Steel
Tube Pressure:
86.2 bar (1,250 psi)
Tube Temperature:
315 °C (599 °F)
Tube Material:
Titanium
Shell Diameter:
300 mm (11.8 in)
Head Material:
Titanium
Shell-side Passes:
1
Tube-side Passes:
1
Tube Diameter:
19 mm (0.75 in)
Tube Length:
5,800 mm (228.3 in)
Nozzle Schedule:
openings tube side: top head with 1-25mm, bottom head with 2-75mm, shell: 1-300mm, 1-200mm, 1-25mm,
Additional Info:
Expansion joint: Yes (2) Titanium flat heads,
