213 m² (2,293 ft²) Titanium Shell and Tube Heat Exchanger For Sale - IPP# 226227

Type: Heat Exchanger

Subtype: Shell and Tube

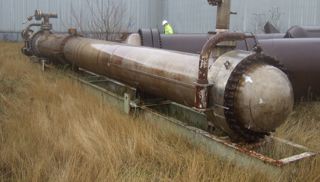

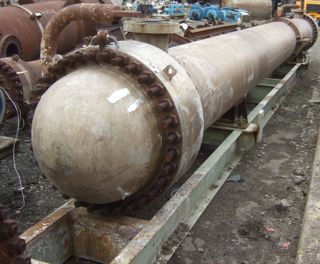

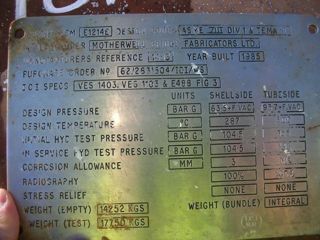

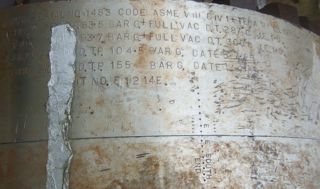

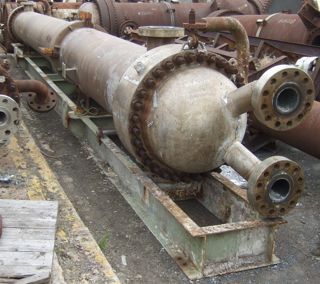

Manufacturer: Motherwell Bridge Thermal Ltd

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 191 m² (2,056 ft²)

Orientation: Horizontal

(2) 304L stainless steel hemispherical heads Design code: V111 DIV.1 & TEMA 'R'

Shell Pressure: 63.5 bar (921 psi). Shell Temperature: 287 °C (548.6 °F). Shell Material: Stainless Steel 304. Tube Pressure: 93.7 bar (1,359 psi). Tube Temperature: 300 °C (572 °F). Tube Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 780 mm (30.7 in). Tube-side Passes: 2. Tube Length: 7,750 mm (305.1 in). Nozzle Schedule: openings tubeside: 1 head with 2-145mm, 1 head with none, shell: 4-150mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Luwa SMS

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 58.4 m² (629 ft²)

Orientation: Horizontal

pressure tube side 30 bar@ 200 degrees C (640 liter), shell side 10 bar @ 200 degrees C (540 liter) shell with expansion bellows (4) internal baffle plates (2) titanium hemispherical heads TUV certified

Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 321. Tube Pressure: 30 bar (435.1 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Titanium. Shell Diameter: 700 mm (27.6 in). Head Material: Titanium. Length: 3,700 mm (145.7 in). Tube Number: 324. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 1.2 mm (0.05 in). Nozzle Schedule: - Openings: - Tube side: (1) head with 1-100mm, (1) head with 1-100mm, 1-80mm - Shell: 2-100mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 14.5 m² (156 ft²)

Orientation: Horizontal

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Titanium. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Titanium. Length: 5,300 mm (208.7 in). Tube Type: U-Tube. Tube Number: 31. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,710 mm (185.4 in). Nozzle Schedule: - Openings: - Tubeside: 2-1 1/2" - Shell side: 2-2".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Industrial Alloy Fabricators

Condition: Used

Material: Titanium

Clad: Yes

Heat Transfer Surface Area: 529.5 m² (5,700 ft²)

Orientation: Horizontal

AL6XN channel heads with R-Stamp(1994)

Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 121.1 °C (250 °F). Shell Material: Stainless Steel 316. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 121.1 °C (250 °F). Tube Material: Titanium. Tubesheet Material: Stainless Steel 316. Shell Diameter: 1,638 mm (64.5 in). Tube Type: Straight Tube. Tube Number: 1,450. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 3,658 mm (144 in). Tube Thickness: 0.51 mm (0.02 in). Nozzle Schedule: - Nozzle Schedule: - Two 32" tube side nozzles (brine inlet & outlet) - One 18" steam inlet - One 4" condensate outlet - One 3" drain - Two 1" drain/vents.
