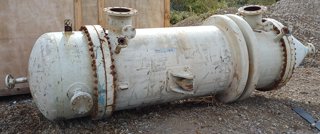

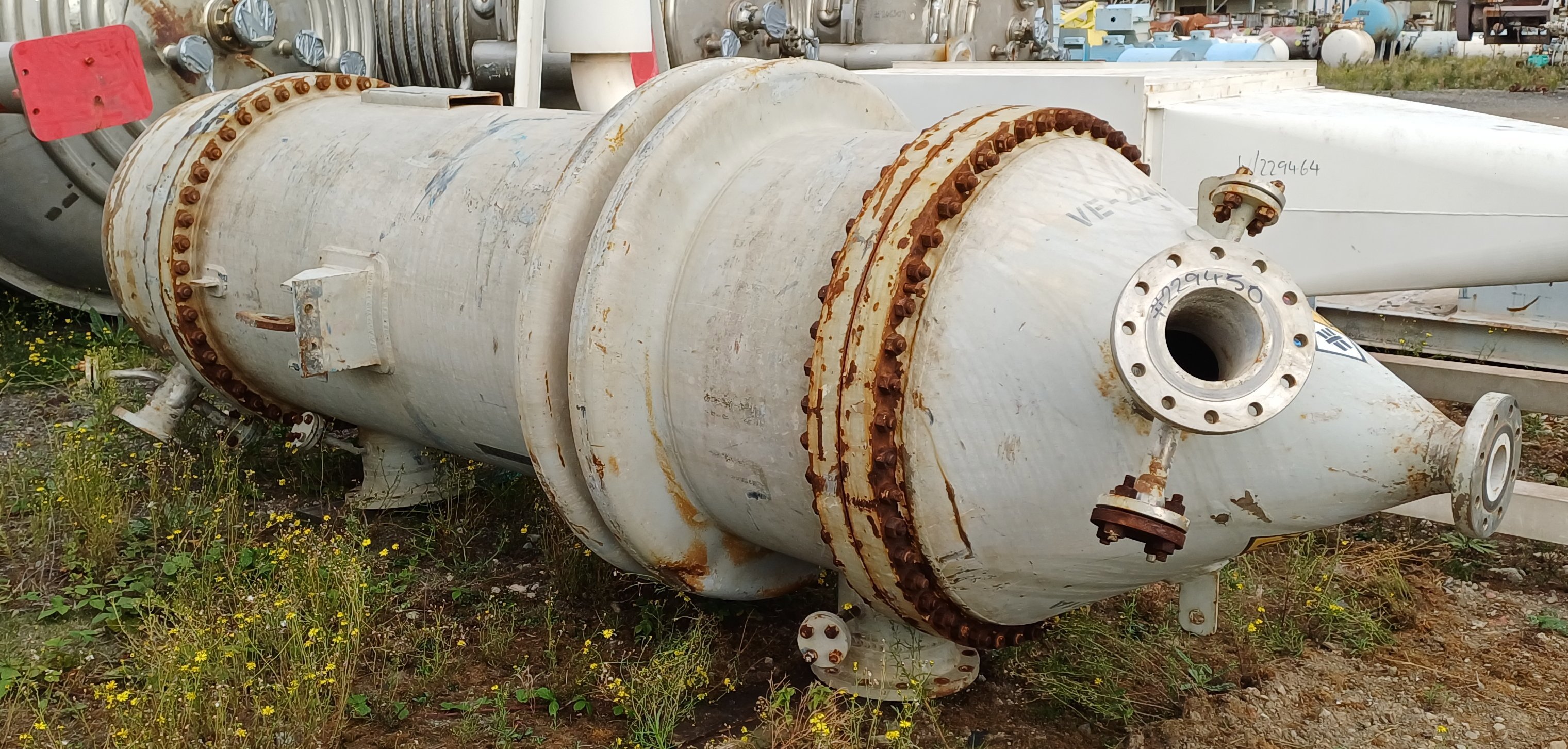

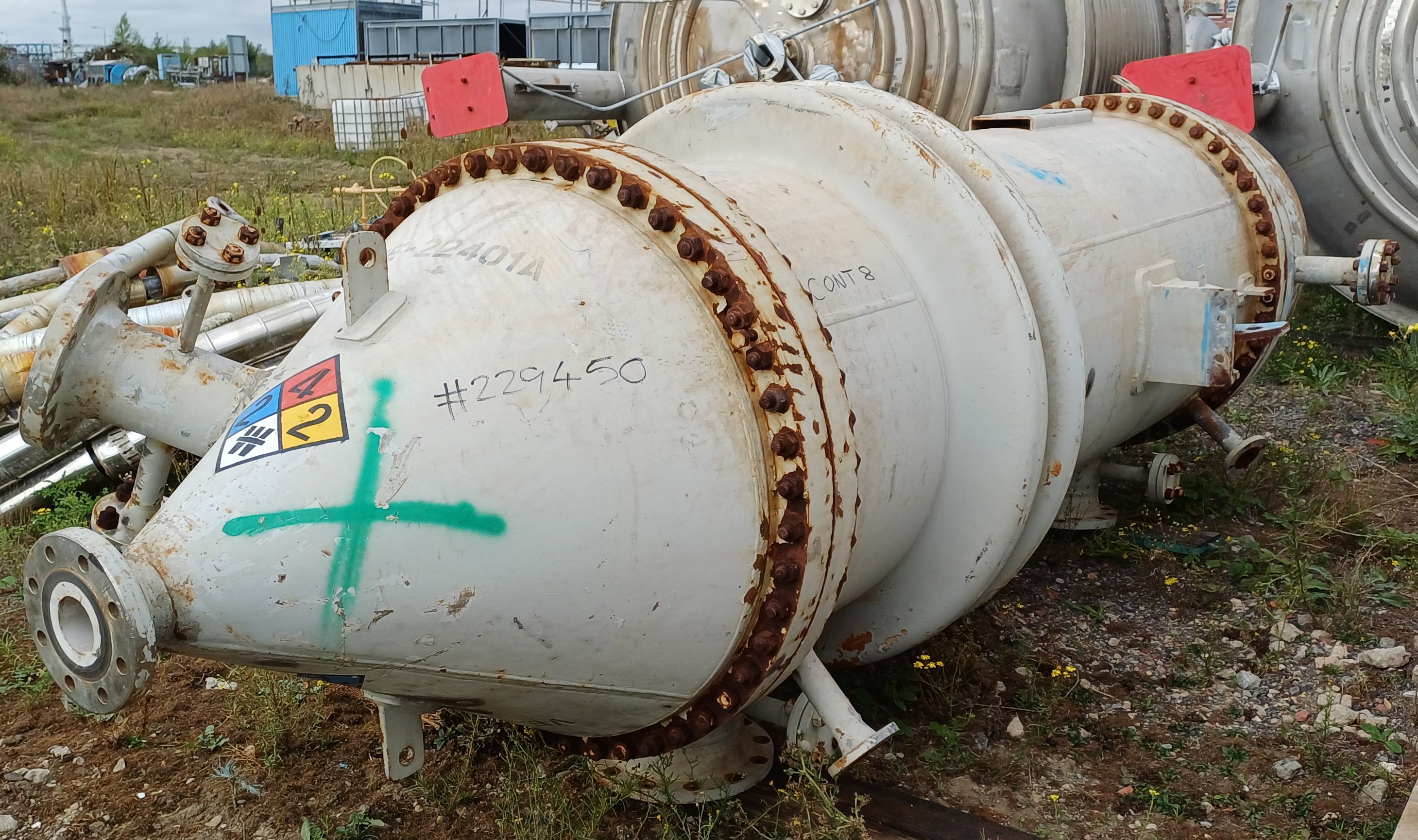

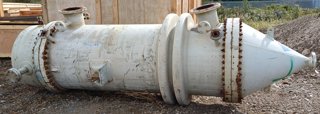

Stainless Steel 316L Shell and Tube Heat Exchanger - IPP# 229450

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sices S.p.A

Model: BEM/1000 x 2700

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 150 m² (1,600 ft²)

Orientation: Vertical

design pressure tubeside 20 bar + full vacuum @ 100 degrees C, shell side 10 barg @ 100 degrees C, duty 1.41 MW, 1-dished head, 1-reduction cone head, shell with expansion joint,

Shell Pressure: 10 bar (145 psi). Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Tube Pressure: 20 bar (290.1 psi). Tube Temperature: 100 °C (212 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 1,000 mm (39.4 in). Head Material: Stainless Steel 316. Length: 4,700 mm (185 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 762. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,700 mm (106.3 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: tube side: dished head with 3-50mm, reduction head with 1-150mm, 1-100mm, shell: 2-250mm, 2-50mm, . Capacity: 1,100 L (290.6 gallons). Heat Exchanger Tube Capacity: 1,600 L (422.7 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 37 m² (398.3 ft²)

Orientation: Horizontal

• design code: PD5500 Cat 2 (2000)

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8 bar (116 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 316. Length: 3,900 mm (153.5 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,600 mm (141.7 in). Nozzle Schedule: tube side - 2-100mm, shell - 2-75mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 8.4 m² (90.4 ft²)

Orientation: Vertical

Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 564 mm (22.2 in). Head Material: Carbon Steel. Length: 4,700 mm (184.8 in). Tube Type: U-Tube. Tube Number: 36. Tube Diameter: 30 mm (1.18 in). Tube Length: 3,950 mm (155.9 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: 2-75mm, shell: 2-500mm, 1-300mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 54.4 m² (586 ft²)

Orientation: Horizontal

316L stainless steel 'U' tubes multi-pass

Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austenitic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).
