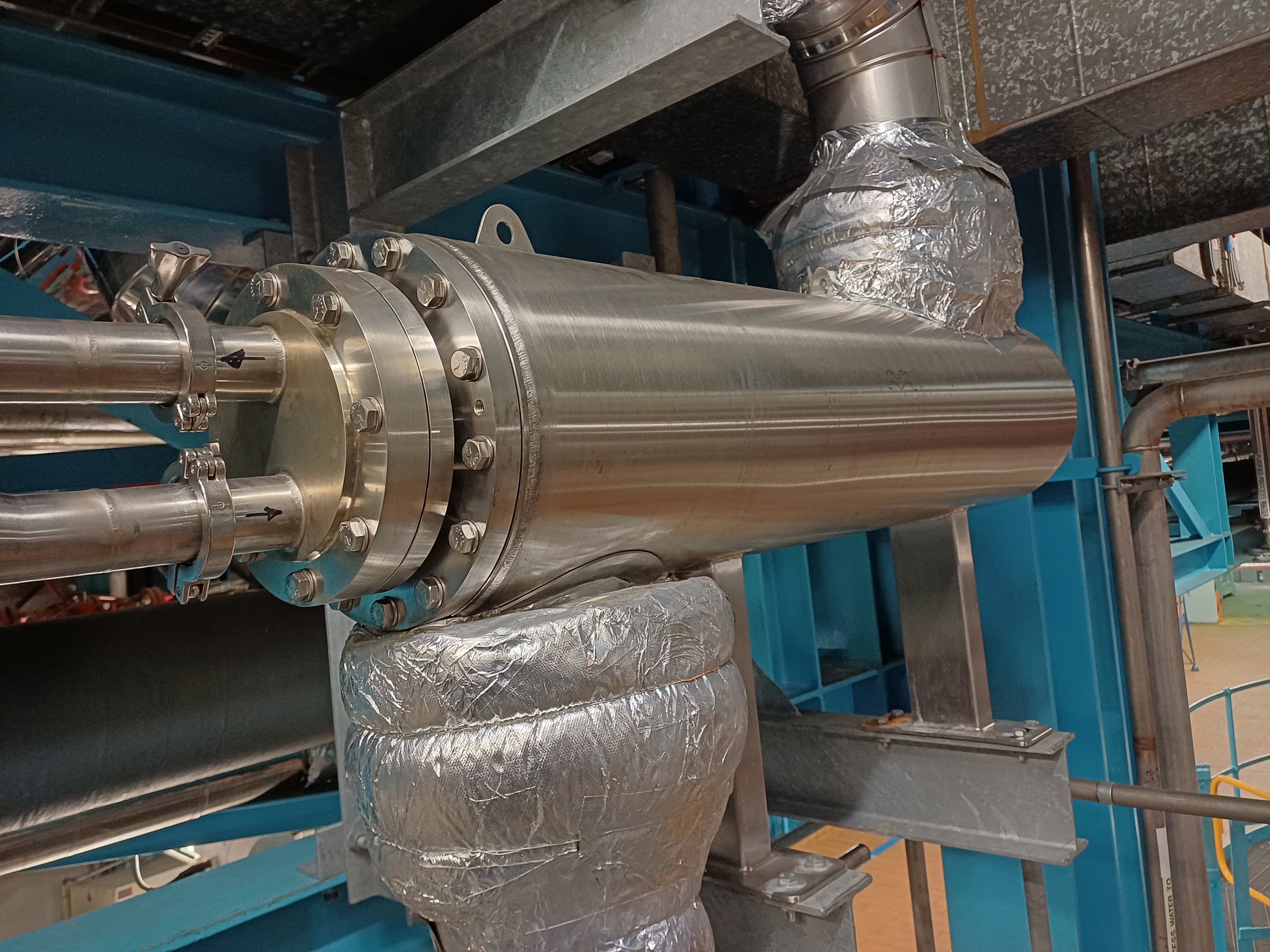

Stainless Steel 316L Alfa Laval Shell and Tube Heat Exchanger - IPP# 242760

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Hart (Process Technology) Ltd

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 37 m² (398.3 ft²)

Orientation: Horizontal

• design code: PD5500 Cat 2 (2000)

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 180 °C (356 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8 bar (116 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 406 mm (16 in). Head Material: Stainless Steel 316. Length: 3,900 mm (153.5 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 80. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,600 mm (141.7 in). Nozzle Schedule: tube side - 2-100mm, shell - 2-75mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: R.Lords & Sons LTD.

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 8.4 m² (90.4 ft²)

Orientation: Vertical

Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 316. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 564 mm (22.2 in). Head Material: Carbon Steel. Length: 4,700 mm (184.8 in). Tube Type: U-Tube. Tube Number: 36. Tube Diameter: 30 mm (1.18 in). Tube Length: 3,950 mm (155.9 in). Tube Thickness: 2.1 mm (0.08 in). Nozzle Schedule: 2-75mm, shell: 2-500mm, 1-300mm, 1-50mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 54.4 m² (586 ft²)

Orientation: Horizontal

316L stainless steel 'U' tubes multi-pass

Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austenitic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austenitic. Tubesheet Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 54.4 m² (586 ft²)

Orientation: Horizontal

multi-pass

Shell Pressure: 3.5 bar (50.8 psi). Shell Material: Stainless Steel Austenitic. Tube Pressure: 3.5 bar (50.8 psi). Tube Material: Stainless Steel Austenitic. Vacuum: Yes. Shell Diameter: 1,100 mm (43.3 in). Head Material: Carbon Steel. Length: 3,500 mm (137.8 in). Tube Type: U-Tube. Tube Number: 180. Tube Diameter: 28 mm (1.1 in). Tube Length: 3,500 mm (137.8 in). Nozzle Schedule: - Openings: tubeside - 2-80mm, 4-15mm (sockets), shell - 1-800mm, 1-600mm, 1-80mm (with sump).
