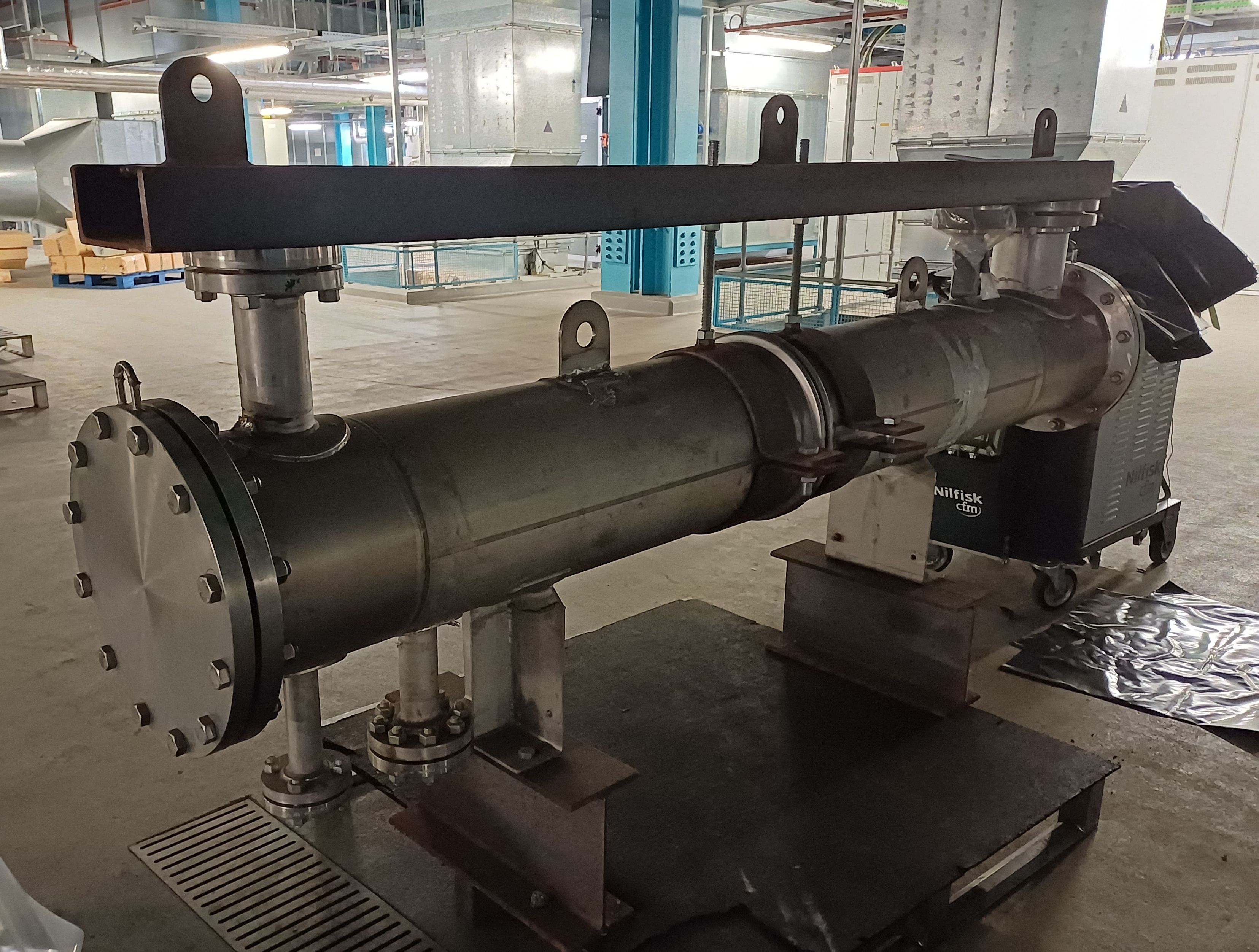

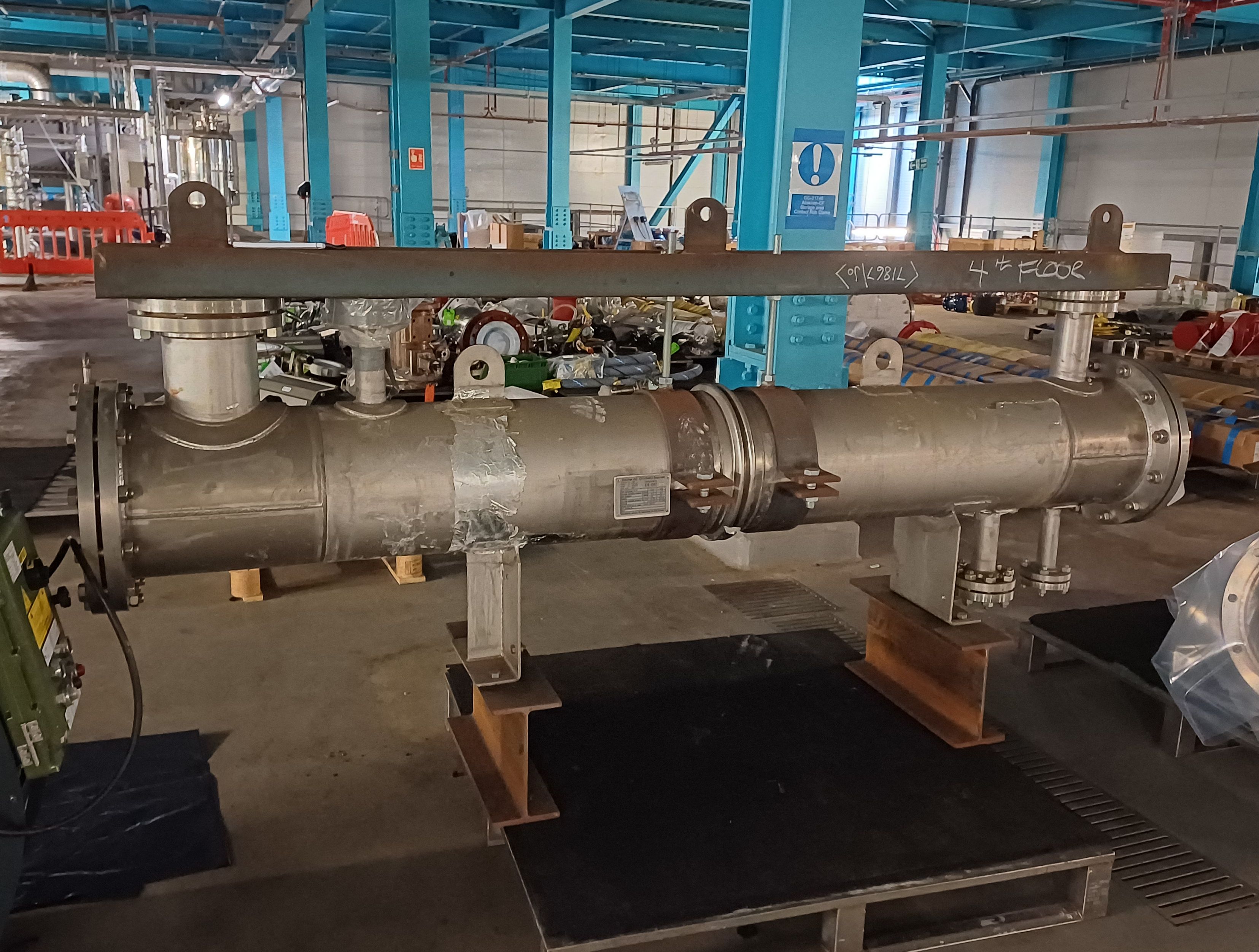

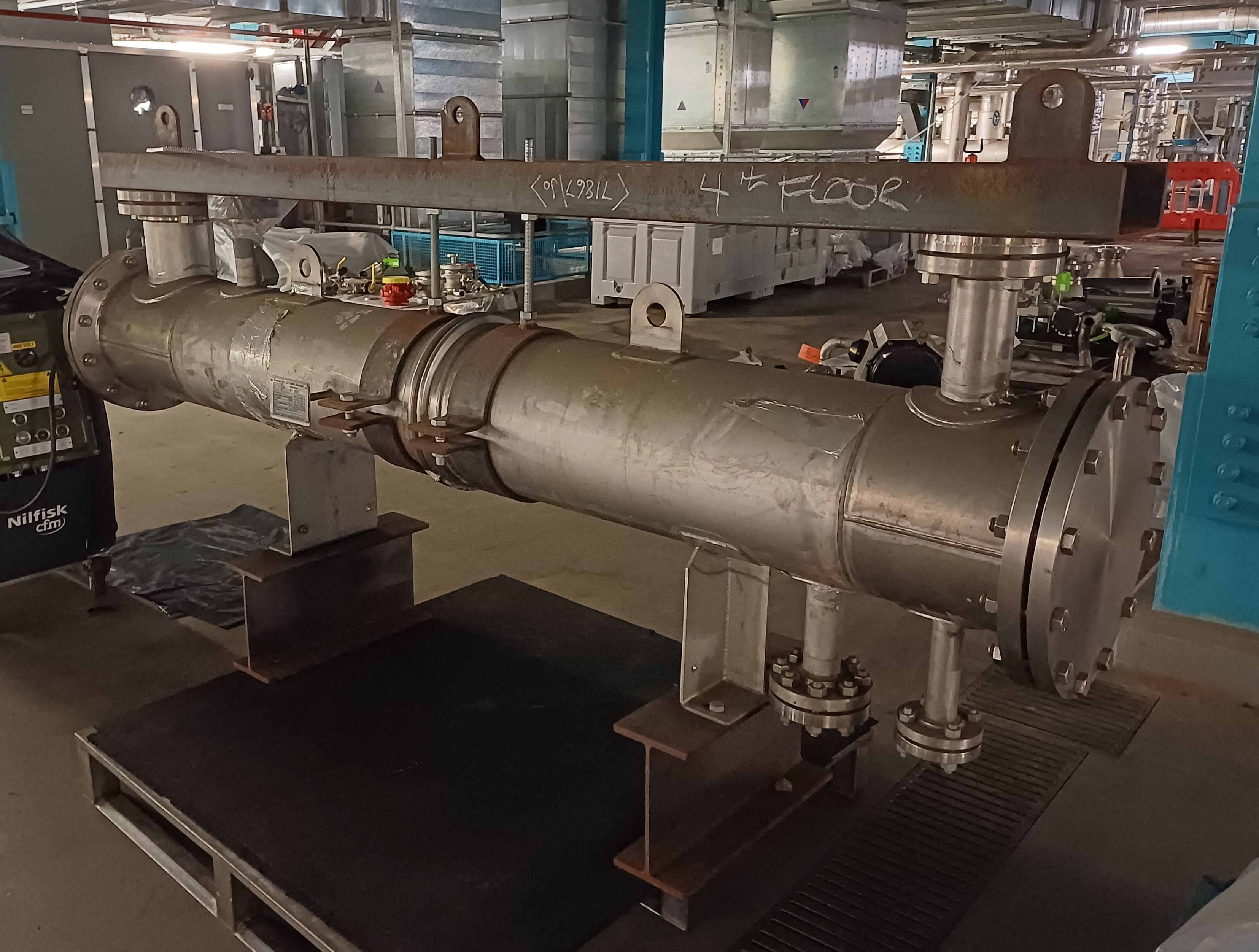

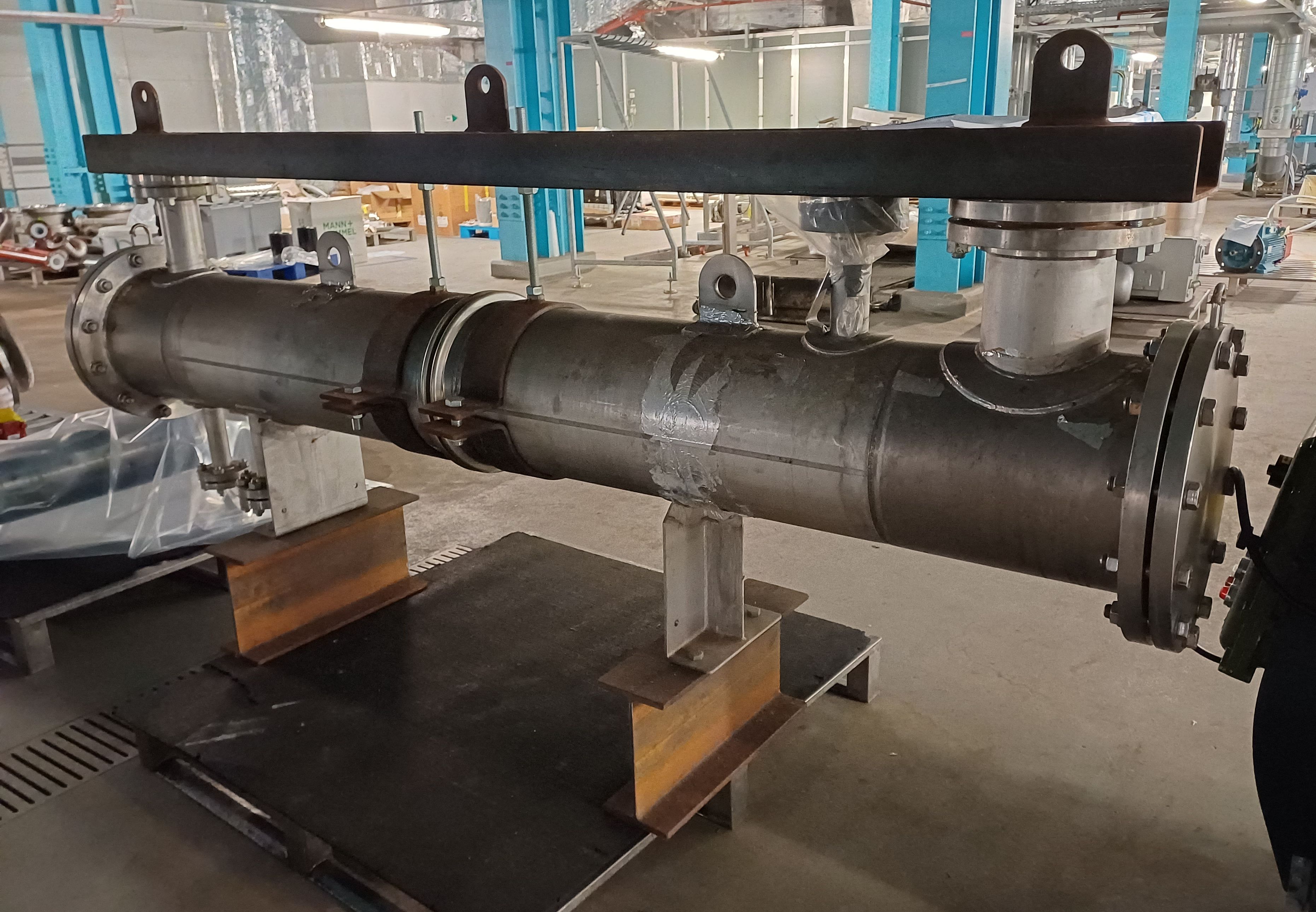

Unused Shell and Tube Heat Exchanger 8 m² (86.1 ft²) Hastelloy - C22 For Sale - IPP# 242968

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Zurcher AG

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Horizontal

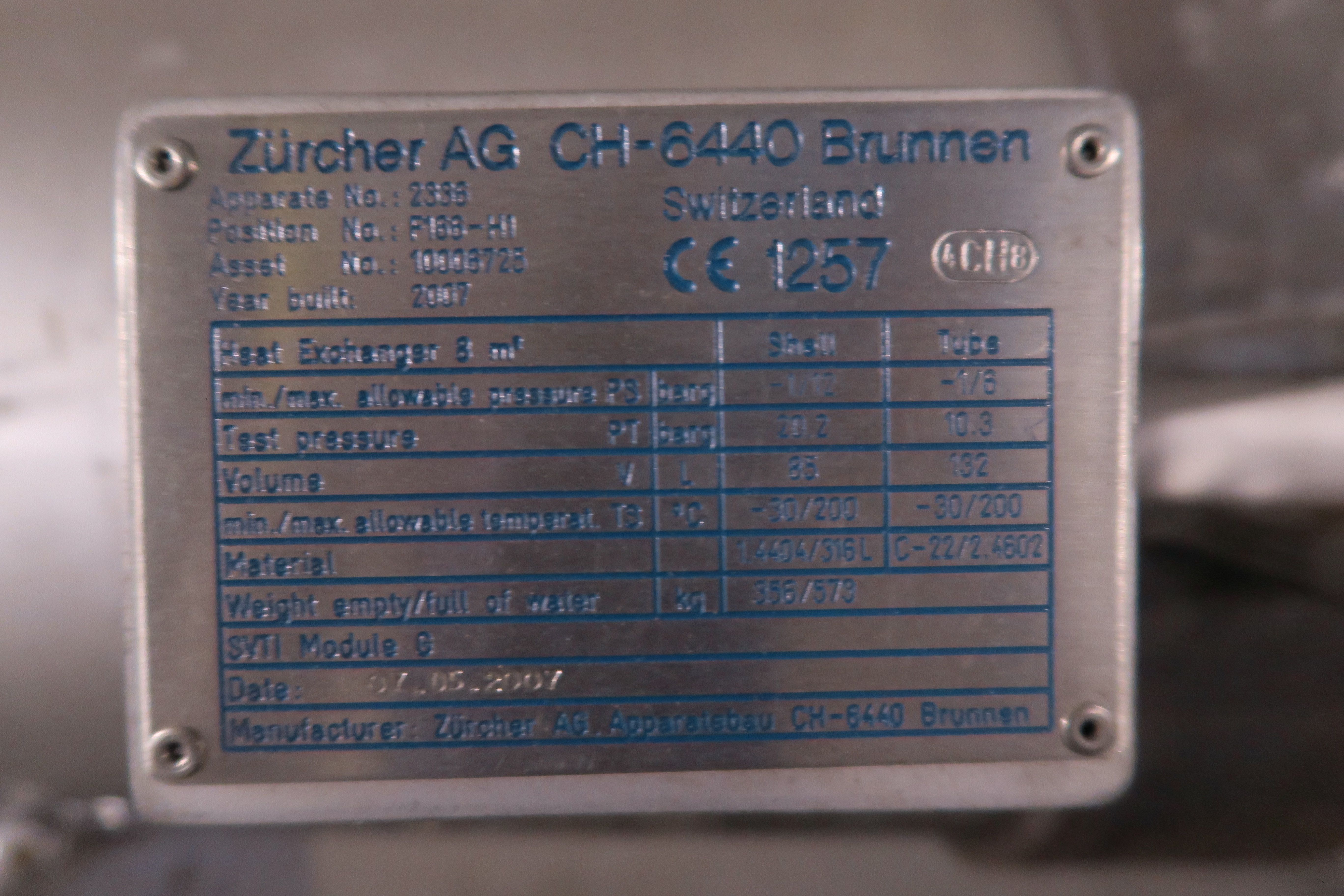

CE0036 design pressure tubeside -1/6 bar @ -30/200 degrees C (132 liter), shell -1/12 bar @ -30/200 degrees C (85 liter) shell with expansion bellows (2) Hastelloy C22 integral channel heads with bolt flat end plate (14) 316L stainless steel internal baffle plates

Shell Pressure: 12 bar (174 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Stainless Steel 316L. Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Hastelloy - C22. Tubesheet Material: Hastelloy - C22. Vacuum: Yes. Shell Diameter: 324 mm (12.8 in). Head Material: Hastelloy - C22. Length: 2,500 mm (98.7 in). Tube Type: Straight Tube. Tube Number: 58. Tube Diameter: 24.4 mm (0.96 in). Tube Length: 1,800 mm (70.7 in). Tube Thickness: 1.6 mm (0.06 in). Nozzle Schedule: openings: 1-head with 150mm, 1-head with 1-75mm, 1-32mm, shell: 2-50mm. Capacity: 217 L (57.3 gallons). Heat Exchanger Tube Capacity: 132 L (34.9 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Yula

Model: WC-1AA-72BS

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 0.74 m² (8 ft²)

Orientation: Horizontal

• Features: Expansion joint, single pass

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Hastelloy - C22. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Hastelloy - C22. Head Material: Carbon Steel. Length: 2,300 mm (90 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 7. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 19.1 mm (0.75 in). Nozzle Schedule: - Nozzle Sizes: Four 1" shell nozzles, two 2" tube nozzles, two 1" vent and drains.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Titan Metal Fabricators

Model: HACS-200-24-4-204 BKUH

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 17.9 m² (193 ft²)

Orientation: Horizontal

kettle type reboiler U tube bundle is 12" diameter x 16' 11" straight side. 403 " long total length around the bend (1) CS bolted dished head for tube bundle Carbon Steel Kettle type re-boiler shell 280" over all length.

Shell Pressure: 9.7 bar (140 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 8.3 bar (120 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Shell Diameter: 610 mm (24 in). Head Material: Carbon Steel. Length: 6,250 mm (247 in). Tube Type: U-Tube. Tube Number: 22. Tube Diameter: 25.4 mm (1 in). Tube Length: 5,150 mm (203 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: Openings: Tube side - (1) 3" inlet, (1) 1" outlet; Shell side - (1) 6" inlet, (1) 8" vapor outlet, (1) 2" liquid outlet.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Ohmstede

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 106.9 m² (1,150 ft²)

Orientation: Vertical

• (1) 304/(1)CS Head "U" stamped 426 tube holes tube pitch 1.25" TRI Four baffles, baffle spacing 2'0".
• Tube sheets are 1.75" thick CS with C-22 Overlay on the tube side.

Shell Pressure: 15.5 bar (225 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.38 bar (20 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Hastelloy - C22. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 762 mm (30 in). Head Material: Stainless Steel 304. Length: 3,150 mm (124.8 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 426. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,250 mm (128 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Shell nozzles: 1.5", 6".
