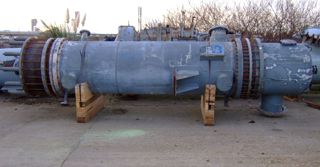

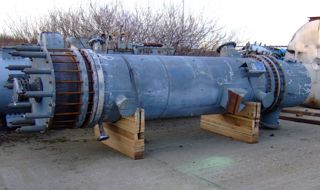

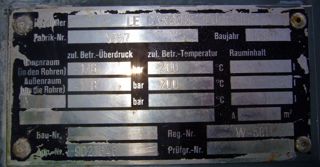

Shell and Tube Heat Exchanger 2 m² (21.5 ft²) Graphite For Sale - IPP# 703780

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Le-Carbone Lorraine

Model: 38"-E01-pytic-8-11"-32/22 dia-6-472

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 160 m² (1,700 ft²)

Orientation: Vertical

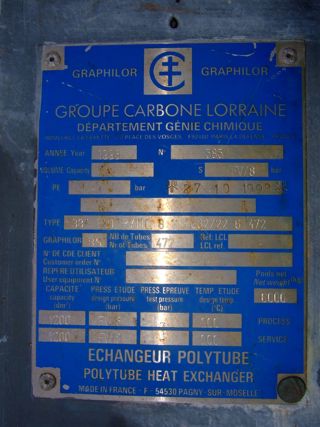

polytube graphite heat exchanger

• Tube and shell volume: 1200 liters 32/22mm diameter x 3410mm long tubes,
• Heads: (1) flat head with springs, (1) glass lined bonnet head

Shell Pressure: 6 bar (87 psi). Shell Temperature: 200 °C (392 °F). Tube Pressure: 6 bar (87 psi). Tube Temperature: 200 °C (392 °F). Vacuum: Yes. Length: 5,450 mm (213.7 in). Tube Number: 472. Tube Diameter: 32 mm (1.26 in). Tube Length: 3,400 mm (134.3 in). Tube Thickness: 10 mm (0.39 in). Nozzle Schedule: openings: tubeside: flat head with 1-150mm, bonnet head with 1-400mm, 1-50mm, shell: 1-250mm, 1-100mm, 1-25mm,.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Carbone of America Corp

Model: K 110/35

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

• Carbone Number: CO51974
• Dimensions: 22 3/8" x 22 3/4" x 23 3/4"
• Process Side Inlet: 6" 150 #
• Process Side Outlet: 4" 150 #
• Service Side Inlet: 2" 150 #
• Service Side Outlet: 2" 150 #

Shell Temperature: 182.2 °C (360 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 182.2 °C (360 °F). Shell-side Passes: 8. Tube-side Passes: 1.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3 m² (32.3 ft²)

Orientation: Horizontal

Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 160 °C (320 °F). Shell Material: Carbon Steel. Tube Pressure: 3.5 bar (50.8 psi). Tube Temperature: 71.1 °C (160 °F). Tube Material: Graphite. Shell Diameter: 285 mm (11.2 in). Length: 2,300 mm (90.9 in). Tube Number: 24. Tube Diameter: 32 mm (1.26 in). Tube Length: 1,800 mm (70.5 in). Tube Thickness: 12 mm (0.47 in). Nozzle Schedule: - Tube Side Openings: (1) 50 mm, (1) 100 mm - Shell Side Openings: (2) 100 mm, (1) 25 mm.
