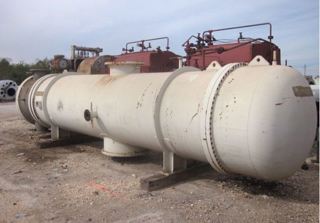

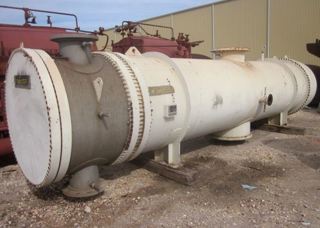

IPP# 96810, 875.6 m² (9,425 ft²) Unused Stainless Steel 304 Shell and Tube Heat Exchanger For Sale

IPP# 96810, 875.6 m² (9,425 ft²) Unused Stainless Steel 304 Shell and Tube Heat Exchanger For Sale

Condition:

Unused

Material:

Stainless Steel 304

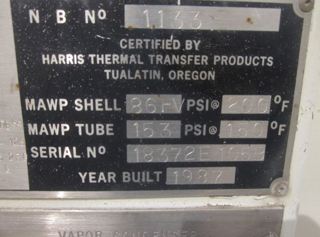

Manufacturer:

Harris Thermal

Heat Transfer Surface Area:

875.6 m² (9,425 ft²)

Orientation:

Horizontal

Shell Pressure:

5.9 bar (86 psi)

Shell Temperature:

93.3 °C (200 °F)

Shell Material:

Carbon Steel

Tube Pressure:

10.5 bar (153 psi)

Tube Temperature:

65.6 °C (150 °F)

Tube Material:

Stainless Steel 304

Tubesheet Material:

Stainless Steel 304

Vacuum:

Yes

Shell Diameter:

1,422 mm (56 in)

Head Material:

Stainless Steel 304

Length:

7,315 mm (288 in)

Shell-side Passes:

2

Tube-side Passes:

4

Tube Number:

2,451

Tube Diameter:

19.1 mm (0.75 in)

Tube Length:

6,096 mm (240 in)

Tube Thickness:

1.52 mm (0.06 in)

Nozzle Schedule:

Openings: tube side 2-12"; shell side 1-24", 1-30".

Additional Info:

(1) 304SS bonnet Removable tube bundle rolled tubes Has 90 gal sump 30" dia x 30" str side 15/16" pitch.
