255.9 m² (2,755 ft²) Stainless Steel 304 Shell and Tube Heat Exchanger For Sale IPP# 99182

IPP# 99182, 255.9 m² (2,755 ft²) Stainless Steel 304 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Stainless Steel 304

Clad:

Yes

Manufacturer:

Kimura Kakoki

Heat Transfer Surface Area:

255.9 m² (2,755 ft²)

Orientation:

Vertical

Shell Pressure:

5 bar (72 psi)

Shell Temperature:

-28.3 °C (-19 °F)

Shell Material:

Carbon Steel

Tube Pressure:

10 bar (145 psi)

Tube Temperature:

2.8 °C (37 °F)

Tube Material:

Stainless Steel 304

Tubesheet Material:

Stainless Steel 304

Shell Diameter:

1,524 mm (60 in)

Head Material:

Stainless Steel 304

Length:

2,438 mm (96 in)

Tube Number:

1,078

Tube Diameter:

31.8 mm (1.25 in)

Tube Length:

2,438 mm (96 in)

Tube Thickness:

2 mm (0.08 in)

Nozzle Schedule:

Openings: tube side 1-6", 1-8"; shell side 2-4", 1-1", 1-1 1/2".

Additional Info:

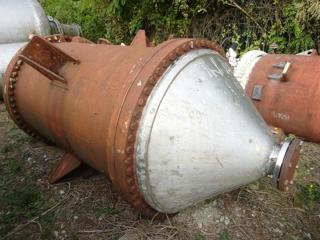

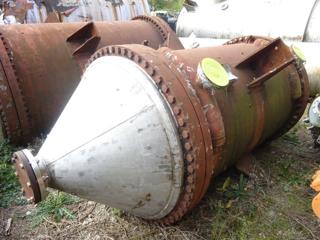

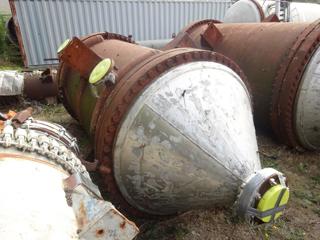

Shell rated 72 psi @ -19 deg F (5 Kg @ -10 deg C (5 Kg @ -10 deg C) tubes rated 145 psi @ 37 deg F (10 Kg @ 3 deg C) (2) 304LSS cone heads. Single pass design
