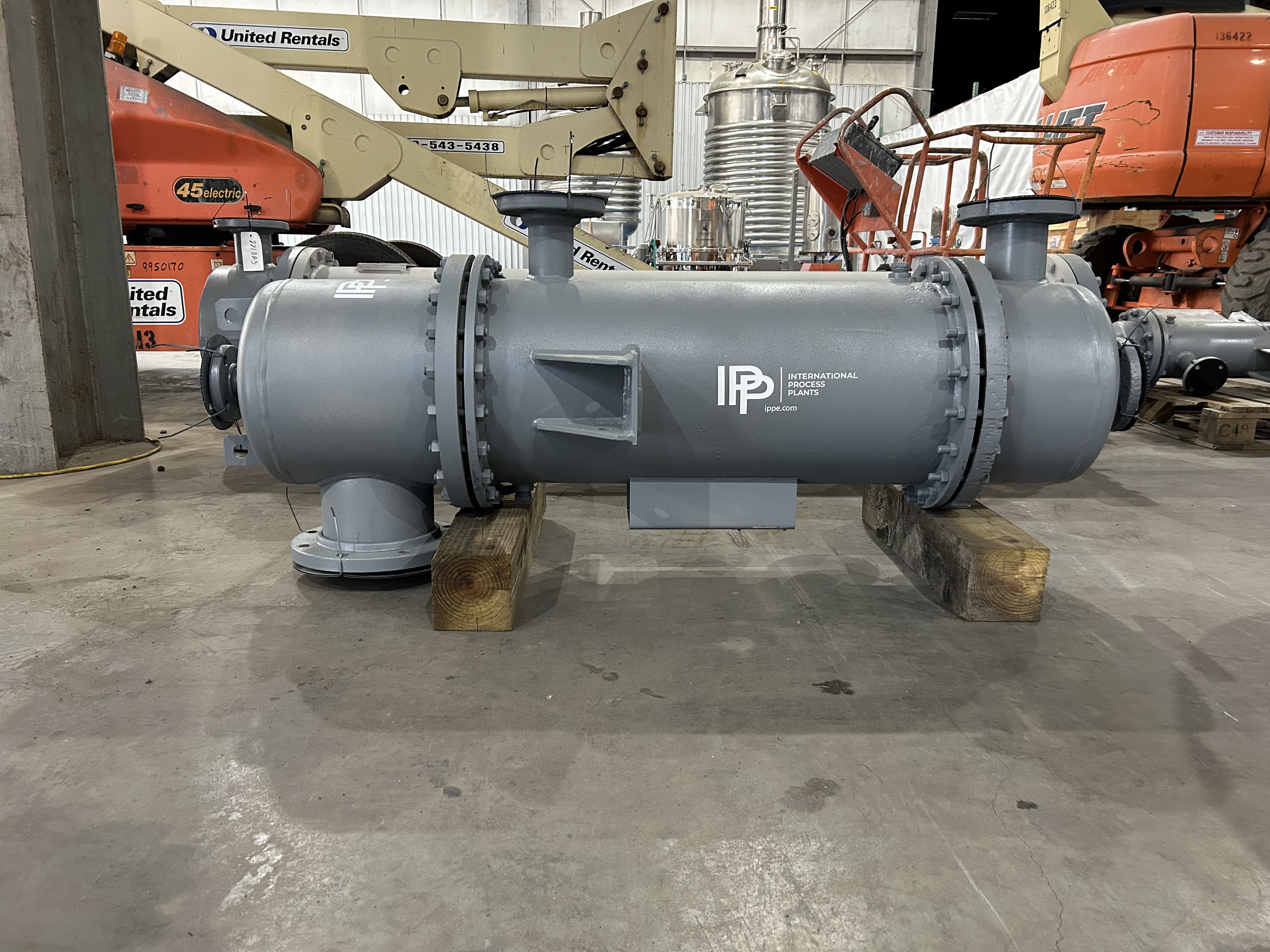

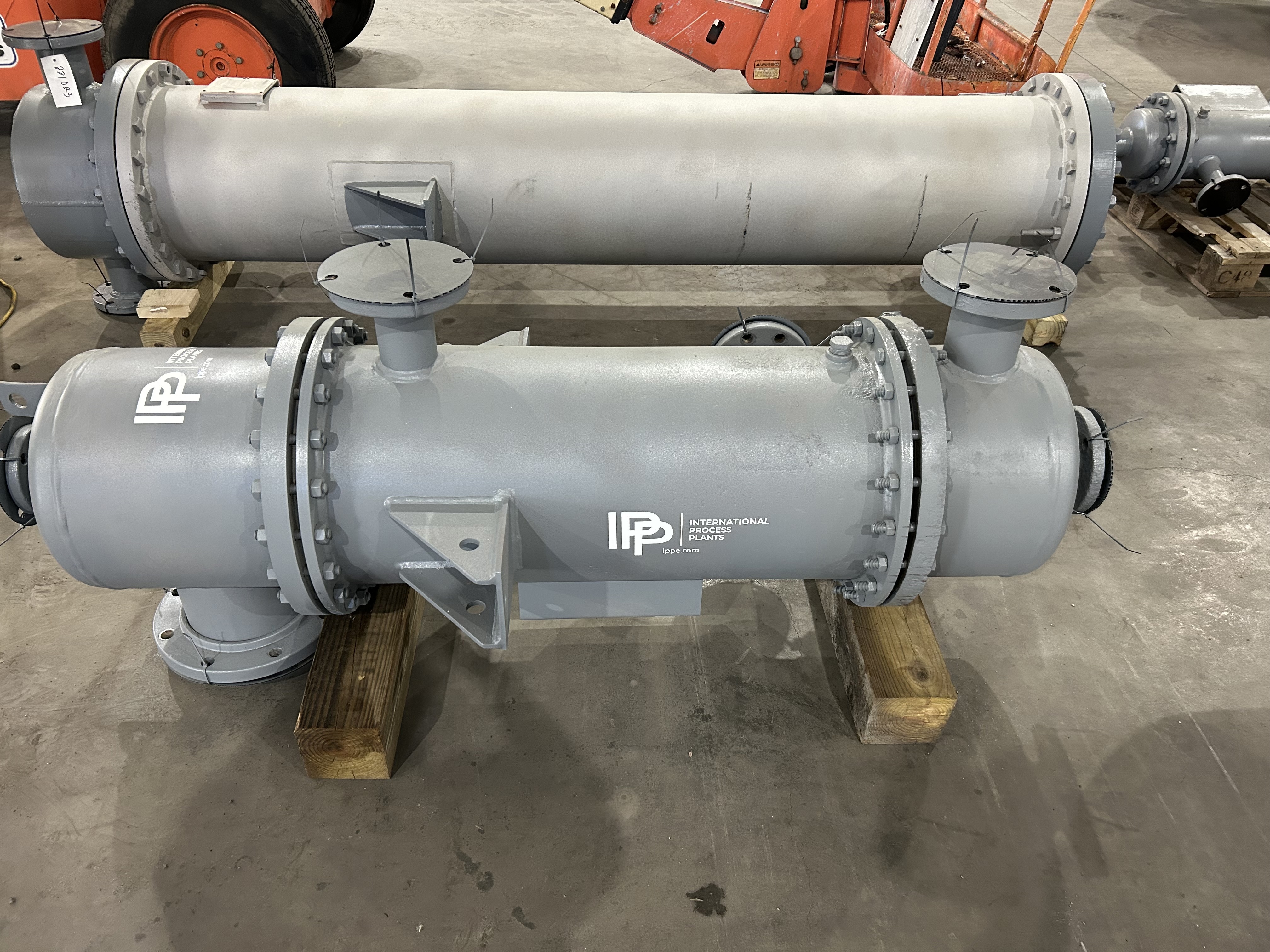

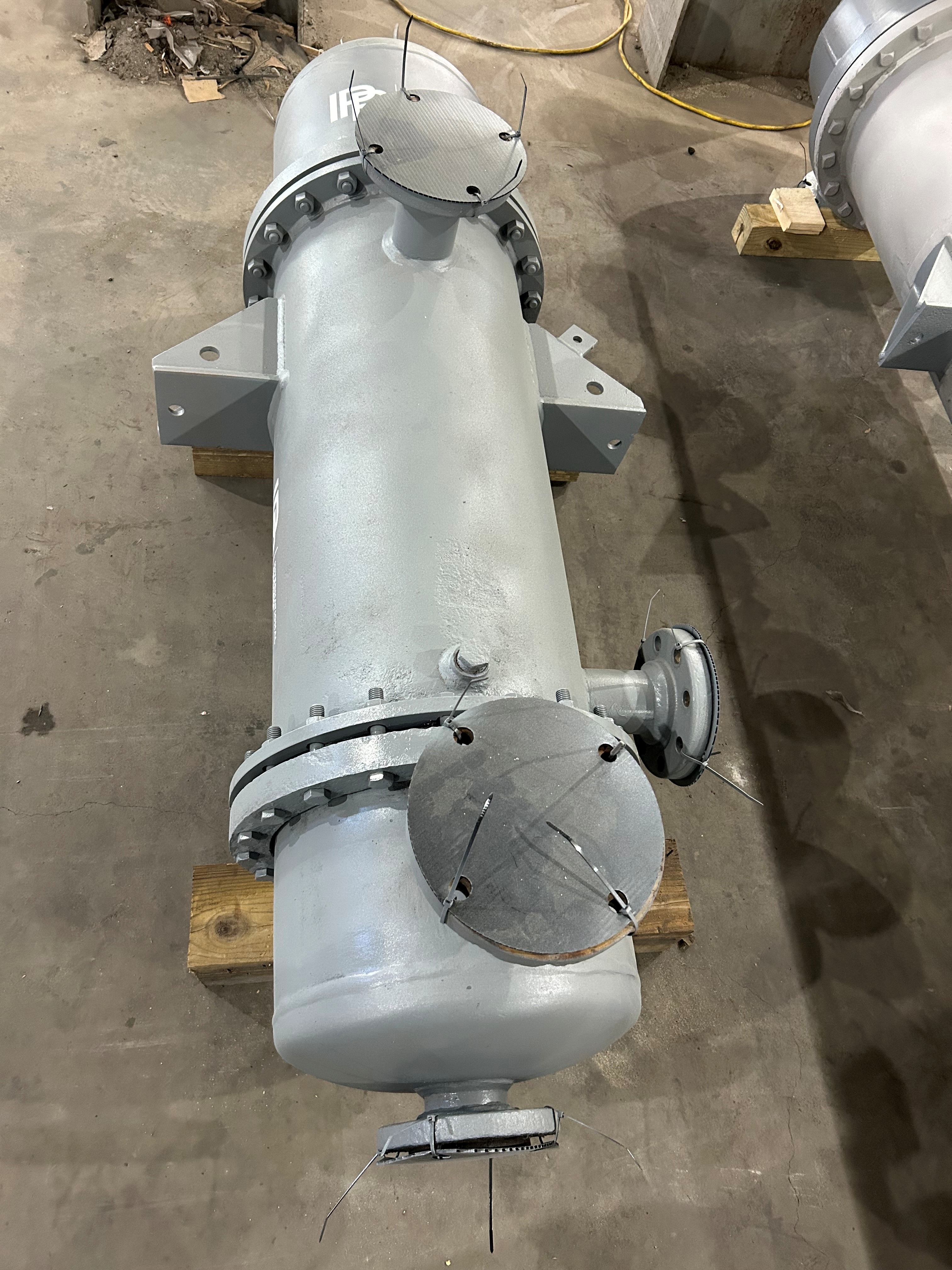

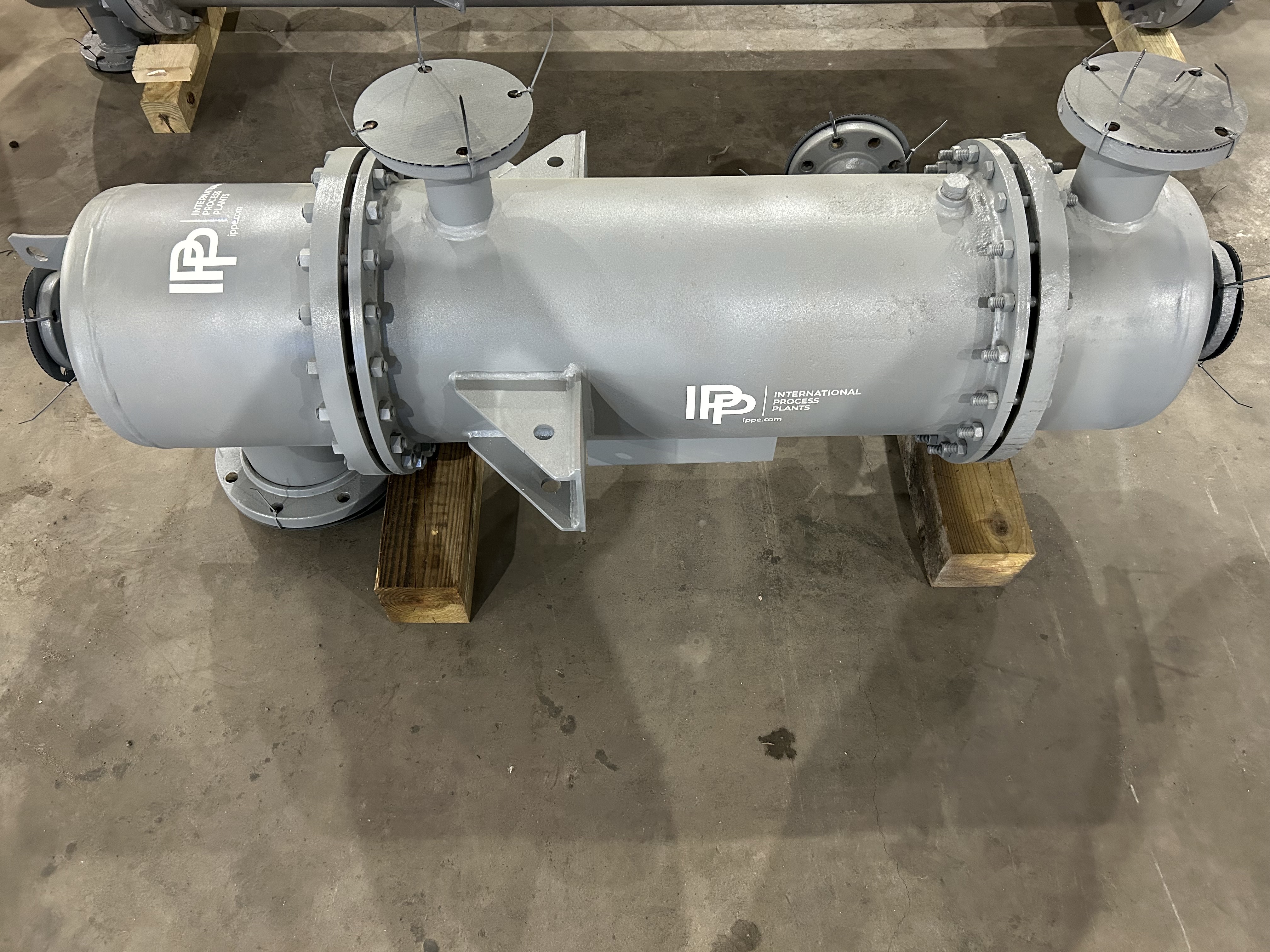

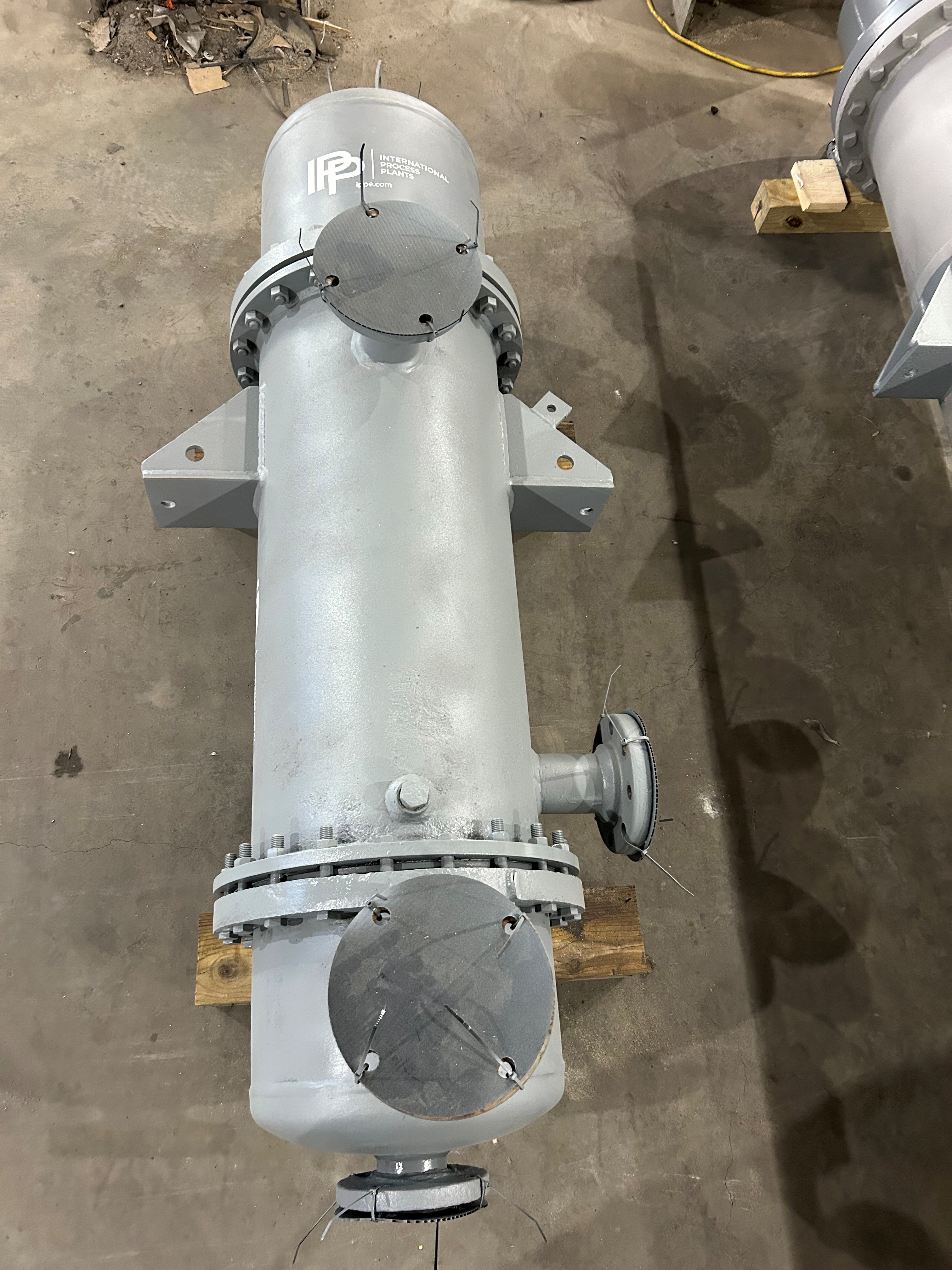

IPP# 241150, 12.6 m² (136 ft²) Hastelloy - C276 Shell and Tube Heat Exchanger For Sale

IPP# 241150, 12.6 m² (136 ft²) Hastelloy - C276 Shell and Tube Heat Exchanger For Sale

Condition:

Used

Material:

Hastelloy - C276

Manufacturer:

Atlas Industrial

Heat Transfer Surface Area:

12.6 m² (136 ft²)

Orientation:

Vertical

Shell Pressure:

10.3 bar (150 psi)

Shell Temperature:

204.4 °C (400 °F)

Shell Material:

Carbon Steel

Tube Pressure:

10.3 bar (150 psi)

Tube Temperature:

204.4 °C (400 °F)

Tube Material:

Hastelloy - C276

Tubesheet Material:

Hastelloy - Other

Vacuum:

Yes

Shell Diameter:

406.4 mm (16 in)

Head Material:

Hastelloy - Other

Length:

1,448 mm (57 in)

Shell-side Passes:

1

Tube-side Passes:

1

Tube Type:

Straight Tube

Tube Number:

295

Tube Diameter:

15.9 mm (0.63 in)

Tube Length:

863.6 mm (34 in)

Tube Thickness:

1.24 mm (0.05 in)

Nozzle Schedule:

One 8", One 4", Three 3", One 2", Two 0.75" nozzles.
