• Side bottom discharge with automatic valve Agitator Cored for Heating/Cooling: Yes. Vessel Liquid Capacity: 400 gallons.

CS jacketed ribbon blender Internal pressure rated 3 psi @ 200 deg. F to -20 deg. F min.
Jacket is rated 60 psi @ 200 deg. F to -20 deg. F min. Blender configuration is full flat top cover with center bottom outlet. Shaft has stuffing box, ribbon design is removable, continuous double ribbon with Teflon wipers Shaft is driven through a Dodge shaft mounted reducer with a 24.7/1 gear reducer. Top cover is clamp on removable design. Top cover openings include 2-4", 1-8", 2-1", and 1 top feed/manway opening of 12"x16". Vessel is fully insulated. Center bottom outlet is approx. 6" and discharges through a knife gate into a Young motorized 2-3 hp delumper.

Missing 4 pans

98.6% water evaporation4-effect falling film evaporator system Designed by Fritz Voltz sohn feed rate 3.4m3/hr, product 1.3 m3/hr Feed to 1st evaporator is 3.4 m3/hr @ 34.8% concentration and @ 104 deg C vacuum @ 4th evaporator 130 mbar Evaporator concentrations are: 1st = 42.1% @ 116 deg C2nd = 55.8% @ 107 deg C, 3rd = 91.3% @ 81 deg C, 4th = 98.6% @ 98 deg C System consists of:(3) 46 square meter 316 stainless steel tube, head and shell falling film evaporator (1st , 2nd, 3rd effects), manufactured by APV, design pressure tubeside 0.69 bar + full vacuum @ 130 degrees C, shell 3.10 bar + full vacuum @ 140 degrees C, working pressure tubeside 0.207 bar @ 120 degrees C, shell 2.07 bar @ 130 degrees C, (44) 50mm diameter x 18 SWG X 7m long 316 stainless steel tubes, 316 stainless steel tube sheets, 560mm diameter 316 stainless steel shell with expansion joint, (1) 316 stainless steel bonnet head, (1) bolt dished bottom head, mounted on a carbon steel skirt(1) 6 square meter 316 stainless steel tube, head and shell falling film evaporator (4th effect), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (14) 44mm diameter x 16G x 3.5m long 316 stainless steel tubes, 323.9mm diameter 316 stainless steel shell with expansion joint, 4295mm overall height, (1) 316 stainless steel flat bonnet head, (1) weld coned bottom, effect attached on top of a 720 liter 316 stainless steel vertical pressure separator/tank, manufactured by APV, design pressure 2.5 bar + full vacuum @ 250 degrees C, 792mm diameter x 1.5m straight side, weld dished top and bottom, mounted on legs(3) approx 600 liter 316 stainless steel vertical separators, manufactured by APV, design pressure 10 psig + full vacuum @ 130 degrees C, 775mm diameter x 1219mm straight side, weld slight coned top, weld coned bottom,(1) 10.6 square meter 316 stainless steel tube and shell horizontal condenser (1st stage), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (34) 25mm diameter x 16G x 4m long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 406mm diameter 316 stainless steel shell, 4.5m overall length, mounted on saddles(1) 11 square meter 316 stainless steel tube and shell horizontal condenser (2nd stage), manufactured by APV, working pressure tubeside 2.07 bar @ 35 degrees C, shell -0.9 bar + full vacuum @ 50 degrees C, (76) ¾” x 18 swg x 4145mm long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 300mm diameter 316 stainless steel shell, overall length 4523mm, mounted on saddles,(3) approx 132 liter 316 stainless steel vertical pressure tanks (flash vessel), manufactured by APV, design pressure 2.5 bar + full vacuum @ 150 degrees C, 400mm diameter x 750mm straight side, bolt dished bonnet head, weld dished bottom, mounted on legsProcess operationThe first 3 evaporators are falling film and tube (shell & tube) evaporators, where the product flows up and down through a series of tubes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating mediumThe hot liquid from each evaporator is fed to its associated “separator” in which the vapour separates from the liquid and is drawn off,The 4th evaporator uses a “once-through” falling film concentrator, the unit is similar to that of a shell & tube heat exchanger except that the product falls down the unit through a number of pipes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating medium, Vacuum @ 130mbar is applied to the 4th evaporator, which draws the vapour through the first 4 evaporators.After the 4th evaporator the product is fed through a heat exchanger, where it cools the product to between 50 deg C and 70 deg C, water is used as a cooling medium, from there the product goes to storage tanks (not available)

inlet Carbon Steel skid mounted High Efficiency Fine classifier 3600 RPM rotor max speed.15kW. 460 vac 35 amps Inlet size is 9", outlet is 21" x 19 " square flange. Rejects line is 5" Particle wheel has hinged door for clean out and wheel access This classifier is rated for 2000-2600 m3h, and 200/2400 kG/h Finess is rated for 3.0-4.0 (c/37um).

• Sanitary- (1x) Down spraying, two fluid, external mixing, air atomizing nozzle APV Anhydro Compact Spray Dryer
• Air Inlet temperature 200 -300 degrees C (390-670 degrees F),
• Exhaust air temperature 90 degrees C (195 degrees F)
• Food grade construction
• Heat for hot air is natural gas fired by an Eclipse burner rated for 240,000 BTU.
• Dry product is separated in a SS cyclone, 12" top diameter x 48" high with a 4" cone bottom.
• Dust is collected in a CS bag house, 36" wide x 86" long x 14' high.16 Bags with 4" diameter x 48" long socks, approximately 64 Sq. Ft. of filtration area
• TEFC Hi efficiency. Feed pump is driven by a 0.5 HP motor. Straight wall internal is 60".

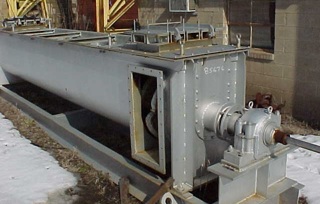

• Single agitator design. Trough is not jacketed Agitator is hardfaced and rated 150 psig @ 650 degree F vessel rated atmospheric @ 650 degree F Trough contains approximately 62 cu. ft. of processing space Completely fabricated and assembled except for the following: Johnson rotary joint, panel coils, drive motor, gear reduction, chain and sprocket
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

spiral air classifier coarse material removal driven by 2 kw, 3/50/660/1450 rpm EX motor mounted on a baseplate

• With Lenser polypropylene non-gasketed recessed plates type KCE (51) chambers.
• 40mm cake thickness ,corner feed with 3 eye closed delivery
• 3" top corner feed, 2" 3 corner discharge.
• 3300 psi hydraulic closing pressure.
• With US Filter/Siemens air over oil hydraulic pump with a 15 gallon oil reservoir requires 80 scfm @ 100 psi air supply.

Twin Shaft Nara paddle Shell WO Number DS-220, Jacket Serial Number D-258, National Board Number 1102. Heat Transfer area: Jacket 107 Sq Ft, Agitator 293 Sq Ft, total 400 Square Foot. twin shaft with discontinous wedge shaped staggard paddles. Both jacket and agitator rated for 165 psi at 425 degrees F. Indirect heat, by saturated steam heat; rotary joints on shafts with quick disconnects and zero speed switch on end of shaft. Shaft seals are Meco Systems self-aligning externally adjstable, fully split elastomer seal, with purge port. With a 316LSS dome type covered trough rated for 5 psi pressure. With a chain and sprocket drive, SEW Sanasaio Parallel shaft speed reducer and a 75 HP Reliance motor. Motor data, ID # OIMAN 79345 G001 BC Frame 365 T, rated for 1780 rpm, Volts 230/460 amps 172/86 3 ph, Hz 60. Shaft speed approximately 12 RPM. Openings include: 15" x 36" feed opening, (1) 12" diamter vapor opening, (3) 18" x 24" explosion vent openings, (1) 6" Sweep Gas Inlet, (1) 20" x 20" Access hatch with bolted cover, (2) 6" view ports; trough has (1) 12" x 58" flanged discharg opening, (2) externally adjustable weir gates.

30" (800mm) dia x 40" (1000mm) long long chrome plate cast iron single drum flaker Totally enclosed in SS casing w/MS ribbing (not vac rated) Roll surface area: 0.5026 sq meter Fitted w/an unused replacement drum. New main roll bearings made in phosphor bronze in half bush arrangement. Applicator roll re-ground and re-chromed to original dia and Ra surface. Complete w/applicator tray. No motor or gearboxes w/this unit.

Mikro Atomizer Rated for 6,000 rpm. Capable of handling capacities from 100 to 1000 lbs/hr, dependent on the material, this machine handles 3 functions in one machine. Pulverizes, air classifies and conveys the material.

• Sheathing covering Insulation rock wool and puff , 316 L SS sheathing completely sealed to 0.4 bar
• With thermowell and dip pipe.
• Internal : Buff polished to 240 Grit.
• External: Buff polished to 180 Grit.
• UNDER FABRICATION, WILL BE FACTORY COMPLETE WEEK OF DEC 15 2025! Support Type: Lugs.

• 12" diameter-ASME stamp for Jacket Only Link Belt HP rated 10’
• Vessel rated for 3psi +/- (vacuum)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions) Porcupine Agitator Pressure: 50 psi. Porcupine Agitator Temperature: 300 °F. Size: 1208.

C 3-stage reciprocating Boil-off-gas (BOG) compressor system maximum allowed rod. Load 100kN, rated discharge pressure of final stage 69 barg, suction pressure 1st stage 0.05 bar @ 30 degrees C, 2nd stage 4.6 bar @ 45 degrees C, 3rd stage 27.7 bar @ 45 degrees C, discharge pressure 1st stage 4.7 bar @ 176 degrees C, 2nd stage 27.9 bar @ 190 degrees C, 3rd stage 69 bar @ 160 degrees C, driven by a 250kw, 3/50/400 volt, 594 rpm ATEX 1022 EExd II B T4Loher motor, (1) 550 liter stainless steel vertical pulsation dampner vessel, manufactured by Nadoba Stabilini, serial #954, pressure 0.05 bar @ -118/+30 degrees C, 610mm diameter x 1740mm straight side, weld dished top and bottom, (1) 125 liter carbon steel horizontal pulsation dampner, manufactured by Tlakova Nadoba Stabilini, serial #955, pressure 10.7/69.6 bar @ 57/159 degrees C, weld dished ends, (1) carbon steel tube and shell horizontal 1st stage intercooler, manufactured by APL Apparatebau AG, serial #W8227/EC22601, tubeside pressure 10 barg @ -10/200 degrees C (27 liter), shell 10 barg @ -10/200 degrees C (53 liter), (1) carbon steel tube and shell horizontal 2nd stage intercooler, manufactured by APL Apparatebau AG, serial #W8228/EC22602, tubeside pressure 29 barg @ -10/200 degrees C (20 liter), shell 10 barg @ -10/200 degrees C (55 liter), (1) carbon steel tube and shell horizontal 3rd stage intercooler, manufactured by APL Apparatebau AG, serial #W8229/EC22603, tubeside pressure 78 barg @ -10/200 degrees C (9 liter), shell 10 barg @ -10/200 degrees C (42 liter), system also includes interconnecting pipework, valves, etc, ALL CE MARKED

with feed hopper serial #10 486

Nash SC2SS Vacuum pump, with vapor recovery system Test # 90Y002 The system includes the following equipment; a vacuum pump, two heat exchangers, a separating tank, and seal pots. The direct drive vacuum pump, is manufactured by Nash, size SC2SS, Pos. 4 ,Vac, rated 200 cfm @ 5-20" Hg. The vapor exchanger is a 30 sq. ft., all 316 SS, horizontal heat exchanger manufactured by Industrial Process Equipment corp., Model # 2ST8-60, Serial # 105-641A National Board # 988 It’s shell and tubes are rated for 150/FV The condensate chiller is a 10 sq.ft., 316SS tube bundle, 316SS heads, with CS shell, horizontal heat exchanger and is also manufactured by Industrial Process Equipment Corporation. Serial # 1056413, and National Board # 989, Rated for 150/FV psi in the shell and tubes. The dual seal pot arrangement, with Nitrogen purge is provided by Duramettalic, Canada/Condex Heat Transfer Corp. Serial # 91-3-4146 & 4179, and rated for 400 psi at 400 degrees F. Both have level sight glasses and N2 purge line with regulator and Liquid make up valves. The units 316 SS separator, is manufactured by Jenco, Serial # 91-1327, National Board # 525, and rated for 30/FV at 350 psi. The separator tank also has a liquid level sight glass. The vapor inlet line is 4" flanged, and separator outlet is 1”. Automatic valves for liquid flow control are provided by Fisher and El-O-Matic, and the vapor contact piping is 316 SS. System includes all DP cells, RTD temperature probes, and pressure gauges. Designed to be used in a hazardous atmosphere, skid has a 60 amp Square D breaker, and explosion proof switches and controls.

• DISHO Vacuum Mixing Dispersing and Homogenizing Unit. Vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; with a 24" cone bottom. It has a flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".
• Fully insulated with SS shroud over insulation. Mounted on legs with Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades.
• 3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Manufactured by Estrella AG in Ettingen, Germany Packed column consisting of (3) Clamped mid sections, each 2.000 mm long x 788 mm inside diameter, openings each section: (1) NW 150, (1) NW 50; (1) clamped dished top, 1.120 mm long x 788 mm inside diameter

600mm inside diameter x 14.200mm overall height glass packed column. Manufactured by Schott Schleiffer Chemie-Technik in Switzerland Number of main parts: 13 Number of glass middle sections: 11 Glass cover top height: 400mm Glass cover top inside diameter: 600mm Glass cover top openings: (1) NW 200, (2) NW 25 Glass cover bottom height: 300mm Glass cover bottom inside diameter: 600mm Glass cover bottom openings: (1) NW 100 First middle section height: 600mm First middle section inside diameter: 600mm First middle section opening: (1) NW 80 Second middle section height: 1.500mm Second middle section inside diameter: 600mm Second middle section openings: (2) NW 50, (2) NW 25 Third middle section height: 1.500mm Third middle section inside diameter: 600mm Third middle section openings: (3) NW 50 Fourth middle section height: 1.500mm Fourth middle section inside diameter: 600mm Fourth middle section openings: (2) NW 25, (1) Fifth middle section height: 1.500mm Fifth middle section inside diameter: 600mm Fifth middle section openings: (2) NW 25 Sixth middle section height: 600mm Sixth middle section inside diameter: 600mm Sixth middle section openings: (1) NW 80 Seventh middle section height: 1.500mm Seventh middle section inside diameter: 600mm Seventh middle section openings: (2) NW 50, (2) NW 25 Eighth middle section height: 600mm Eighth middle section inside diameter: 600mm Eighth middle section openings: (1) NW 150 Ninth middle section height: 1.500mm Ninth middle section inside diameter: 600mm Ninth middle section openings: (2) NW 50, (2) NW 25 Tenth middle section height: 1.500mm Tenth middle section inside diameter: 600mm Tenth middle section openings: (2) NW 25 Eleventh middle section height: 1.200mm Eleventh middle section inside diameter: 600mm Eleventh middle section openings: (1) NW 150, (2) NW 100, (1) NW 50, (2) NW 25 Included items: support pipe construction, flanges, connection pieces, ceramics pall ring packing material, and many glass accessories.

LIKE NEW CONDITION! 62 hours from new. Fresh PM, incl. batteries + 2hr load test, ready to go. KD115V Skid mounted, in outdoor sound attenuating enclosure with electronic controls on day tank. Gen set manufactured by Marathon, 150 KW standby, 480 v 3ph 60Hz, Direct driven by a Volvo Penta Gen set engine. 6 cylinder 4 stroke , direct injection. Turbo Charged and air to air intercooled. Drive engine number of cylinders: 6. Batteries: Yes. Battery Charger: Yes. Controls: Yes.

SIHI vacuum skid consisting of (1) 140m3/hour carbon steel liquid ring vacuum pump 3 bar (1) 4 liter carbon steel separator vessel, pressure -1/3 barg @ 120 degrees C 273mm diameter x 1020mm total height, (1) 9.9 square meter carbon steel condenser, pressure tube side 6 barg @ 250 degrees C, shell -1/3 barg @ 250 degrees C,

#4 inside with welds ground and polished Lifting eyes on top of the tank 3” Tri- Clamp connections Insulation - 1” cork with mild steel insulation

standard 6' diameter bucket with 18" diameter manway and 8" diameter outlet with 9 to 45 rpm on bucket with Hastelloy vacuum arm with stuffing box. With bull and pinion Reconditioned gear box, driven by 3HP XP class 1, div 2 , 3 phase, 60HZ, 230, 460 Volt motor with electric 10 ft-lbs. brake.

wall thickness 25 mm belt driven by 45 kw motor, 3/50/380-660 volt, 80mm feed, 300mm discharge on front door, 260mm wide x 660mm long filtrate, central lubrication system, and controls
