mobile laboratory filter/dryer with tilting mechanism, design pressure internal 1 bar + full vacuum @ -20/150 degrees C, jacket: 6 bar + full vacuum @ -20/150 degrees C, all wetted parts are Hastelloy C22, 50 liter slurry capacity, 20 liter cake capacity, 350mm diameter x 680mm straight side, 6-30rpm shaft speed, agitator driven by 1.5kW, 3/50/230/400 volt, 1420 rpm CE ATEX EExd IIB T4 IP55 motor, hydraulic driven agitator raise/lower mechanism with powerpack, alloy 22 bellows on shaft, flat bottom filter plate with mesh filter and can be rotated for cleaning, manual vessel tilt mechanism, strip sight glass on side for measuring cake depth, approx 100mm side discharge which is fully contained in a glovebox, all mounted on stainless steel frame with wheels for full mobility, design code ASME VIII DIV 1 (1998) + A '00'

500 Gallon Manufactured by Alloy Fab for Dartco Shell is .250" thick Top head is .312" thick Cone is .312/.437" thick jacket is .109" thick 6.5 turns half pipe on top head 18 turns half pipe on straight side 5 turns half pipe bottom head All half pipe jacket is 2"

Alloy C22

Internal finish is a sanitary polish. 304SS sheathing. 304 stainless steel

18.35" Side discharge with discharge valve, 132 gallon Hastelloy C 22 side discharge valve. National Board # 287. rated FV/88 @392 degrees F.

Dryer Dimensions: 90" diameter x 76" length

hydraulic skid. Includes: integral Stock # 241013- Hastelloy C22 pulse jet Dust collector. 8.6" handhole, 4.33" site glass.

Funda filter with centrifugal discharge Shell 900mm diameter x 960mm from flanged top to bottom discharge (22) 800mm diameter filter elements @ 30mm spacing Requires 15 PS motor Wet cake discharge

Manufactured by Durco Enzinger Vertical tank horizontal Plate design, with wet cake discharge, with Slucing bar SS bolt on plate coil jacket on bottom head with bolted dished bottom with swing bolts Mounted on top is a faractioanl HP drive that turns the slucing bar that rund down the middel of the plate stack 6" diameter bottom cake discharge

• Certified by Chaudronnerie Des Roches (France).
• Jacketed on straight side only.
• EX Proof Controls
• AC drive motor on hydraulic unit for moving the agitator shaft up and down: Reliance Duty Master AC. 1.5 HP, 1155 rpm Frame 182TD, UL listed3 phase 60 Hz, 230/460 v. Direct mounted to the top of the hydraulic tank.

Filter interior is polished to a mirror polish (220 grit) With cored and heated shaft shaft rated for 87 psi at 208 degrees F. Hydraulic driven agitator rotation 1:14 from 6-58 rpm. With stuffing box agitator seal with gas purge. Hydraulic power pack operates the following. Agitator up/down, Bottom opening tilting and the hatch Power pack is driven by a Reliance 10 hp 460volt, 3 ph motor Side solids discharge lamped bottom for heads removal Tilting type filter With 316 SS base and cabinet exterior parts polished to an 80 grit finish All gaskets are PTFE. Filter has washing nozzles, and Explosion proof lighting for filter interior Also included is a Rosenmund Apovac Vacuum system including vacuum pump and ring -Liquid vessel and cooler Apovac model 1.5/660 PMSH 156 D2 Serial # 51 050 with Vacuum pump by Gepruft With PLC control system has operators controls mounted on hydraulic station

• Product contact is 316 SS, non contact is 304 SS. All product contact surfaces are 25 RA Finish and passivated.
• Press is expandable by 5 plates and Frames
• Filter is designed to accommodate 24 media sheets
• EPDM and/or Teflon Elastomers

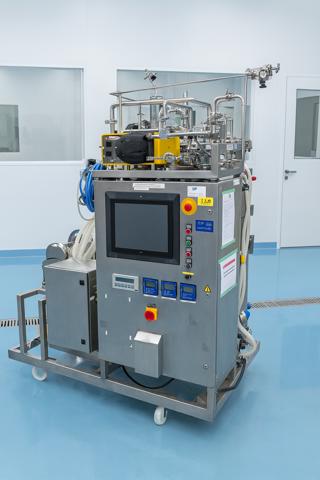

Sartoflow 20 PH/A Crossflow Filter/ Tangential Flow Filter (TFF) system

• Skid mounted system with the following components- Sartoflow 20 filter holder, can handle 20 crossflow cassettes or four Sartocubes.
• A 200 Liter vertical pressure tank, with jacket engineered by Sartorius, type 200L NOC-39600055, serial # 0406154. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.
• 2" x 2" rotary lobe pump with a Nord drive serial # 30515/A/04 rated for 7 bar.
• With one Watson Marlow 624 U, auto control 165 rpm peristaltic pump. Controls in NEMA Stainless steel cabinets with an IEI HMI. Jacket and cooling is completed by a Lauda T -4600 cooling unit, 18 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T4600. Temperature range -30 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 4600 W. With 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C. Skid dimensions overall 1.8 m long x 1260 mm deep x 2.5 m high. CE certified.

Agitated jacketed Rosenmund filter dryer Batch size 20 to 25kg internal design pressure 0.39 MPa (3.9 bar) + vacuum @ -20/170 degrees C (120 liter) coil jackets 0.6 MPa (6 bar) @ -20/170 degrees C (10 liter) internal working pressure 0.15 MPa (1.5 bar) @ 100 degrees C jacket 0.6 MPa (6 bar) @ 100 degrees C 550mm diameter x 828mm from agitator opening to filter plate, chamber insulated and with 316L stainless steel cladding, side discharge with 316L stainless steel glove box Ex motor, filter plate has a raise/lower and a hydraulic lock mechanism driven by the same power pack, CE certified, unit also includes (1) stainless steel condenser, (1) stainless steel tank, (1) heating controller

mobile filter/dryer with tilting mechanism, designed by GL Filtration Ltd, manufactured by RMF Engineering Ltd, design pressure internal 6 bar + full vacuum @ -25/160 degrees C, jacket 6 bar + full vacuum @ -25/160 degrees C, all wetted parts are Hastelloy C22 with 0.6um polish, Hazard area classification Zone 1 IIB T4, 50 liter slurry capacity, 20 liter cake capacity, 350mm diameter x 665mm straight side, agitator driven by 1.1kW, 3/50/230/400 volt, 1400 rpm CE ATEX Ex II2G motor, hydraulic driven agitator raise/lower mechanism with power pack, alloy 22 bellows on shaft, flat bottom filter plate with Hastelloy C22 'PORSTAR' 22 micron filter media and can be rotated for cleaning, manual vessel tilt mechanism, strip sight glass on side for measuring cake depth, 150mm side discharge which is fully contained in a glovebox, all mounted on stainless steel frame with wheels for full mobility, design code: ASME VIII DIV 1 2007 + 'U' stamp,

25 Gallon knock out pot

Job #1S-271 Polypropylene drum, trough and rocker agit Advancing knife discharge Mdl PSP-45, driven by 3 HP, 3/60/230/460 volt, 1730 rpm TEFC motor (1) 1/2 HP SS centrifugal pump; (1) 5 KVA transformer; controls and starter box; (1) 8" x 16" plastic tank

Centrifugal discharge pressure leaf filter

• Vessel number: 5062GW
• Vessel volume: 2000 ltr (1) end head plate, (104) approx 1.2m diameter x 1.5mm straight side vertical chamber associated equipment includes, 1 x 1800 ltr 321. stainless steel vertical pressure tank, 0.5 bar @ 20° C, weld dished top and bottom, 1 x approx. 268 ltr stainless steel vertical aggitated tank, (1) auma (system Lewa) pump system type: EHV-L, serial#328114-010.004 (3) electrical panels

polishing plate filter press hydraulic press mechanism driven by hydraulic powerpac which is built into a control cabinet 2 -80mm openings on plates, Stainless Steel skeleton includes (1) Photometer, manufactured by Sigrist, s/steel walkway platform with steps and handrail

Polypropylene plates and frames and all Stainless Steel skeleton. approximately38 chambers. 4 eye closed delivery, 1" inlet and outlets. Manual closure with Hydraulic Assist manufactured by SPX.

Polypropylene plates and frames and all Stainless Steel skeleton. 44 chambers. 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX.

• Side bar design with semi automatic plate shifter.
• Four eye discharge washing plates with ¼” recess.
• Press can be upgraded to 100 cu ft cake capacity and 2079 sq. ft. filtration area with additional plates.
• Single hydraulic piston press.
• Bottom mounted chain driven screw conveyor for cake discharge with safety trip wire.

filter press with Polypropylene plates and frames and all Stainless Steel skeleton. 95 plates with 44 chambers 4 eye closed delivery, 1" inlet and outlet. Manual closure with Hydraulic Assist manufactured by SPX.

1500 liter/min water tank system Ribbon motor specifications: 3~/50Hz/290-500V/1370rpm,

Shell rated 88.5/FV psi @392 Deg F. Jacket 316SS, rated 152.5/FV @392 Deg F Vertical Filter Dryer Dust collector Jacket rated FV 152 @392degrees F. Internal finish is a sanitary polish. 304SS sheathing Mechanical seals. Cored shaft with . Side discharge with side discharge valve. ntergal Stock # 241129- Hastelloy C22 pulse jet Dust collector. Dryer Dimensions: 90" diameter x 76" length 132 gallon Hastelloy C 22 side discharge valve. rated FV/88 @392 degrees F

Agitated Pressure Filter The 24.5 Liter vessel is rated -1/6 Bar @ -20 to 200 degree C The 2.7 Liter jacket is rated -1/6 Bar @ -20 to 200 degree C. The .3 Liter Heated Base is rated -1/6 Bar @ -20 to 200 degree C. With Bergmann mechanical seal on shaft, and CIP ports with spray balls for cleaningSide bottom solids discharge with manual flush valve, center bottom fluid outlet with manual ball valve. Clamped bottom head for removing heals. Comes with portable hydraulic power pack, that utilizes a piston pump for up/down and right/left agitator movement. Power pack has AB electric controls Filter housing is mounted on a stainless steel frame with castors, and the hydraulic power pack is also on castors, making the entire unit portable.

123 chambers. Plates are made from non-reinforced, molded, pressure-resistant polypropylene. Cake thickness is 32 mm. Filter frame is heavy duty construction from A-36 steel with Stainless steel covered side rails assembly to support the filter plate stack. Closing device is hydraulic and automatic. The press is furnished with recessed chamber plates in center feed design with closed filtrate discharge and filtrate discharging through four corner ports.

• Non gasketed recessed plate filter press1 & 3 button2 eye open delivery with single hydraulic piston closer Includes rubber belt conveyor that runs the length of the press for cake removal.
