• Centritec Cell 8 single use insert centrifuge
• This type of flow centrifuge is for harvesting mammalian and insect cells in a single use insert. The system offers these advantages Single use, rapid changeover disposable, Precise servo drive system that minimizes vibration, User friendly, and low maintenance. Cells are pumped peristaltically from the bio reactor to the cell 8, Live cells can be recycled to the reactor, separation occurs in a gamma irritated disposable bladder and tubing system (Separation Insert) The process is three steps separation, isolation, and discharge. An inflatable barrier segregates cell rich material for the superannuant Min/Max Temp=2 -150 degrees C. (this machine has been modified with switches ,plc, and others to control temperature at an exact setpoint) Separation chamber volume 200 ml. Through put 6-120 L/Hr. Width 32.23 ", depth 46.86 ", height 67.99" Weight 640 kg.

Auft # 37387 belt driven by LOHER 3.6 KW, 1715 RPM, 3/7.7-13.3A/60Hz/220-380 volt motor, ex proof (T3). Designed to German TUV standards. Reglassed in Romani by UGE 2001.

• This is a bare reactor

6,300 liter order number 60669 Pressure ratings: Internal -1/6 Bar @ -25/+200°C total volume 8,190 liters; Jacket rated -1/6 Bar @ -25/+200°C total volume 795 liters. Lined with glass WWG9115 With a top mounted drive with Burgmann mechanical seal type M462L-D20 and Burgmann Thermosyphon TS 2000 pneumatic bottom outlet valve, and solids dosing device,

UNUSED

Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated, and "U" stamped.

welded dish heads (2:1) 12 mm thick

Coil: 114 mm OD x 4 mm thick,

Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm). Coil heating surface area.

With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug.

20" Manhole with Cover and davit arm assist, one 6" sight glass, Support Type: Lugs.

Shell rated 150/FV @ 450 degrees F. Conventional jacket 150/FV @ 450 degrees F with welded 2:1 elliptical heads Alloy mixer with dual tier agitation, lower is a CBT, upper is a PBT

• sanitary reactor body/kettle.
• Wall thickness: 0.25" thick side wall, 0.220" thick top head, 0.218" thick bottom head
• Sanitary construction, vessel and jacket are insulated and covered with a SS shroud.
• Previously used for creams and lotions processing.
• Jacket Thickness 13 Gauge. Support Type: Legs.

jacketed high pressure reactor Jacket volume: 1700 liter Total length: 8000 mm Jacket wall thickness: 30 mm

• Rated for lethal service.
• Nozzles with Inconel 625 inlay.
• Glasslined beavertail baffle with WIKA TR-10 & PT100 temperature probes.
• Mechanically sealed agitator: FlowServe MD-200 DN140.
• See sales comments for additional options.

MFR # 12269 Model SA-3000 Special three top lifting lugs, six leg couplings, four side wall lugs Shell=1 & 1/64", heads=1 & 1/64", jacket =5/8" PTE size 10 drive with an EX proof 20 HP motor and a dry seal. 36" main cover. 18" man way with pro ring and sight glass assembly with man way assist.

• Can be equipped with Agitation System
• Reglassed KC series reactor body
• Manufacturers number 4364421
• With (4) side support lugs or (8) leg couplings for mounting/installation.

contract number 400902 Standard: DIN-28136 pressure internal -1/6 bar@ -25/+ 200 degrees C (1180 liter), jacket 7 bar @ -25/+ 200 degrees C (228 liter), Glass type 3008 Lubrication tank type: AAA Motor type: Ex proof (T4) Hansen electrical motor

• Sanitary insulation shroud of 304 SS stainless steel.
• Marine style impellor with digital level sensor and digital indicator.
• Pneumatic Harvest Valve.
• Ports for Nutrients inlet & Outlet, sampling, pH, DO, & Temperature control, and other controls.
• Agitator shaft & Impeller is 316 SS. CIP: Yes. Support Type: Legs.

• Centritec Cell 8 single use insert centrifuge.
• This type of flow centrifuge is for harvesting mammalian and insect cells in a single use insert. The system offers these advantages: Single use, rapid changeover disposable. Precise servo drive system that minimizes vibration. User friendly, low maintenance. Cells are pumped peristaltically from the bio reactor to the cell 8, Live cells can be recycled to the reactor, separation occurs in a gamma irritated disposable bladder and tubing system (Separation Insert) The process is three steps separation, isolation, and discharge. An inflatable barrier segregates cell rich material for the superannuant Min/Max Temp=2 -150 degrees C. (this machine has been modified with switches ,plc, and others to control temperature at an exact setpoint) Separation chamber volume 200 ml. Through put 6-120 L/Hr. Width 32.23 ", depth 46.86 ", height 67.99" Weight 640 kg

Jacketed Pressure/Vacuum Reactor with Mixer Jacket rated MAWP for 100 psi @ 338 degrees F., MDMT for -20 degrees F @ 100 psi Vessel has two zone half pipe coil jacket Mixer was a double-motion agitator with scraper blades, but has been converted to a single motion agitator with scrapers

Jacketed on shell and bottom head with 49.69 sq. ft of surface area. With Top mounted Philadelphia mixer model MT-02, 14.1 ratio, coupled to a 2 hp 3/60/230/460 volt motor,

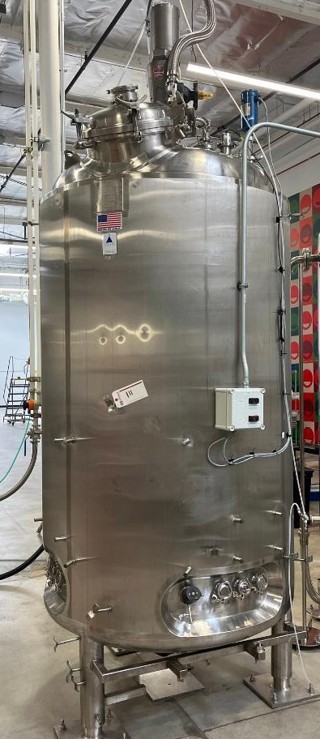

• Mirror polished Bio Reactor with conventional jacket
• TUV stamped
• Vertical top mount agitator with double stack up mechanical seal with 2 seal pots Driven agitator is a high polish helical screw ,drive motor is a Lonne, 50 Hz, 0.6 kW, 1350 rpm, 220/240vac. Motor CE certified. Jacket volume is 10 liter With six bottom side nozzles for electrodes Equipped with Spray ball(s) for Clean in Place (CIP)
• Re polished in 2009 CIP: Yes. Support Type: Legs.

double jacketed reactor CE confirm, pharma grade sanitary internal pressure rated by -1/+3.8 bar @ 0/+126 degrees C (volume 418 liter), jacket pressure rated by 3 bar @ -5/+95 degrees C (volume 9 liter), with stainless steel top mounted off set agitator type RF47DT90S2/VS 3~/50Hz/230-400V/1,410rpm with control panel..

1200 liter internal design pressure -1/6 bar @ 220 degrees C (1342 liter), Motor VS 10G 7,5 kW Motor 3/50Hz/11,4A/500V by 1440 min

• Coil Pipe Rating: 150 psi at 350 degrees F Two wraps with 12 turns 2" coils inside wrap, 12 turns 2" coil outside wrap. Estimated surface are of internal coils is 238 Sq. Ft. Estimated surface area of outer half pipe jacket is 125 sq. ft.
  Heads Thickness: 0.25"
• Half Pipe Coil Jacket Thickness: 11 Gauge.

apparatus #59-2135-54 internal design pressure 20 bar @ 115 degrees C jacket 5 bar @ 152 degrees C (17 liter) straight side and bottom dish insulated and cladd with stainless steel

Polymerization reactor with closed lid design complete with condenser conventional jacket on bottom head Weight 48000 kg.
This reactor can be purchased with a 188.32 m2 316LSS tube side condenser for an additional 50,000 Euros. It is designed to mount directly to a top opening nozzle. See IPP # 222792 for condenser details.

TUV Certified internal pressure -1/6 bar @ 200 degrees C (1666 liter) jacket -1/20 bar @ 200 degrees C (60 liter) straight side and bottom dish ancillaries such as valves, filters, pipework etc may be available

316Ti (1.4571) stainless steel jacket on lower half of the straight side and bottom dish internal pressure -1/6 bar @ 200 degrees C (1600 liter), jacket 6 bar @ 200 degrees C (170 liter) TUV certified
