Nash SC2SS Vacuum pump, with vapor recovery system Test # 90Y002 The system includes the following equipment; a vacuum pump, two heat exchangers, a separating tank, and seal pots. The direct drive vacuum pump, is manufactured by Nash, size SC2SS, Pos. 4 ,Vac, rated 200 cfm @ 5-20" Hg. The vapor exchanger is a 30 sq. ft., all 316 SS, horizontal heat exchanger manufactured by Industrial Process Equipment corp., Model # 2ST8-60, Serial # 105-641A National Board # 988 It’s shell and tubes are rated for 150/FV The condensate chiller is a 10 sq.ft., 316SS tube bundle, 316SS heads, with CS shell, horizontal heat exchanger and is also manufactured by Industrial Process Equipment Corporation. Serial # 1056413, and National Board # 989, Rated for 150/FV psi in the shell and tubes. The dual seal pot arrangement, with Nitrogen purge is provided by Duramettalic, Canada/Condex Heat Transfer Corp. Serial # 91-3-4146 & 4179, and rated for 400 psi at 400 degrees F. Both have level sight glasses and N2 purge line with regulator and Liquid make up valves. The units 316 SS separator, is manufactured by Jenco, Serial # 91-1327, National Board # 525, and rated for 30/FV at 350 psi. The separator tank also has a liquid level sight glass. The vapor inlet line is 4" flanged, and separator outlet is 1”. Automatic valves for liquid flow control are provided by Fisher and El-O-Matic, and the vapor contact piping is 316 SS. System includes all DP cells, RTD temperature probes, and pressure gauges. Designed to be used in a hazardous atmosphere, skid has a 60 amp Square D breaker, and explosion proof switches and controls.

Niro (Bowen Design) Spray Dryer With BB-3 Type Spray machine Conical Bottom drying chamber is 12' diameter x 6' 7" straight side, and utilize a co current air flow design. Elevation to top of dryer is 25' 7". This is a complete system with the spray dryer and bag house mounted out doors. Feed related equipment is mounted indoors on a skid. Dryer details are as follows: Supply air; 1385 acfm. Natural gas; 27.9 acfm. Feed; 1725 lbs/hr. Product 525 lbs/hr. Evaporation rate 1200 lbs./hr. Process gas inlet temp. = 1100 degrees F. BB-3 spray machine with complete controls including a Penthouse control panel, feed valve, automatic force oil lube system by Sloan Brothers, and Magnetek GPD 505 VSC variable motor speed system. Bag house is manufactured from 321 SS, rated for 400 degrees F, with an air volume of 1850 scfm, and air to cloth ratio of 3.9:1. Blower is CS, by New York blower, series 45, size 224 and rated for 3000 cfm at 3127 rpm. Other support equipment includes a 400 gallon, fiberglass mixing feed tank, and related pumps. Auto valves are by Fischer, instrumentation is by Rosemount.

• CS, with rubber lining, Vapor Body, with Alloy support accessories, forced circulation crystallizer, part of a Zero Discharge System (ZLD). The system's major equipment consists of a shell and tube evaporator heater, Vapor body, recirculation pump and centrifuge. Rated for 50 GPM flow10% moisture) and consumes 20 psi steam at 25,00 lbs./hr. Following is a short process description: The feed from Brine Evaporator enters the recirculation piping above the recirculation pump. The feed is mixed with recirculating brine slurry and pumped through the heater where it increases in temperature and is sent to the vapor body. The hot brine flashes down to the saturation pressure inside the vessel, producing vapor and the cycle is repeated. Crystals are formed continuously in crystallizer vapor body and have to be removed. Concentrated product is removed from the system, passed through a centrifuge to remove the solid crystals and is returned to the evaporator recirculation line. The crystals are sent to a landfill. Vapor from the crystallizer is sent to a small barometric condenser using cooling water to condense the vapors. Condensate is mixed with incoming cooling water and is discharged back to the cooling tower. Vent from the condenser is vented by a CS ejector, through a silencer, and out to the atmosphere. Prime condensate from the condensed plant stream is sent back to the primary feed heater to assist in heating incoming Brine Evaporator feed. The following are main components of the system: Stock #228100- crystallizer heater is 5,700 Ft2 of surface area, with 1040 straight tubes, 1.25”OD x 0.028” wall thickness x 12 Feet long, and are constructed of Titanium. The tube sheets are SS316 Ti clad. Heads are made of SS alloy AL6XN & Shell of SS316L. The Crystallizer stock # 228156 is 16’ Dia. x 30’ Overall Height with 60” cone bottom. It is made of rubber lined Carbon steel. (the crystallizer vessel was removed , we have a drawing so a new vapor body can be constructed.) The Crystallizer recirculation pump, stock #228104 is 19,000 GPM with 150 HP motor and fabricated from SS alloy. The centrifuge stock #228101 is Bird Bowl type, 24" diameter x 38" long, rated for 18,304 Lbs./hr. with SS316L contact parts, 30 HP Motor with SS alloy product contact parts.

• Designed to mount on top of a reactor.
• Can use any type of packing.

(Two SPDU's) product contact, complete Short path distillation plant. This unit was previously used to process 300 lbs/day of product. The system consists of two, 0.1 m2 short path distillation units, three cold traps, six hold up receivers, and a degassing column with a pre heater. All equipment is piped and mounted in a steel framework, including all pumps, vacuum pumps, heater, valves, and controls. This process system has the following attributes: Can operate up to 340 degrees C, It is capable of vacuum to 0.01 mbar. , has a short resonance time, is good for heat sensitive products and hazardous materials, is suitable for viscous products, and has an excellent turn down capacity. Product contact surfaces are finished to 0.62 um RA The process piping and hold up tank are jacketed. The cold traps feature double coils for hot and cold brine. The system includes all process pumps and vacuum pumps. Primary and secondary heaters are supplied by Sterling. Chillers are supplied by Micro Therm.

Documentation shows Mills but we did not get some of them. With spare product containers. (read below) 60 kg Explosion shock resistant fluid bed dryer. Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration and drying Model - MP2/3-K2-F1/2 Rated for Maximum absolute pre pressure of 11 bar and Maximum explosion over pressure of 12 bar Total volume 610 liters typical working volume is 18-160 liters based on the allowable product density of 1500 kg/m This fluid bed dryer was designed for Pharmaceutical service and features sanitary design and clean in place With wet and dry loading ports, internal lighting, and sample ports Designed for liquid/binder addition, it includes the Peristaltic transfer pump. This dryer is part of a contained system, product never reaches outside the unit. It is also integrated to work with products upstream and downstream. Designed for easy and quick cleaning and changeovers, the clean in place and all the operations are completely automated, and can be controlled at a local operator station Air handling is achieved with a custom manufactured unit by ZAir, Type SKG-4,2 507-68273-1 Manufactured of 304 SS construction, it’s rated for 130-670 m3/Hr. at 20-80 degrees C This unit handles all the air heating, cooling, and humification duties The Main fan is driven by a 12.7 kW AC motor, and it also has a HEPA filter This unit is complete with all filters, and accessories High shear granulator available (IPP Stock # 233967. This unit also has spare product containers. Product containers are FBP 07304A.FBP101, # 001, built 2019, with Product container trolly. FBP 07304A.FBP101, # 002, built 2019, with Product container trolly. FBP 07304A.FBP101, # 003, built 2019, with Product container trolly Unit comes with one product container, all other additional equipment is available at an additional cost Explosion-Shock Resistant: Yes.

Intermittent type Attritor. Szegvari Size 1, Bench top size. Electronic variable speed control.

Shell 6' diameter x 20" straight side x 4' long conical sections With vacuum arm.

Intermittent type Attritor Szegvari Attritor System Size 1S Bench top size, with a Reeves Vari -drive rated for 276 through 2000 rpm Mixing shaft belt driven chrome plated mixing pot for 0.8 gallons working capacity with jacket for cooling or heating This mixer is designed for media size of 1/8” through 3/8” Hardened 304 SS tool steel mixing shaft Standard mixing arm pinned to shaft which means this machine is designed for ease of shaft or arm change Multiple options for mixing shafts, types of mixing chambers, lids, etc

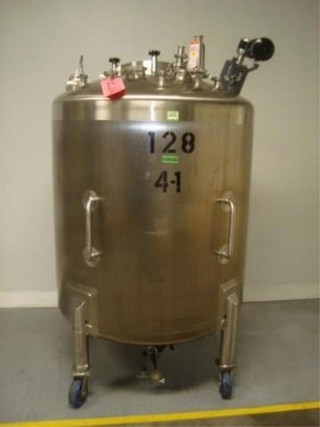

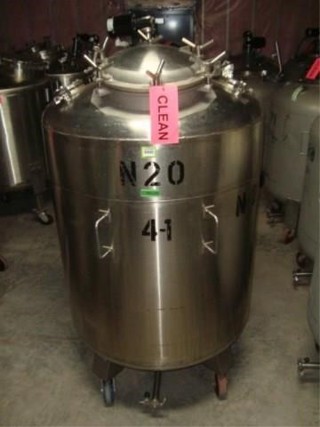

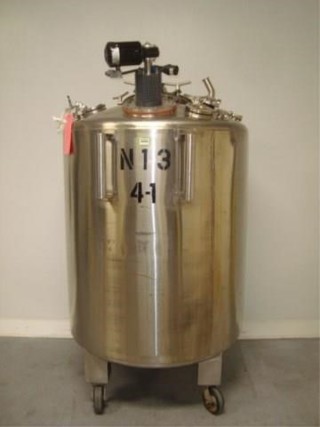

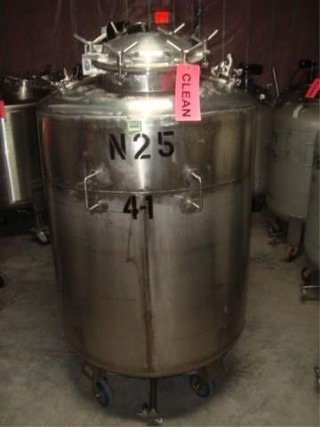

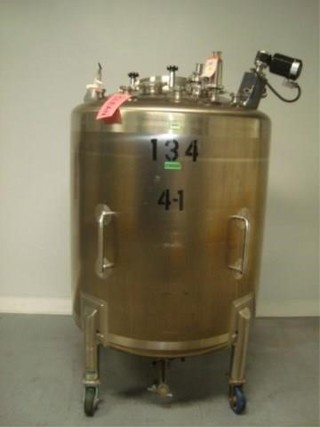

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

• Sanitary caster-mounted portable mixing tank.
• Internally passivated with nitric acid.
• With handles mounted on tank straight side.
• With bottom Asepco TF-15-200 sanitary valve.

20 kg typical batch weight (Polished to a 0.1 Ra Min finish) high shear granulator Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration Standard capacity range is 24-48 liters This granulator features a through the wall design where the utilities are located outside the clean room It has a jacket for the base and bowl with temperature sensor and ¾” BSP connections The loading chute and is 4” CPC and designed for Hyco Flex loading. The main impeller is an M-8 and is capable of being raised and lowered The side chopping system is driven by a 4-kw motor with variable speed control. The discharge and transfer chute is 2” CPC. Discharge is into a through the wall mill, Comil, model U-10, with a 0.1 Ra finish. The mill is driven by a 1.8 k-w motor with variable speed control. The Granulator features sanitary design and features clean in place. It has the ability for solutions addition, and is fully automated. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. It is designed for rapid change overs and easy cleaning. This machinery is electronically controlled and can be operated by a local operations station. The Advance 60 mill can be part of an integrated system with upstream and downstream equipment. This mill can be used with Fluid bed dryer IPP stock # 233966. And a CIP skid is available at additional cost, see IPP stock number 234966.

• This one probably requires a lot of work
• 223 sq. ft. of heat area on the agitator 102 square feet on the jacket
• Original design speed 10 rpm Pitch angle of agitator is 1 degree
• Trough width is 30"length is 218"with 62.1 cu ft of operating capacity
• product discharge is drive side bottom
• 30" high x 14" wide Plate coil jacket on exterior of trough manufactured by Dairy Equipment CS construction rated for 150 psi at 650 degrees F(SN # 15914-3 built 1991)Agitator is sealed by packing, has a rotary joint type SNH One lid is available, unit requires 4
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

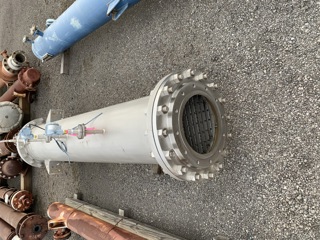

• Type: knock out pot
• Customer: Nash Kinema Vessel designed for non-lethal and non-corrosive service.

300 kg/Hr, recovered VCM stripping system, designed to stripping unreacted VCM from PVC slurry process reducing vent gas to less than 1 ppm VCM. This system is EVC Technology, and can be used to strip volatiles from a variety of liquid processes like waste water. Used in a 15 ton/Hour maximum dry PVC production line. VCM stripper system includes: 1355 mm diameter x 15780 mm high, SAF 2507 VCM stripping column system with support equipment. Column manufactured by Mechannica Sarda, Rated 1.2 bar/FV @ 110 degrees C. 23,500 liters. Weight 5000 Kg. System includes: (1) 76 square meter 316L stainless steel tube, 304 stainless steel shell and carbon steel head vertical heat exchanger. Manufactured by Ravagnan SpA. fabrik #5086, design pressure tube side 7.84 + vacuum @ 150 degrees C (534 liter), shell 6 bar @ 100 degrees C (370 liter), (305) 20mm diameter x 1.6mm x 4050mm long 316L stainless steel tubes. Shell is 6mm thick. (2) carbon steel bonnet head, 489mm diameter shell, 5635mm overall height, mounted on lugs, (1) Approx. 93 Square meter stainless steel process side spiral condenser, (1) 2700 liter 316 stainless steel vertical separator vessel, manufactured by O.C.S, pressure rated 3 bar + vacuum @ 149 degrees C, 1.4m diameter x 1.3m straight side, weld dished top and bottom, mounted on legs, miscellaneous stainless steel receivers and centrifugal circulating pumps.

300 kg/Hr, recovered VCM stripping system, designed to stripping unreacted VCM from PVC slurry process reducing vent gas to less than 1 ppm VCM. This system is EVC Technology, and can be used to strip volatiles from a variety of liquid processes like waste water. Used in a 15 ton/Hour maximum dry PVC production line. VCM stripper system includes: 1355 mm diameter x 15780 mm high, SAF 2507 VCM stripping column system with support equipment. Column manufactured by Mechannica Sarda, Rated 1.2 bar/FV @ 110 degrees C. 23,500 liters. Weight 5000 Kg. System includes: (1) 76 square meter 316L stainless steel tube, 304 stainless steel shell and carbon steel head vertical heat exchanger. Manufactured by Ravagnan SpA. fabrik #5085, design pressure tube side 7.84 + vacuum @ 150 degrees C (534 liter), shell 6 bar @ 100 degrees C (370 liter), (305) 20mm diameter x 1.6mm x 4050mm long 316L stainless steel tubes. Shell is 6mm thick. (2) carbon steel bonnet head, 489mm diameter shell, 5635mm overall height, mounted on lugs, Approx. 93 Square meter stainless steel process side spiral condenser, (1) 2700 liter 316 stainless steel vertical separator vessel, manufactured by O.C.S, pressure rated 3 bar + vacuum @ 149 degrees C, 1.4m diameter x 1.3m straight side, weld dished top and bottom, mounted on legs, miscellaneous stainless steel receivers and centrifugal circulating pumps.
